DAS Event 210A-218A Bundle for 800 People

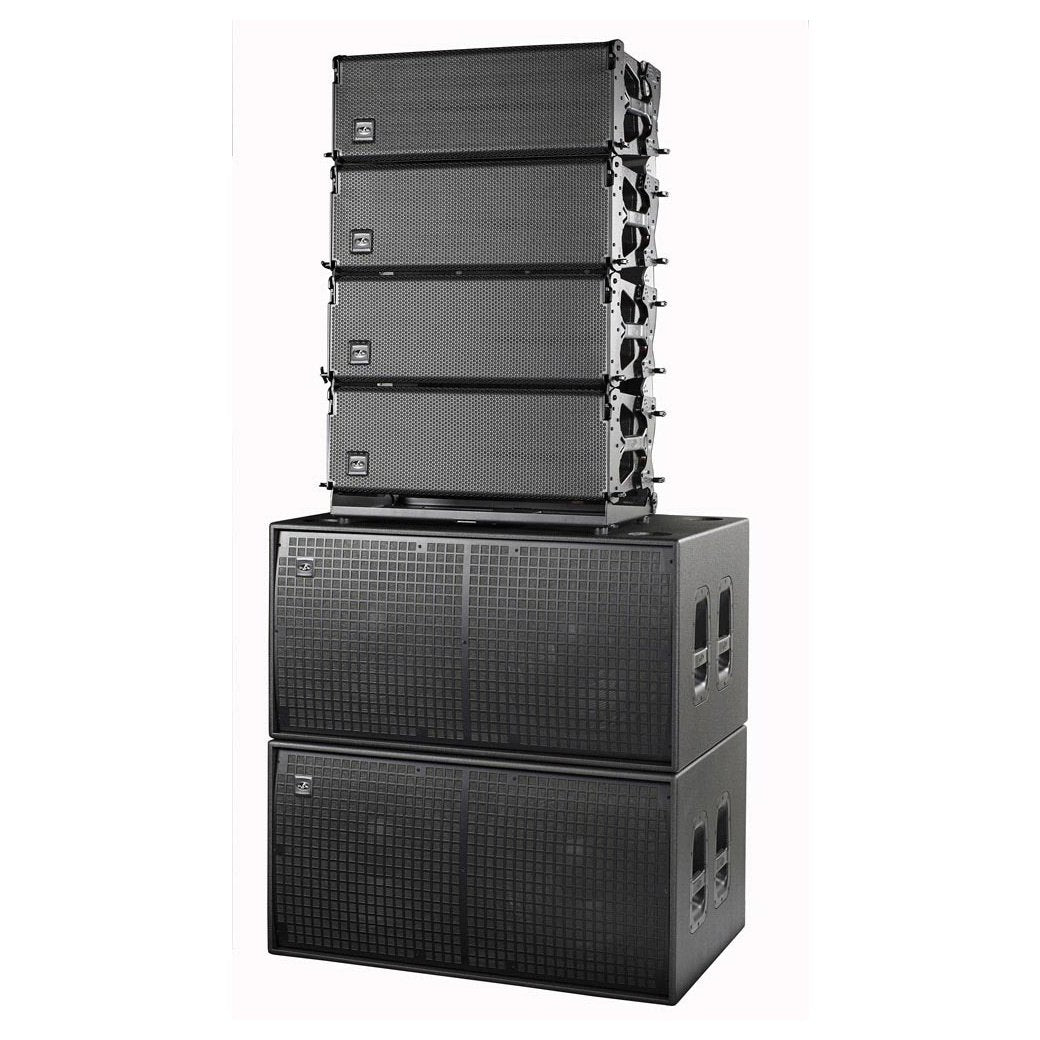

This bundle for 800 people includes:

• DAS Event-210A (4)
• DAS Event-218A (2)
• DAS AX-EVENT210 (2)
• Cables PROS3-MIC (3)
• Cables PROS10-MIC (2)

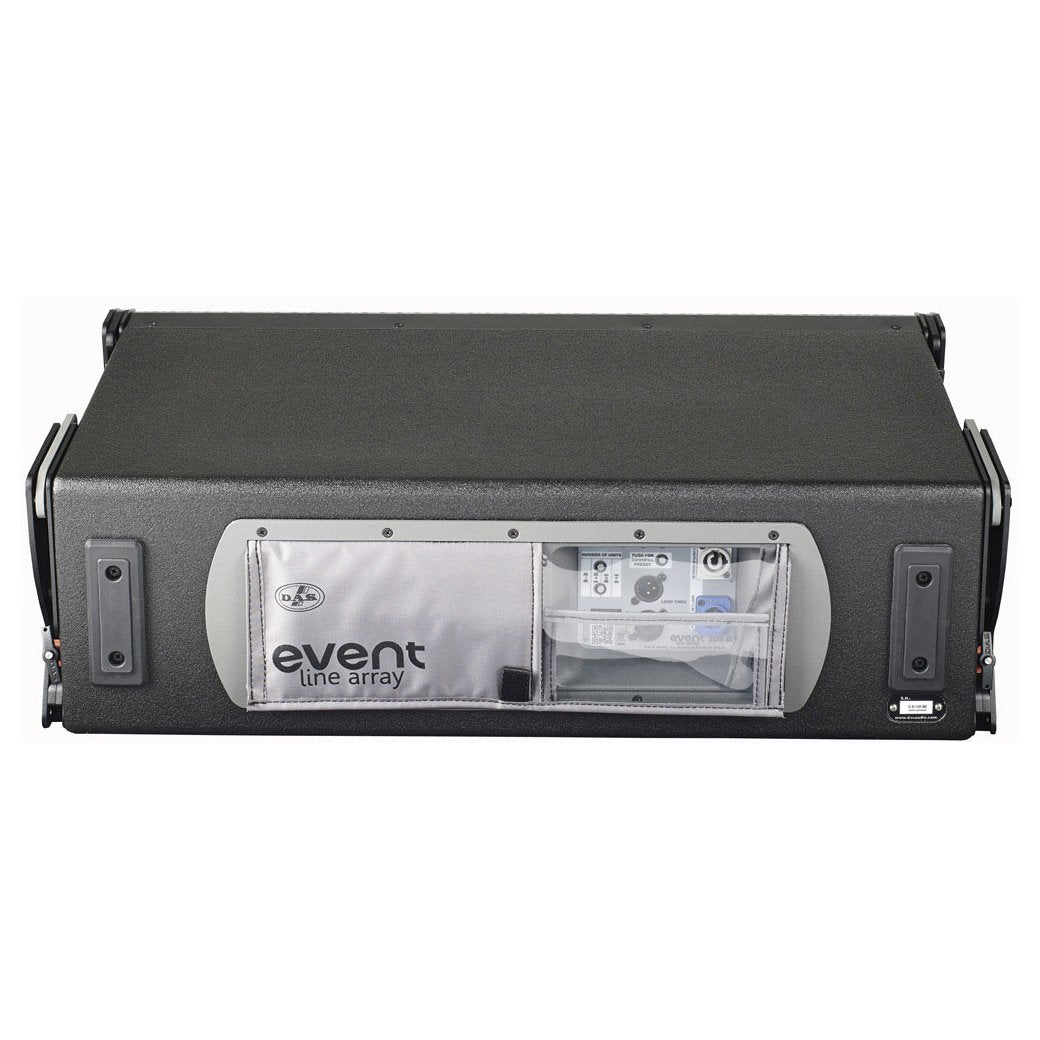

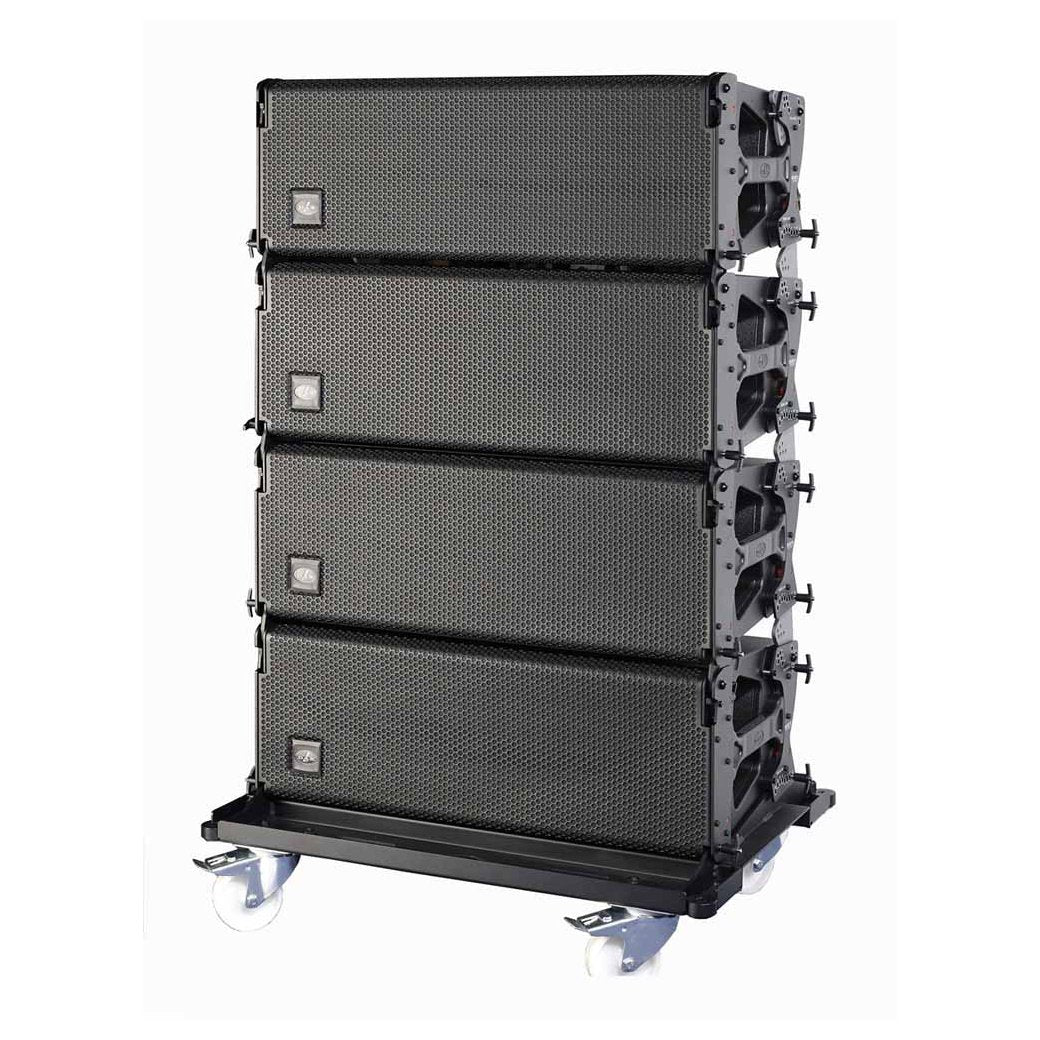

The Event 210A is a three-way amplified line array system with two 10” speakers in a “dual-band” configuration, which provides a wider frequency range. D.A.S. They are combined with an M-75 compression engine and an onDAS guide for specific high frequencies of injected aluminum. The Event 210A line array incorporates a Class D three channel amplifier that provides 360W peak per channel. The amplifier's rear panel includes Neutrik®, XLR and powerCON quality connectors. Status LEDS facilitate adjustment and Easy-DSP ™ communication system from D.A.S. simplifying the selection of the readjustment for the number of units and the depth of shot.

The 3-way amplified Class D system is very lightweight with high-end DSP components with an Easy-DSP ™ configuration system with high-quality Neutrik® connectors and high-quality birch enclosure. It is manufactured with an ISO-flex high durability finish and a professional fast-flying system. It comes with an injected HF guide of injected aluminum and M-75 compression motor and D.A.S.

Specifications:

• Nominal Power Amplifier LF: 360 Wpeak
• Nominal Power Amplifier MF: 360 Wpeak
• Nominal Power Amplifier HF: 360 Wpeak
• Frequency Response: 70 Hz -20 kHz
• Nominal Peak SPL at 1 m: 134 dB
• Horizontal Coverage (-6 dB): 90º Nominal
• Vertical Coverage: Depends Tilt Angle
• Enclosure Material: Birch Plywood
• Color / Finish: Black / ISO-flex Paint
• Connectors: Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
• Nominal Voltage: 115 V, 3.0 A, 50 Hz / 60 Hz 230 V, 1.5 A, 50 Hz / 60 Hz
• Dimensions (H x W x D): 27 x 73 x 36.6 cm 10.6 x 28.7 x 14.4 in
• Weight: 34 kg (74.8 lb)

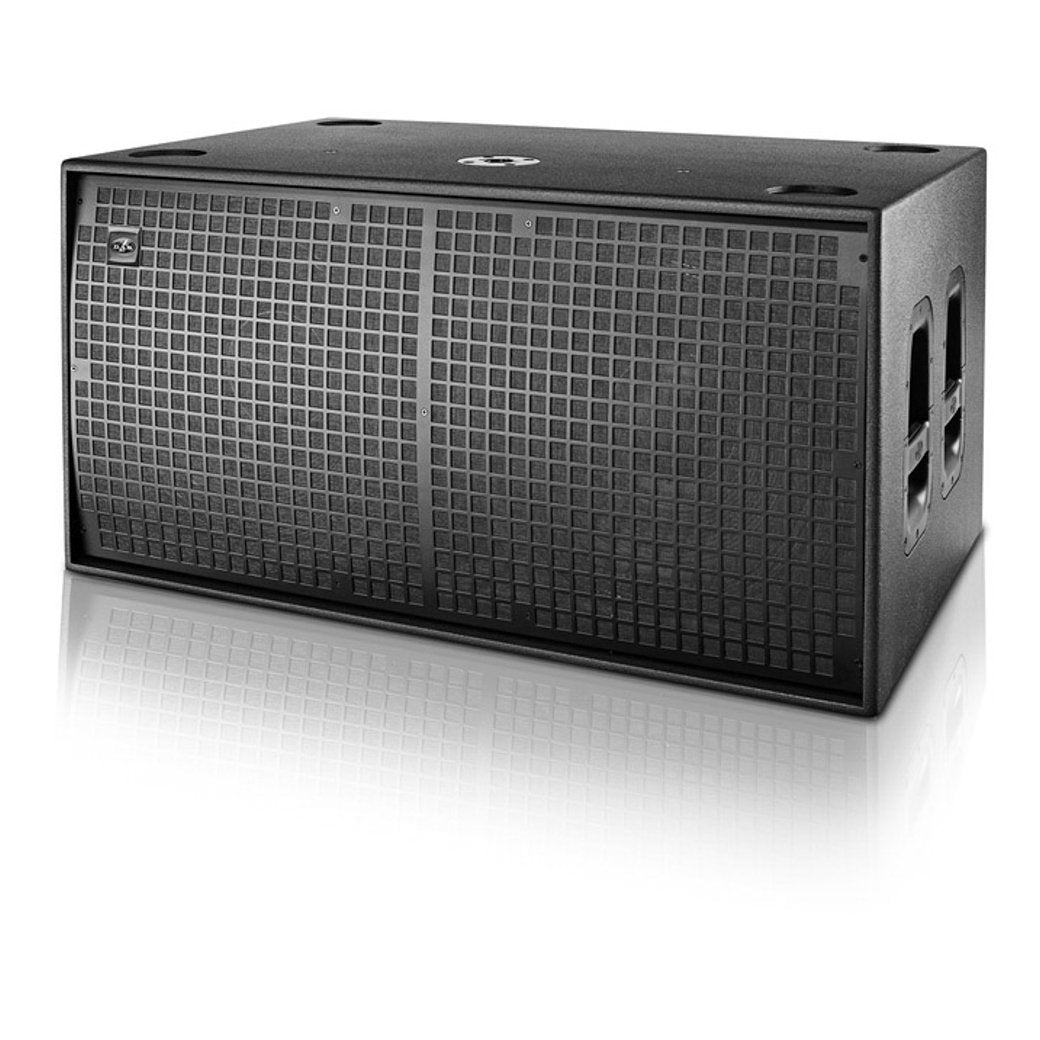

 The Event 218A with double 18” amplified subwoofer uses one of the D.A.S. most reputable, the long excursion LX series, which was introduced in the high-level subs LX-218. The enclosure is designed for horizontal use, built in quality birch plywood, finished with an ISO-flex cover and has a mast socket on the top panel.

The amplifier provides 3600W peak and offers features available in higher priced LX subwoofers such as the preset cardioid switch, which offers a specific signal treatment for system tuning in subwoofer cardioid applications. The system includes two balanced inputs (A-B) with stereo output connectors high pass filter @ 100 Hz (HPF) for satellites. With the filter off, the output connectors operate as “Loop Thru” outputs. It also has a low-pass filter (LPF) whose cutoff is variable between 80-125 Hz. A gain control and a polarity inverter (0º-180º) increase the user's control over the system.

The Event 218A system is made with a 3600W peak Class D high performance self-powered subwoofer and two 18LX speakers with 4" coils. It contains a bass-reflex configuration with a high-resistance ISO-flex black paint finish.

Specifications:

• Nominal Power Amplifier LF: 3600 W peak
• Frequency Response (-10 dB): 32 Hz - 125 Hz
• Nominal Peak SPL at 1 m: 140 dB
• Internal Crossover: 100 Hz
• Enclosure Material: Birch Plywood
• Color / Finish: Black / ISO-flex Paint
• Connectors: Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
• Nominal Voltage:0 A, 115 V, 50 Hz / 60 Hz 3.0 A, 230 V, 50 Hz / 60 Hz
• Dimensions (H x W x D): 54 x 106 x 67 cm 21.3 x 41.7 x 26.4 in
• Weight: 70 kg (154 lb)

 Model: AX-EVENT210

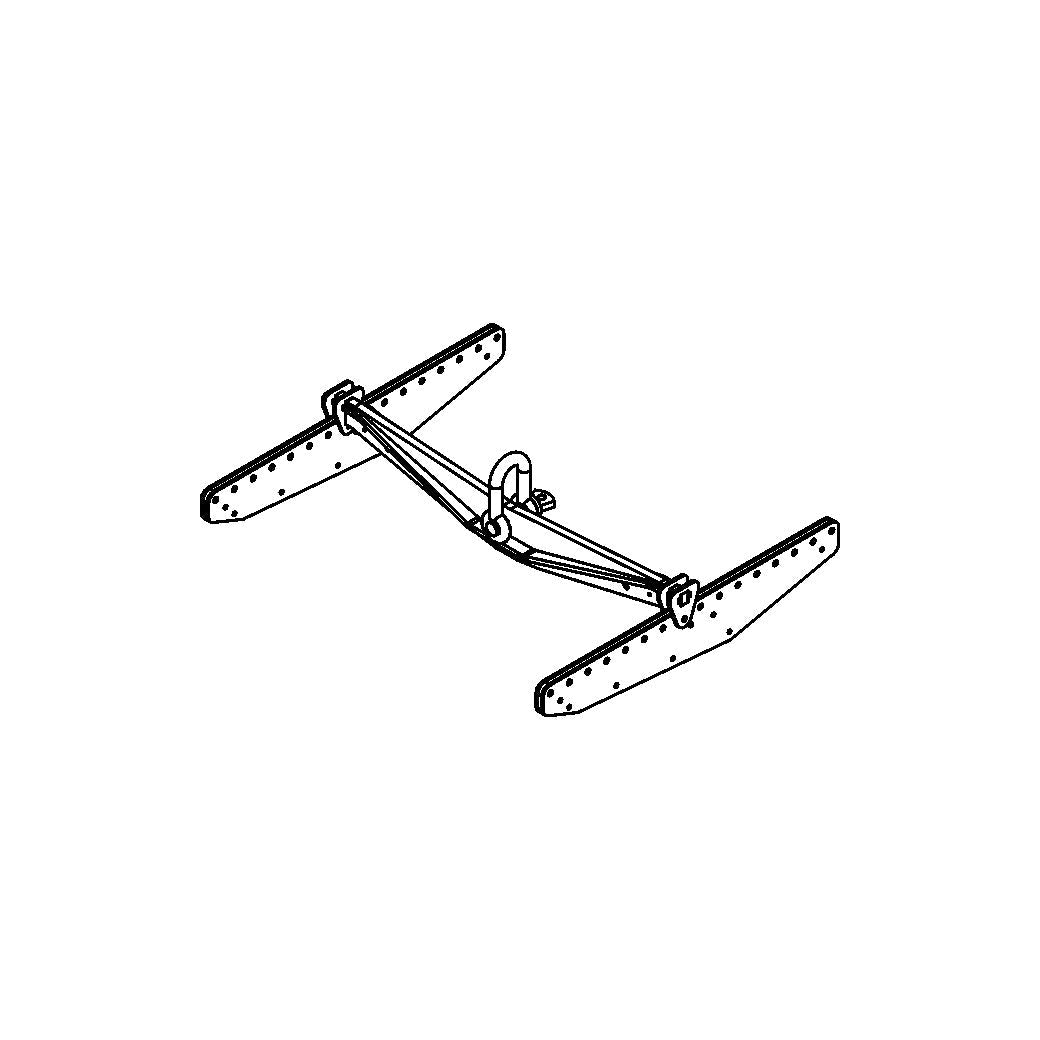

Suspension structure for Event 210A. - Flying Element. Includes pick-up bar (1), coupling parts (2) and safety pins.
