DAS Vantec Double Bundle For 500 People

Save 7%
Hermes MusicSKU: PDAS-500

Price:
Sale price$8,499.00 Regular price$9,096.00
Click or Call to Quote!

Description

This bundle for 500 people includes:

  • DAS Vantec 215A (2)
  • DAS Vantec 218A (2)
  • PROS3-MIC Cables (2)
  • PROS6-MIC Cables(2)

*CONTACT US FOR ESTIMATED SHIPPING*

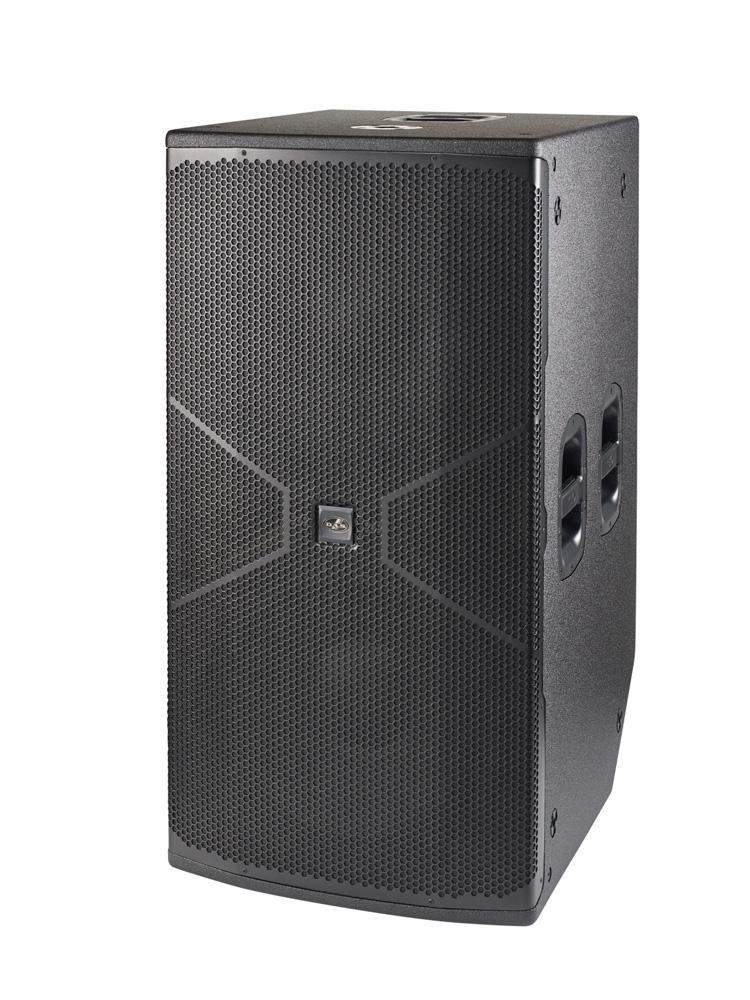

VANTEC 215A

The Vantec 215A has a double 15FV4 bass speaker for applications that require greater total SPL and a stronger response in bass, such as mobile DJs, live performances and any type of event that requires greater sound pressure.

Its three-channel amplifier offers 2250 Wpico of power and operates in a “dual-band” configuration, in which each speaker works in a specific frequency range. The impressive lightness of size and weight of the electronic package make the Vantec series amplifiers one of the lightest in the world.

Vantec self-powered systems incorporate FIR digital filters in signal processing. Users can select sound settings, filters, EQ modes and gain control, through a single command interface and LCD screen at the rear of the enclosure. The Vantec series allows users to stream music wirelessly from mobile devices.

  • Self-powered three-way system with double 15 ? speaker
  • Increase output performance
  • Ultra-light Class D amplifier with SMPS
  • User definable DSP with LCD display
  • Wireless music streaming
  • Flying Points

Specifications:

  • Nominal Power Amplifier: 2250 Wpico; Class D, Triamplified
  • Frequency Response (-10 dB): 40 Hz - 20 kHz
  • Nominal Peak SPL at 1 m: 138 dB
  • Dispersion: 90º x 50º
  • Enclosure Material: Birch Plywood
  • Color / Finish: Black / ISO-flex Paint
  • Connectors: Input: Female XLR; Aux In: 1/8 "(3.5mm) Mini; Loop Thru: Male XLR; AC Input: powerCON
  • Nominal Voltage:0 A, 115 V, 50 Hz / 60 Hz; 1.5 A, 230 V, 50 Hz / 60 Hz
  • Dimensions (H x W x D): 108 x 44.4 x 50.2 cm; 42.5 x 17.5 x 19.8 in
  • Weight: 41 kg (90.2 lb)

VANTEC-218A

The Vantec 218A is a self-powered subwoofer system designed to provide a broad bass response for wide-ranging Vantec enclosures. A powerful amplifier sends the signal to two long-excursion speakers D.A.S. 18LX, which incorporate 4 ? coils and robust magnetic structures for handling large powers and impressive response.

The Vantec 218A amplifier is Class D and has a switching power supply and a power range of 4000 Wpico. The system includes two balanced inputs (A-B) with stereo high-pass filter (HPF) output connectors for satellites. With the filter off, the output connectors operate as “Loop Thru” outputs. It also has a low-pass filter (LPF) whose cutoff is variable between 80-125 Hz. A gain control and a polarity inverter (0º-180º) increase the user's control over the system.

The compact enclosure of the Vantec 218A is made of birch plywood and has a high-strength finish with high durability ISO-flex black paint. The handles located on the sides and the back of the enclosure, attached to the two wheels located at the rear facilitate transport. The powder coated steel front grille protects the D.A.S.

  • Self-powered subwoofer system
  • 4000W peak Class "D" amplifier
  • Presets EQ: Deep, Loud Filtered satellites outputs
  • Gain control, polarity inverter
  • Front logo switch on / off
  • Flying points

Specifications:

  • Rated Power Amplifier LF: 4000W peak Class D
  • Frequency Response (-10 dB): Loud: 35 Hz - 125 Hz; Deep: 30 Hz - 125 Hz
  • Nominal Peak SPL at 1 m: 140 dB
  • Enclosure Material: Birch Plywood
  • Color / Finish: Black / ISO-flex Paint
  • Connectors: Audio INPUT: 2 x Female XLR; LOOP THRU Audio: 2 x Male XLR; AC INPUTpowerCON; AC OUTPUT: powerCON
  • Nominal Voltage: Universal Network; 6.0 A, 115 V, 50 Hz / 60 Hz; 3.0 A, 230 V, 50 Hz / 60 Hz
  • Dimensions (H x W x D): 106 x 54 x 67 cm; 41.7 x 21.3 x 26.4 in
  • Weight: 72 kg (158.4 lb)
