This DAS Altea bundle includes:

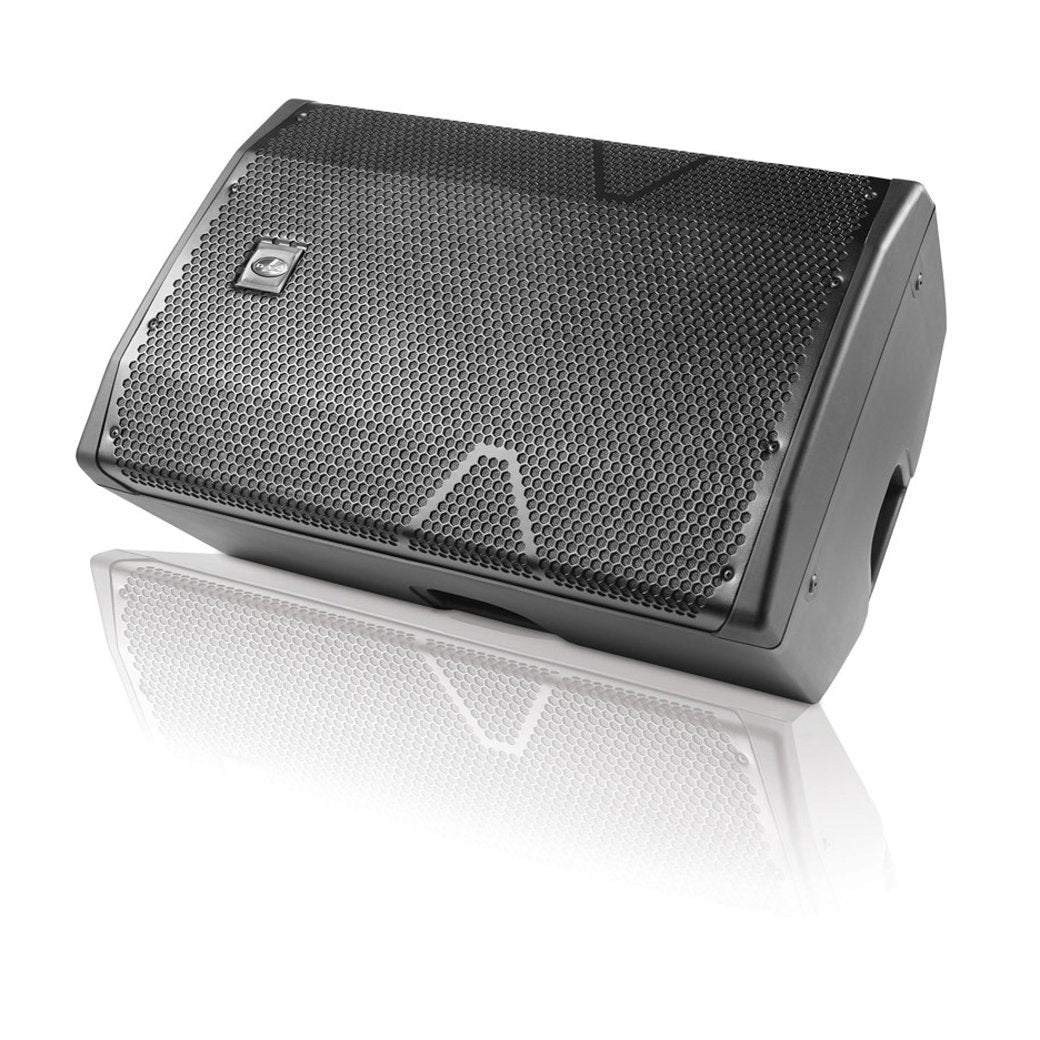

The ALTEA-415A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

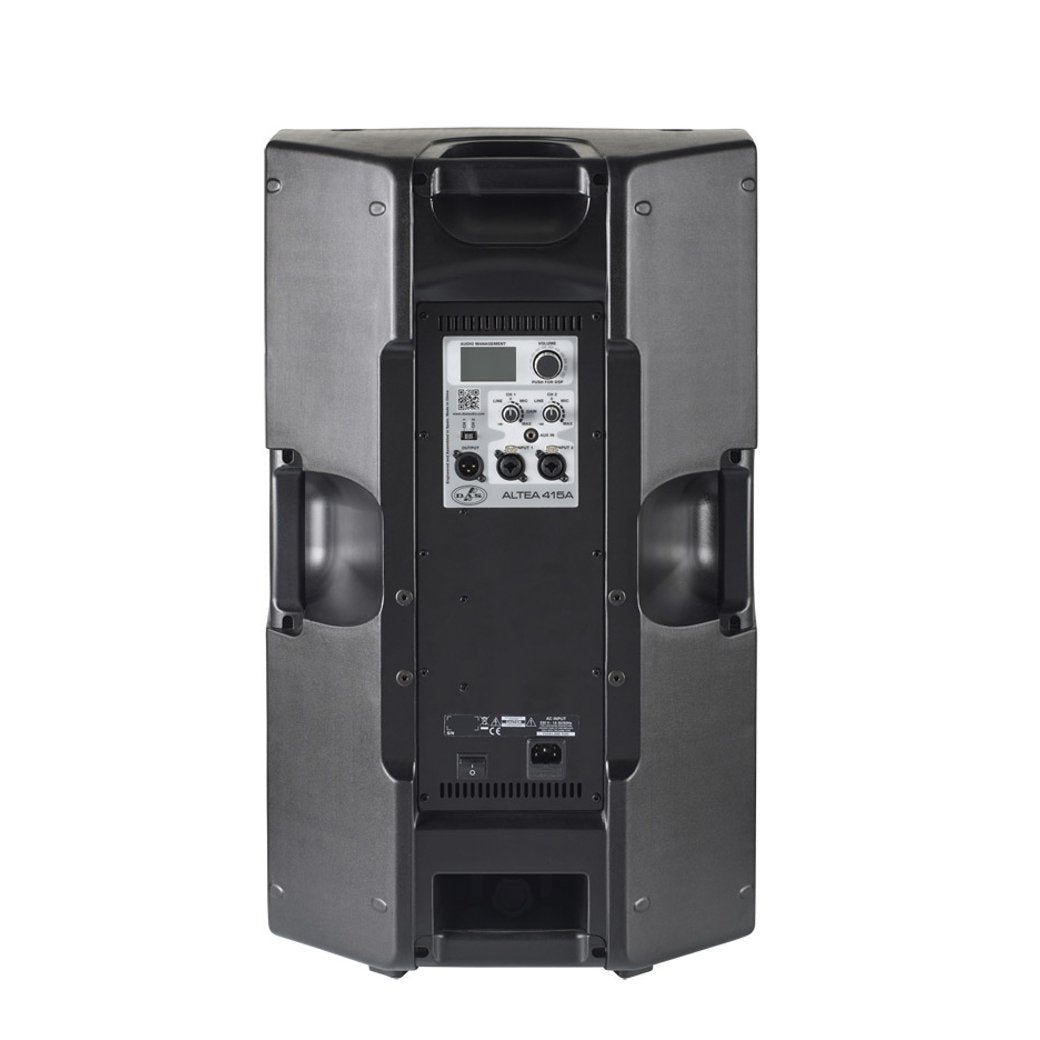

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-415A system. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 15MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance

CHARACTERISTICS

• Amplifier Power: 800 Wpeak Class D-Bi-amplified
• Frequency Range (-10 dB): 50 Hz - 20 kHz
• Rated Peak SPL at 1 m: 128 dB
• Dispersion: 90º x 60º
• Enclosure Material: Polypropylene
• Color/Finish: Black/Textured
• Connectors: INPUT: Female XLR; LOOP THRU: Male XLR; AC INPUT: Male IEC
• AC Requirements: 2.4 A, 115 V, 50/60 Hz; 1.2 A, 230 V, 50/60 Hz
• Dimensions (H x W x D): 71 x 44 x 38 cm; 28 x 17.3 x 15 in
• Weight: 19.3 kg (42.4 lb)

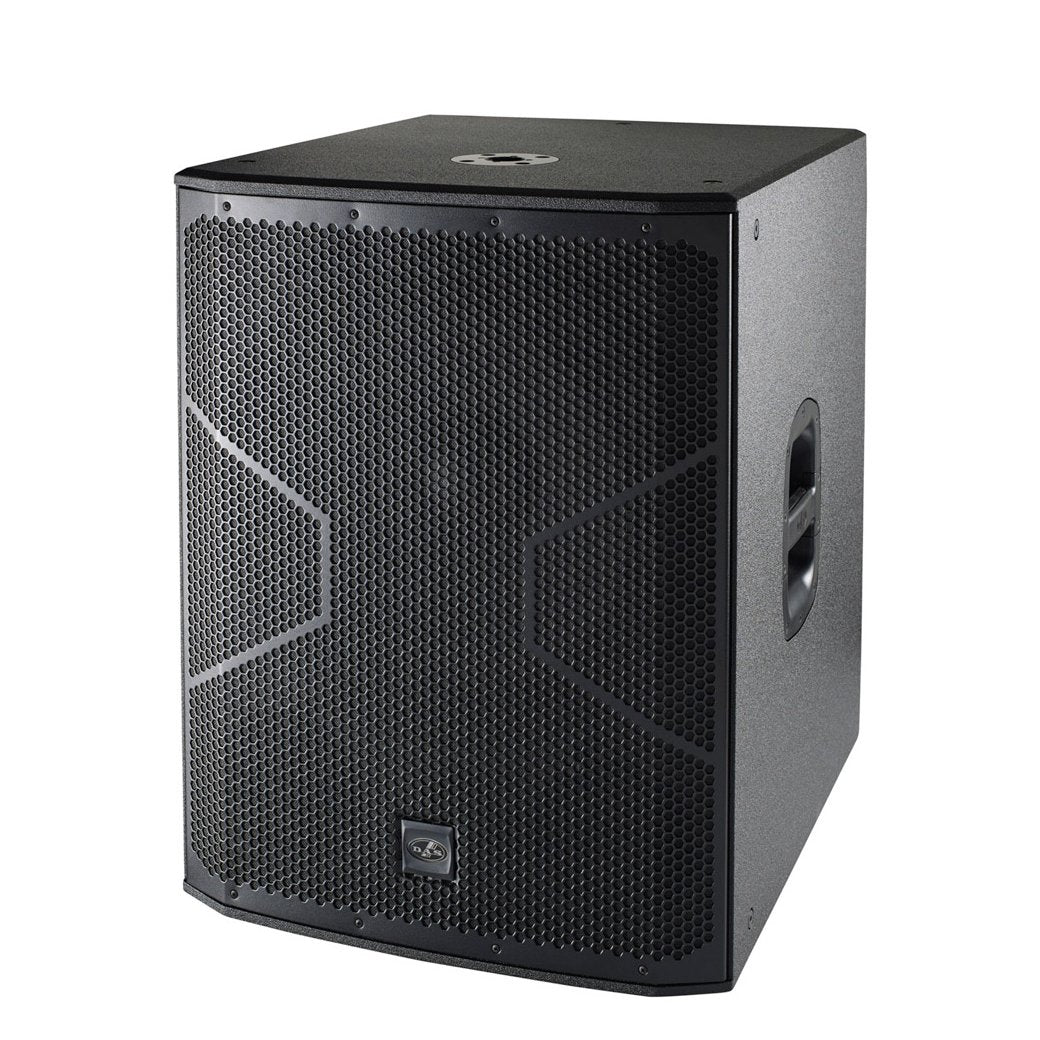

The Altea-718A is a self-powered subwoofer system designed to provide extensive bass response for wide-ranging Altea systems. At the heart of the system is a DAS 18FW4 bass speaker. This speaker incorporates a high efficiency design using FEM analysis and a 3" coil for long excursion. The cooling of the 18FW4 is guaranteed by means of a ventilated pole and abundant openings in the back plate of the speaker, maintaining a reduced compression of power while providing a great acoustic response during long periods.

To move the DAS 18FW4 speaker we find an innovative Class D amplifier with dual channel and 1200 W peak. On the rear panel there is a balanced input connector and stereo “loop thru” output connectors for Altea satellite systems. Thanks to the digital presets accessible on the back of the system through the DAScontrol ™ interface, the combination of Altea systems is facilitated.

The Altea-718 is the passive version for use with external amplification and DSP.Self-powered bass system

• Lightweight Class D amplifier with SMPS
• 18" high efficiency speaker
• DAScontol ™ interface for easy assembly and adjustment
• 24-bit DSP with LCD display
• Flying points and integrated mast socket

CHARACTERISTICS

Model: PROS10-MIC
