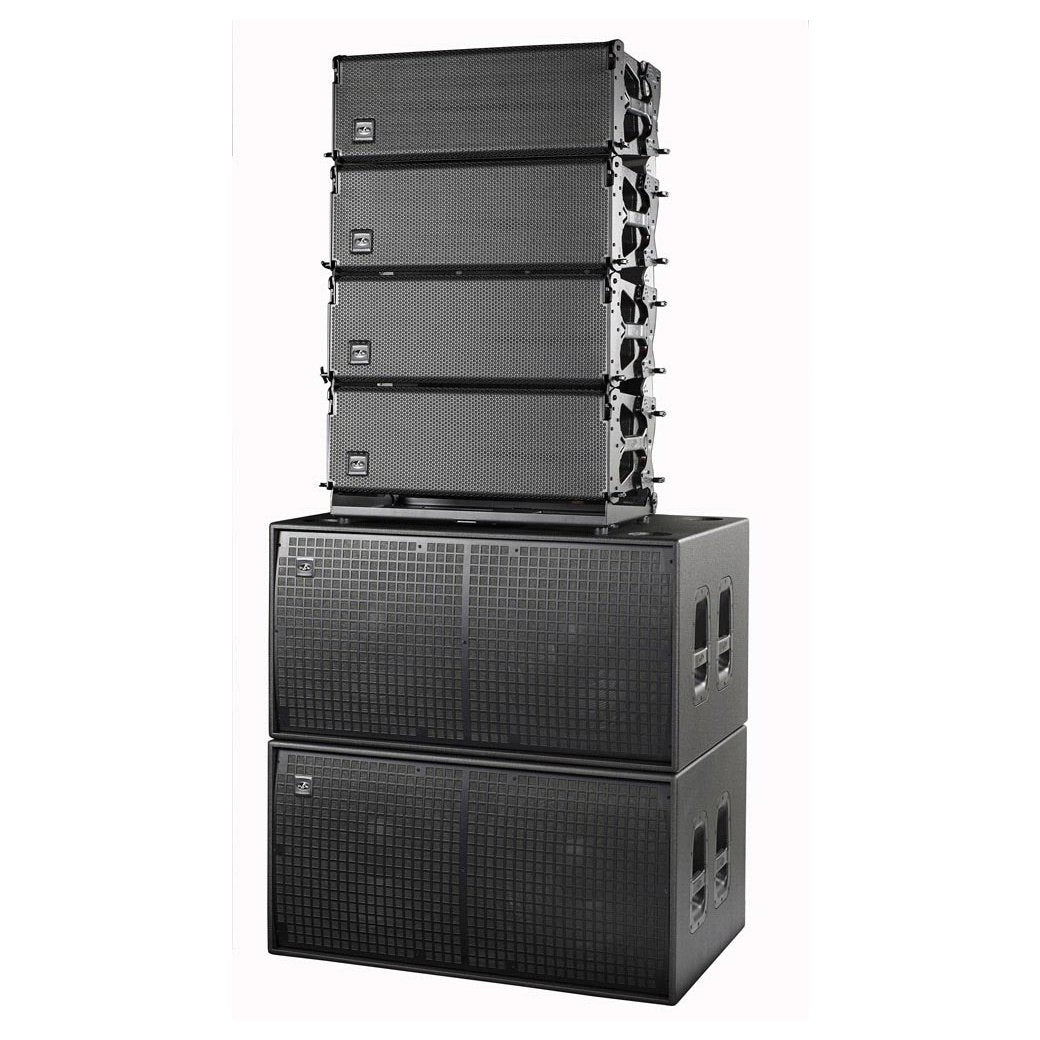

This DAS Event package incldues:

• DAS Line Array Event-208A (8)
• DAS Double Subwoofer Event-218A (4)
• DAS Stacking Support AXS-EVENT208 (2)
• PROS3-MIC (6)

• PROS6-MIC (2)

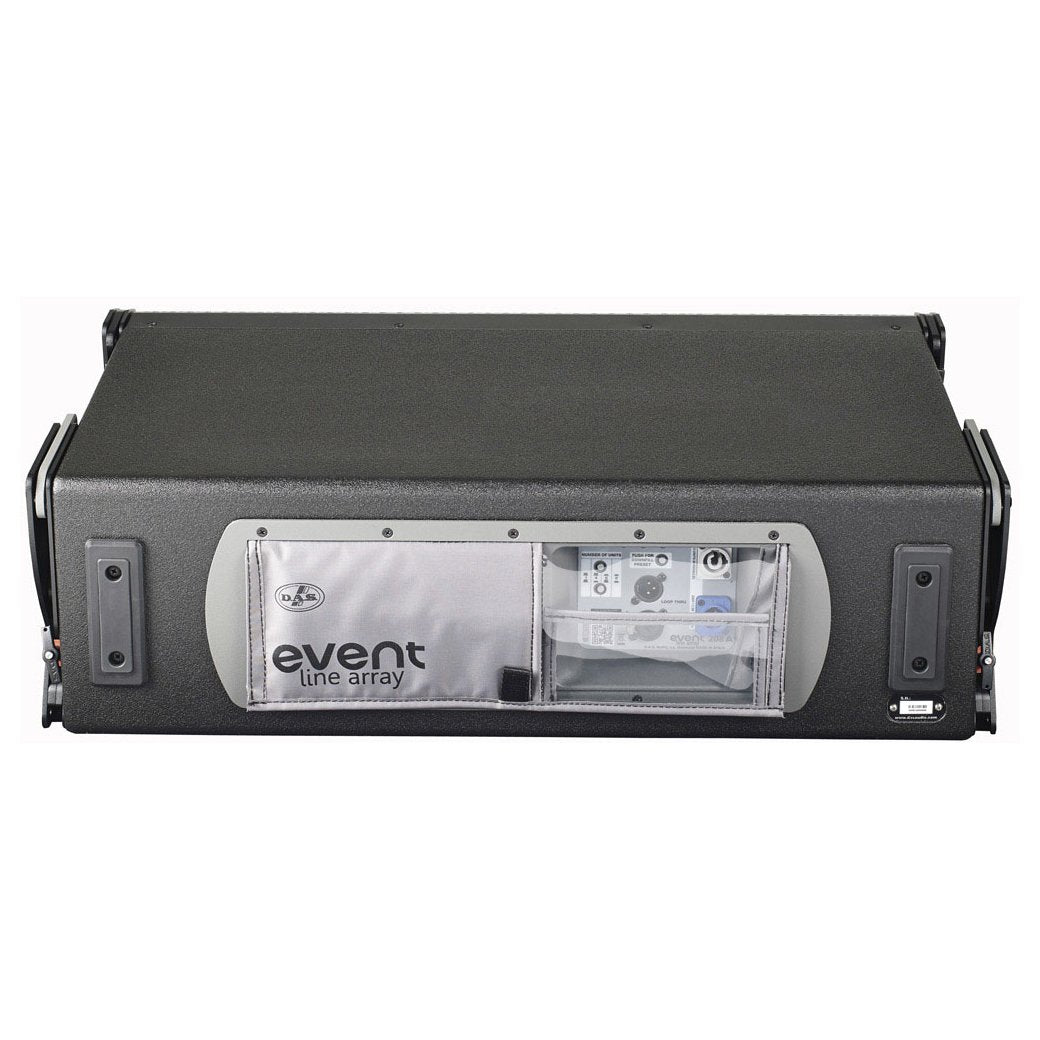

The Event 208A is a self-amplified three-way line array system with an 8 ”dual speaker. The speakers are combined with an M-75 compression engine and an onDAS guide for specific high frequencies of injected aluminum. The Event 208A line array incorporates a three-channel Class D amplifier that provides 360 Wpeak per channel. The amplifier's rear panel includes Neutrik®, XLR and powerCON quality connectors. Status LEDS facilitate adjustment and Easy-DSP ™ communication system from D.A.S. Simplifies the selection of the pre-setting for the number of units and the depth of shot.

---

The 3-way self-amplified system comes with a very light Class D amplifier. Comes high-end DSP components with an Easy-DSP ™ configuration system. Contains high-quality Neutrik® connectors and high-quality birch enclosure with an ISO-flex high durability finish with a professional fast-flying system. Manufactured from an injected HF guide of injected aluminum with an M-75 compression motor and D.A.S.

CHARACTERISTICS

• Nominal Power Amplifier LF: 360 Wpeak
• Nominal Power Amplifier MF: 360 Wpeak
• Nominal Power Amplifier HF: 360 Wpeak
• Frequency Response: 75 Hz - 20 kHz
• Nominal Peak SPL at 1 m: 132 dB
• Horizontal Coverage (-6 dB): 90º Nominal
• Vertical Coverage: Depends Tilt Angle
• Enclosure Material: Birch Plywood
• Color / Finish: Black / ISO-flex Paint
• Connectors: Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
• Nominal Voltage: 115 V, 2.6 A, 50 Hz / 60 Hz 230 V, 1.3 A, 50 Hz / 60 Hz
• Dimensions (H x W x D): 27 x 67 x 36.6 cm 10.6 x 26.4 x 14.4 in
• Weight: 30 kg (66 lb)

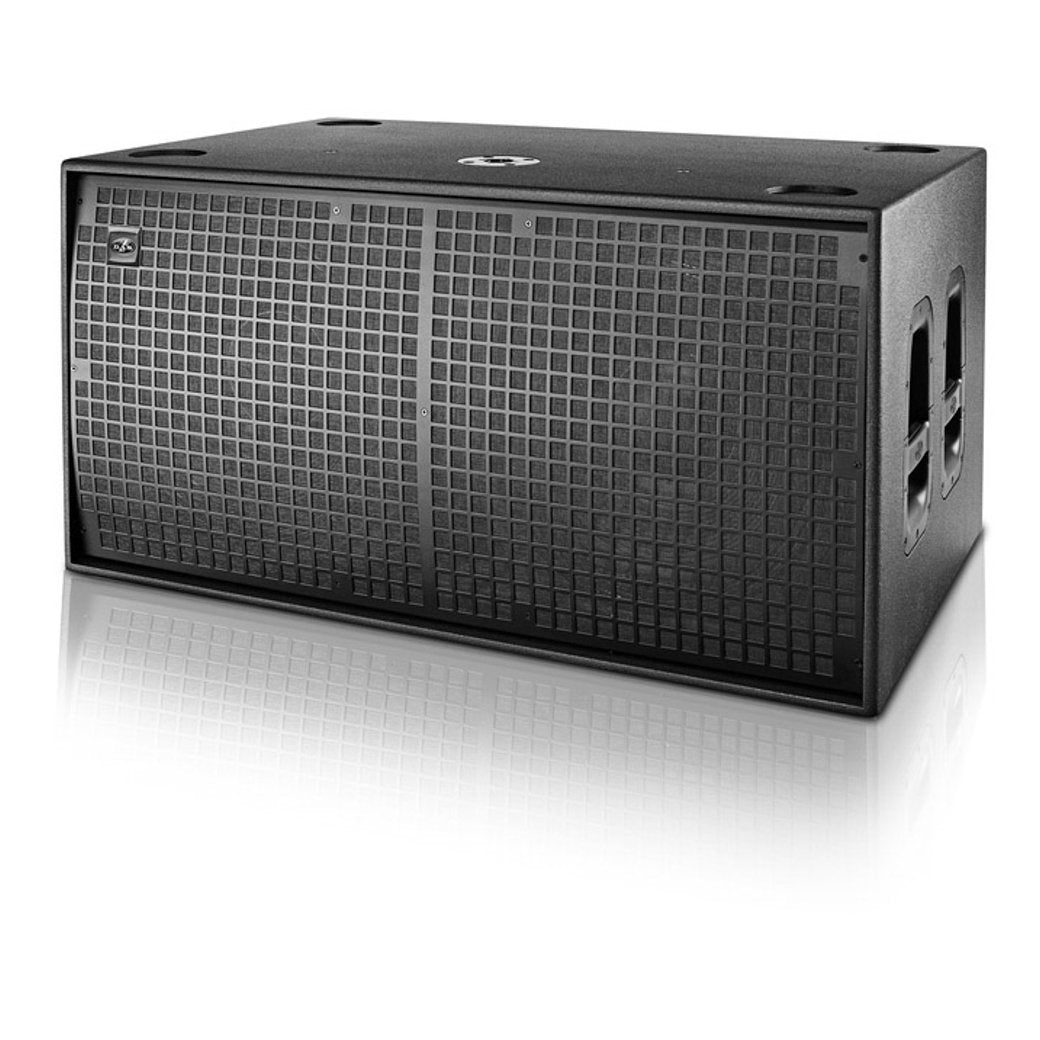

The Event 218A with double 18” amplified subwoofer uses one of the D.A.S. most reputable, the long excursion LX series, which was introduced in the high-level subs LX-218. The enclosure is designed for horizontal use, built in quality birch plywood, finished with an ISO-flex cover and has a base for the top panel.

---

The amplifier provides 3600W peak and offers features available in higher priced LX subwoofers such as the preset cardioid switch, which offers a specific signal treatment for system tuning in subwoofer cardioid applications. The system includes two balanced inputs (A-B) with stereo output connectors high pass filter @ 100 Hz (HPF) for satellites. With the filter off, the output connectors operate as “Loop Thru” outputs. It also has a low-pass filter (LPF) whose cutoff is variable between 80-125 Hz. A gain control and a polarity inverter (0º-180º) increase the user's control over the system.

The Event 218A system is made with a 3600W peak Class D high performance self-powered subwoofer and two 18LX speakers with 4 "coils. It contains a bass-reflex configuration with a high-resistance ISO-flex black paint finish.

CHARACTERISTICS

• Nominal Power Amplifier LF: 3600 W peak
• Frequency Response (-10 dB): 32 Hz - 125 Hz
• Nominal Peak SPL at 1 m: 140 dB
• Internal Crossover: 100 Hz
• Enclosure Material: Birch Plywood
• Color / Finish: Black / ISO-flex Paint
• Connectors: Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
• Nominal Voltage:0 A, 115 V, 50 Hz / 60 Hz 3.0 A, 230 V, 50 Hz / 60 Hz
• Dimensions (H x W x D): 54 x 106 x 67 cm 21.3 x 41.7 x 26.4 in
• Weight: 70 kg (154 lb)

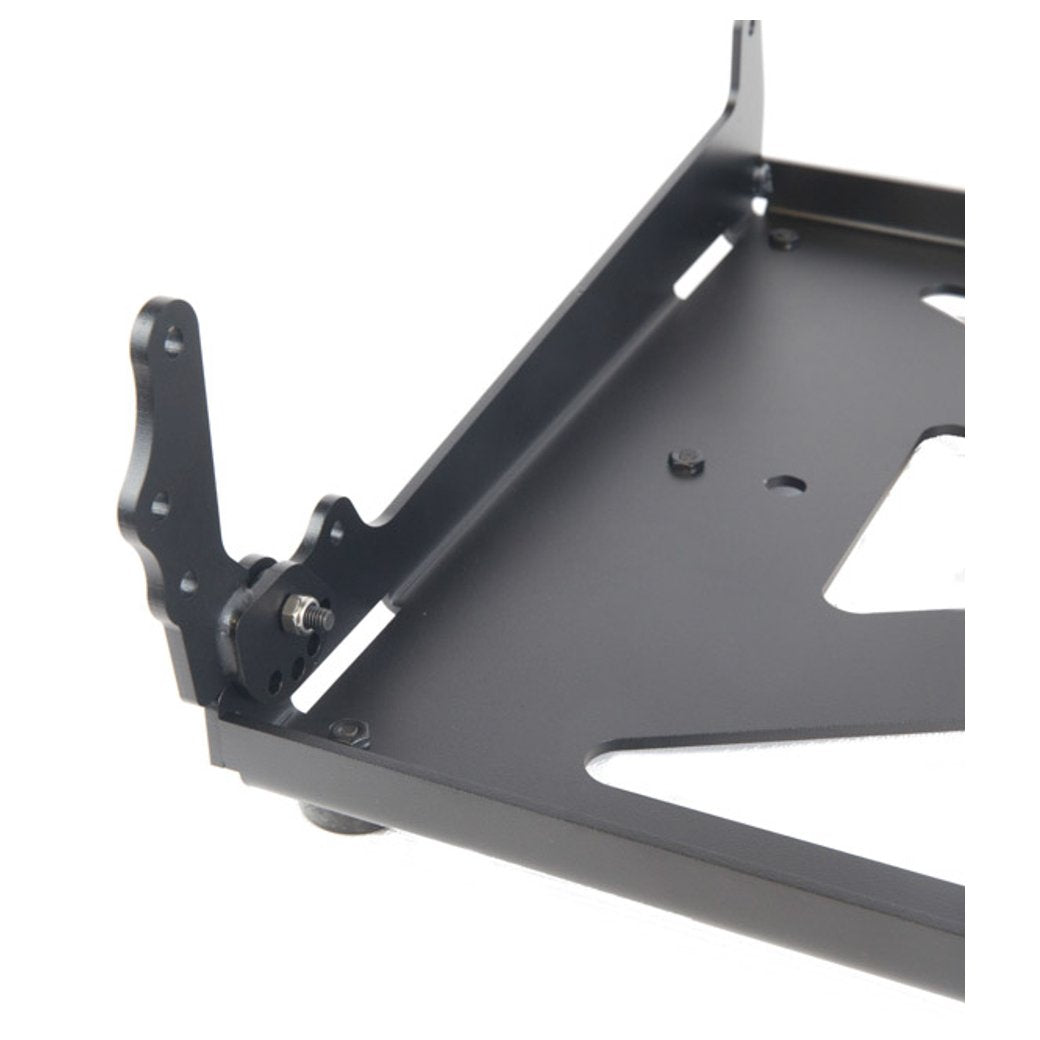

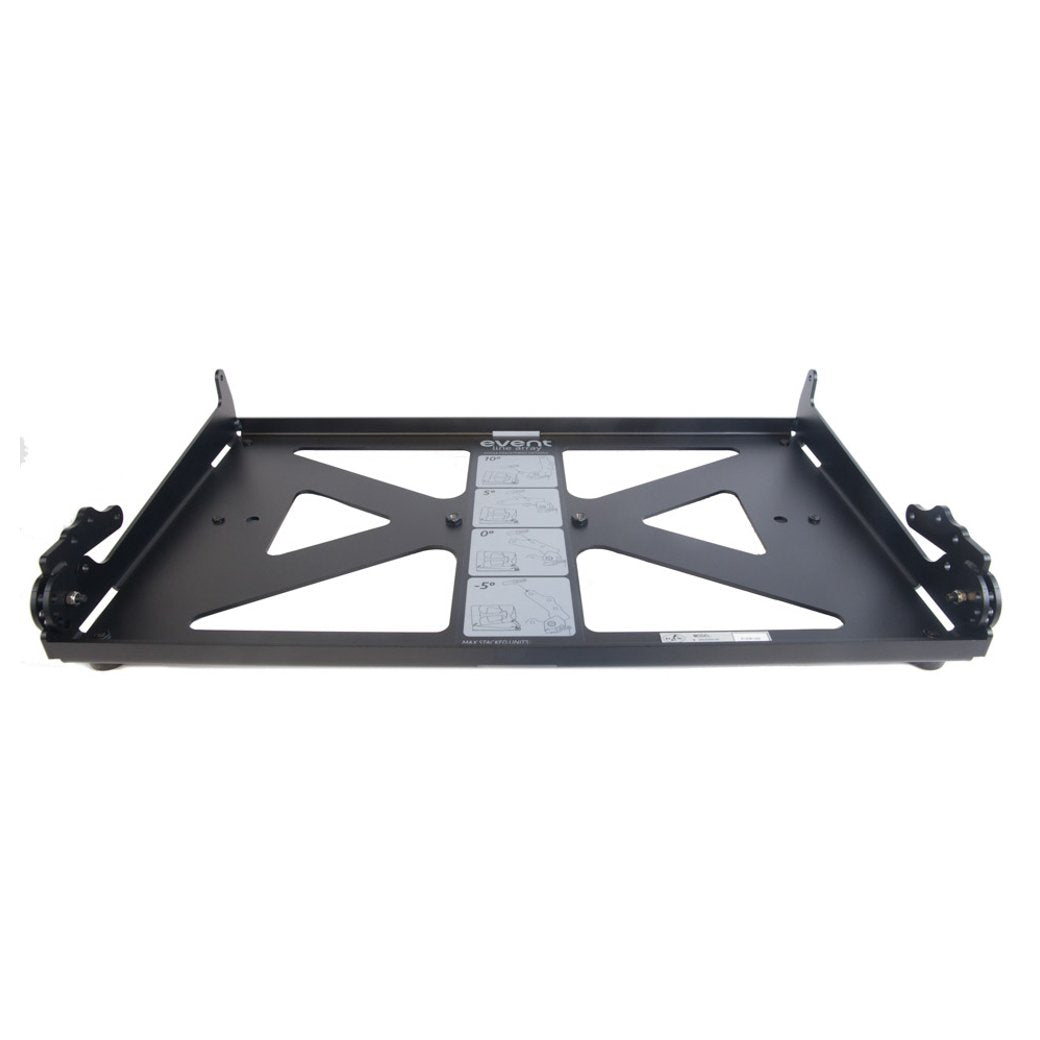

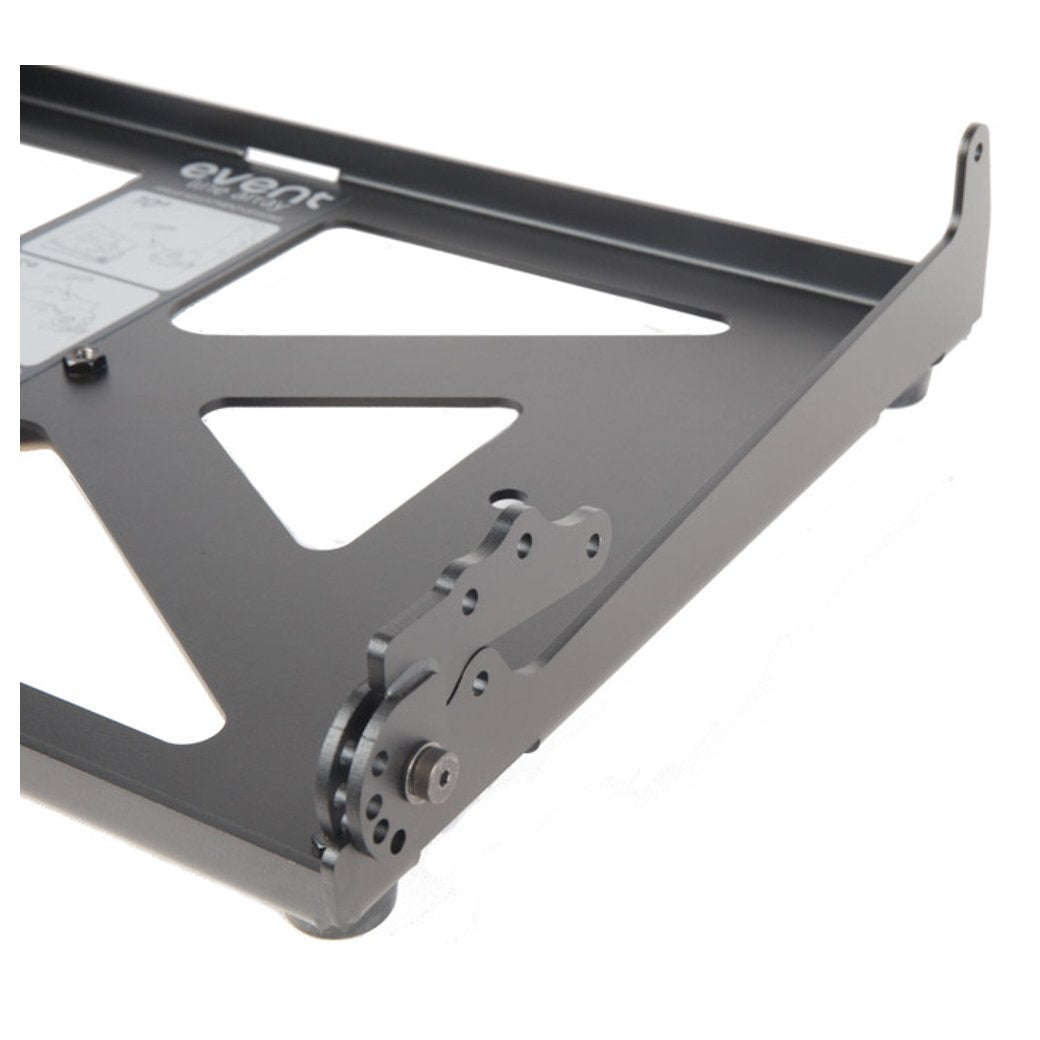

Model: AXS-EVENT208

Stacking support, ceiling support, "truss" (requires AXC-AT) or TRD-2 (requires AXC-ZT), for Event 208A.

CHARACTERISTICS
Made for speakers:

• Event 208A
• Event 218A

---

Model: Jumper Cable W/Signal

DAS Jumper Cable with Signal Cable for Event and Aero Series.

---

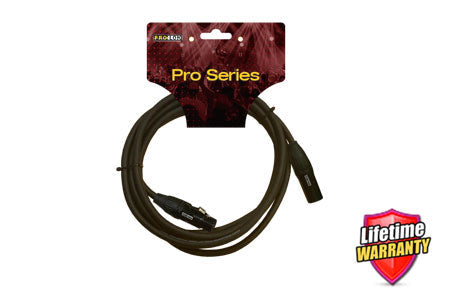

Model: 100FT XLR CABLE
