- DESCRIPTION
- SPECIFICATIONS
Its two-channel Class D amplifier and universal power supply with 2000W peak power provides the power and dynamics that such an ultra-lightweight system requires. The DSP board incorporates DAScontrol technology with LCD display and a rotary knob for selecting multiple acoustic modes (presets) depending on how the system is used as well as access to other configurable options within the system’s menu. The DSP incorporates two independent mic/line inputs with their respective volume settings, plus a third instrument input designed for connecting keyboards, basses or guitars. Audio can be sent wirelessly from mobile devices and the entire system can be controlled with the DASlink GM app.
The system incorporates two 10″ 10MG speakers developed specifically for low-frequency reproduction with ultra-low distortion levels via a powerful magnetic assembly and a cone suspension design with high displacement capability. To reproduce mid and high frequencies, the top system features four 3” 3PN drivers with neodymium magnets and an M27N (1″) neodymium compression driver coupled to a 100º x 50º horn. The horizontal directional control of the system provided by the horn is highly uniform across the entire high-frequency spectrum (f>1000Hz) and the compression driver ensure that the highs are bright and defined. The system is also available in white with the Altea duo-20A-W model.- Frequency Range (-10 dB) 37 Hz – 20 kHz
- Horizontal Coverage (-6 dB) 100º
- Vertical Coverage 50º
- Maximum Peak SPL at 1 m 127 dB
- Nominal Amplifier Power (continuous) 1000 W
- Nominal Amplifier Power (peak) 2000 W
- Nominal Amplifier Power LF (continuous) 500 W
- Nominal Amplifier Power LF (peak) 1000 W
- Nominal Amplifier Power HF (continuous) 500 W
- Nominal Amplifier Power HF (peak) 1000 W
- Input Type Balanced
- Input Impeadance 20 kohms
- Input Sensitivity 1.95 V (+8 dBu)
- Audio Signal Input Connector
- 2 x XLR/TRS Combo Jack Line/Mic
- 1 x Wireless Stereo Bluetooth
- 1 x 1/4 TRS HI-Z Instrument
- AUX Input 1 x 3.5 mm Mini Jack
- Audio Signal Loop Thru Connector 1 x Male XLR
- Control
- DAScontrol™
- DASlink GM™
- Current Draw 230 V / 115 V 1.5 A/3.0 A
- Enclosure Construction Polypropylene + Birch Plywood
- Finish Textured
- Color Black
- Dimensions ( H x W x D )
- 2.000 x 360 x 445 mm
- 78,0 x 14,2 x 17,5 in
- Net Weight 39,0 kg ( 85,8 lb )
- LF Driver 10MG
- MF Driver 3PN
- HF Driver M-27N
- Carton Dimensions ( H x W x D )
- 678 x 565 x 708 mm
- 26,7 x 22,2 x 27,9 in
- Shipping Weight 42,0 kg ( 92,4 lb )

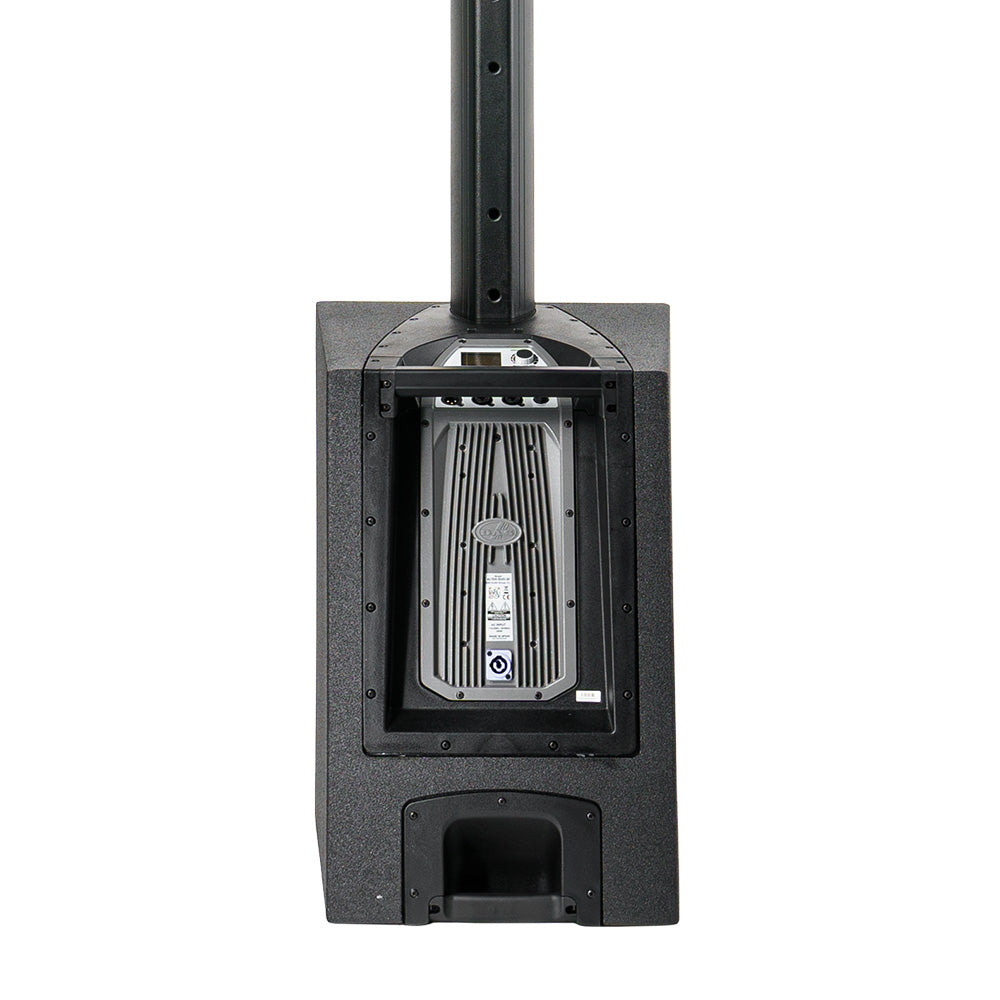

DAS ALTEA-DUO-20A 3-Way Powered Portable Column System
- DESCRIPTION
- SPECIFICATIONS
Its two-channel Class D amplifier and universal power supply with 2000W peak power provides the power and dynamics that such an ultra-lightweight system requires. The DSP board incorporates DAScontrol technology with LCD display and a rotary knob for selecting multiple acoustic modes (presets) depending on how the system is used as well as access to other configurable options within the system’s menu. The DSP incorporates two independent mic/line inputs with their respective volume settings, plus a third instrument input designed for connecting keyboards, basses or guitars. Audio can be sent wirelessly from mobile devices and the entire system can be controlled with the DASlink GM app.
The system incorporates two 10″ 10MG speakers developed specifically for low-frequency reproduction with ultra-low distortion levels via a powerful magnetic assembly and a cone suspension design with high displacement capability. To reproduce mid and high frequencies, the top system features four 3” 3PN drivers with neodymium magnets and an M27N (1″) neodymium compression driver coupled to a 100º x 50º horn. The horizontal directional control of the system provided by the horn is highly uniform across the entire high-frequency spectrum (f>1000Hz) and the compression driver ensure that the highs are bright and defined. The system is also available in white with the Altea duo-20A-W model.- Frequency Range (-10 dB) 37 Hz – 20 kHz
- Horizontal Coverage (-6 dB) 100º
- Vertical Coverage 50º
- Maximum Peak SPL at 1 m 127 dB
- Nominal Amplifier Power (continuous) 1000 W
- Nominal Amplifier Power (peak) 2000 W
- Nominal Amplifier Power LF (continuous) 500 W
- Nominal Amplifier Power LF (peak) 1000 W
- Nominal Amplifier Power HF (continuous) 500 W
- Nominal Amplifier Power HF (peak) 1000 W
- Input Type Balanced
- Input Impeadance 20 kohms
- Input Sensitivity 1.95 V (+8 dBu)
- Audio Signal Input Connector
- 2 x XLR/TRS Combo Jack Line/Mic
- 1 x Wireless Stereo Bluetooth
- 1 x 1/4 TRS HI-Z Instrument
- AUX Input 1 x 3.5 mm Mini Jack
- Audio Signal Loop Thru Connector 1 x Male XLR
- Control
- DAScontrol™
- DASlink GM™
- Current Draw 230 V / 115 V 1.5 A/3.0 A
- Enclosure Construction Polypropylene + Birch Plywood
- Finish Textured
- Color Black
- Dimensions ( H x W x D )
- 2.000 x 360 x 445 mm
- 78,0 x 14,2 x 17,5 in
- Net Weight 39,0 kg ( 85,8 lb )
- LF Driver 10MG
- MF Driver 3PN
- HF Driver M-27N
- Carton Dimensions ( H x W x D )
- 678 x 565 x 708 mm
- 26,7 x 22,2 x 27,9 in
- Shipping Weight 42,0 kg ( 92,4 lb )
DAS ALTEA-DUO-20A 3-Way Powered Portable Column System
