The EVENT-121A is a direct radiating rear-loaded powered subwoofer system which incorporates a single 21″ neodymium loudspeaker providing “earth-moving” low-frequency reproduction for the EVENT Series line arrays. The combination of direct radiation and rear-loading provides a high output, tight and accurate sub-bass response.

The EVENT-121A employs the new DAS 21LFN loudspeaker which offers impressive features such as a 4″ sandwich split winding voice coil, a powerful FEA optimized neodymium magnet assembly and a FEA optimized suspension system with double silicon spider. The result is a loudspeaker with exceptional sensitivity, high power handling capacity and a quality suspension design capable of withstanding the stress and mechanical fatigue of today´s high-power pro audio systems. An aluminum demodulating ring benefits lower distortion and effective forced ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression.

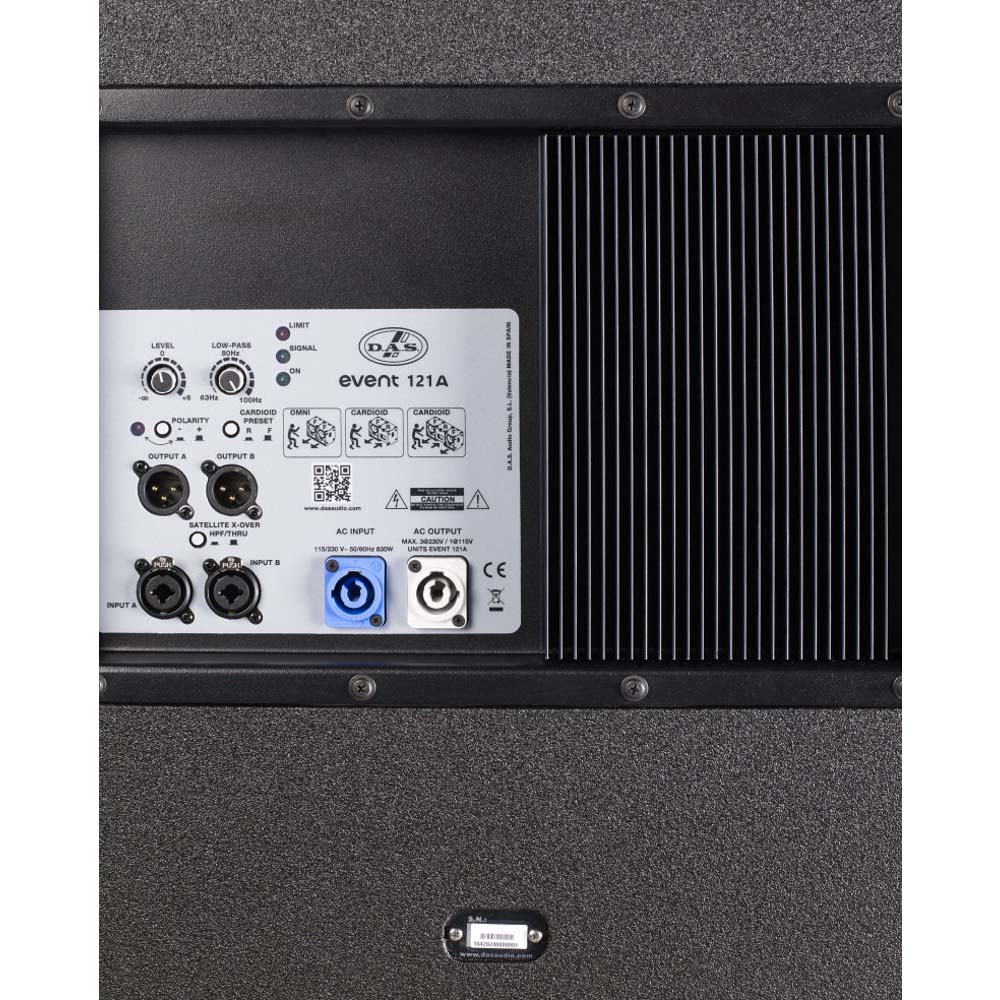

The EVENT-121A electronics package includes a 3200 Wpeak Class D amplifier and 24-bit high-end DSP for top quality audio reproduction. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 63 Hz to 100 Hz. A unique “cardioid preset” button simplifies the use of subs in cardioid configurations, making setup of two to three units a snap without the need for an external DSP. The EVENT-121A is phase response coherent with the EVENT-208A, EVENT-210A and EVENT-212A active tops offering precise alignment. Two balanced inputs with stereo filtered outputs which can be sitched to pass-through connections are provided.

• Frequency Range (-10 dB) 30 Hz – 125 Hz
• Maximum Peak SPL at 1 m 141 dB

• Nominal Amplifier Power (continuous) 1600 W
• Nominal Amplifier Power (peak) 3200 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 6.2 V (+18 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• AC Input Connector powerCon NAC3FCA
• AC Output Connector powerCON NAC3FCB
• Operating Range 90-250 VAC
• Current Draw 115 V 7.2 A
• Current Draw 230 V 3.6 A

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D )
• 965 x 740 x 755 mm
• 38,0 x 29,1 x 29,7 in
• Net Weight 78,5 kg ( 173,1 lb )

• LF Driver 21LFN

• Carton Dimensions ( H x W x D )
• 1.060 x 790 x 820 mm
• 41,7 x 31,1 x 32,3 in
• Shipping Weight 83,5 kg ( 184,1 lb )
