DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array
Roll over image to zoom in Click on image to zoom
DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array
DAS Audio Event-26A Compact Line Array

DAS Audio Event-26A Compact Line Array

Save 27%
DAS AudioSKU: EVENT-26A
Price:
$1,629.00 $2,221.07

Description

Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system.

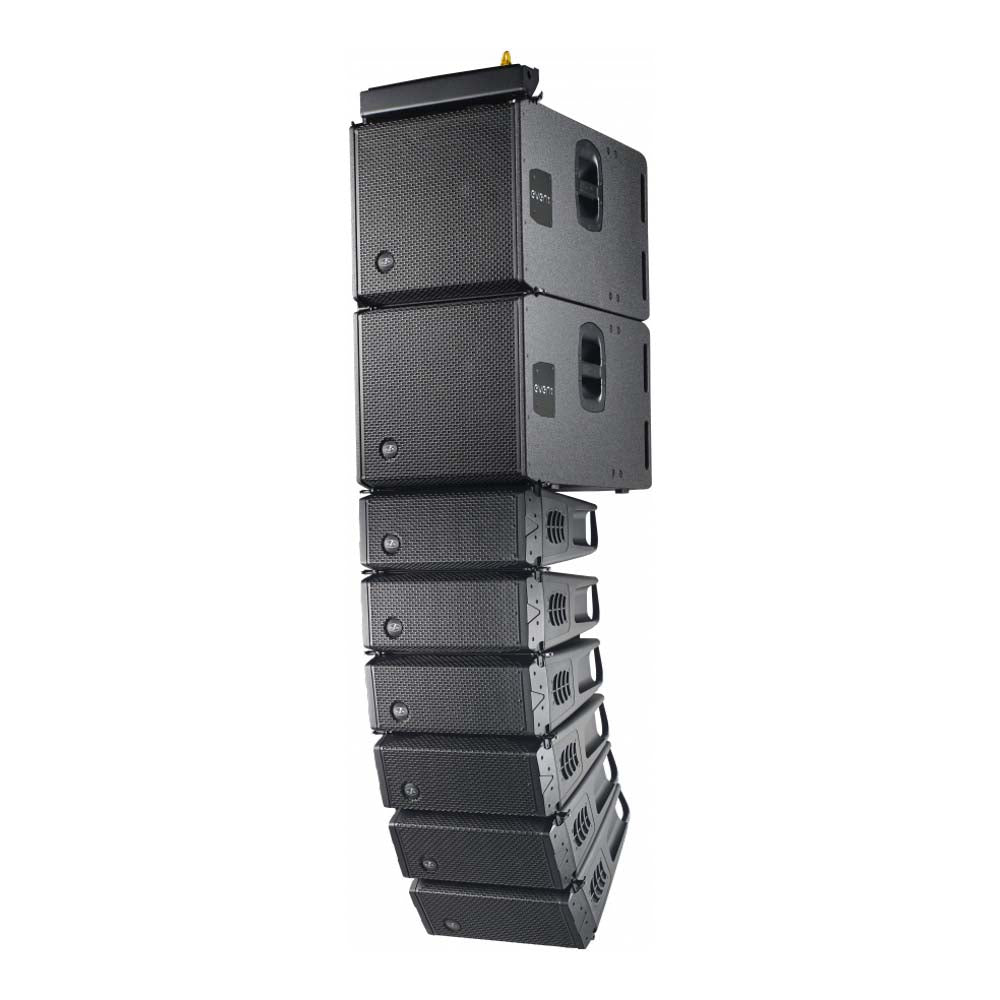

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.



 The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays. Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.



 Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

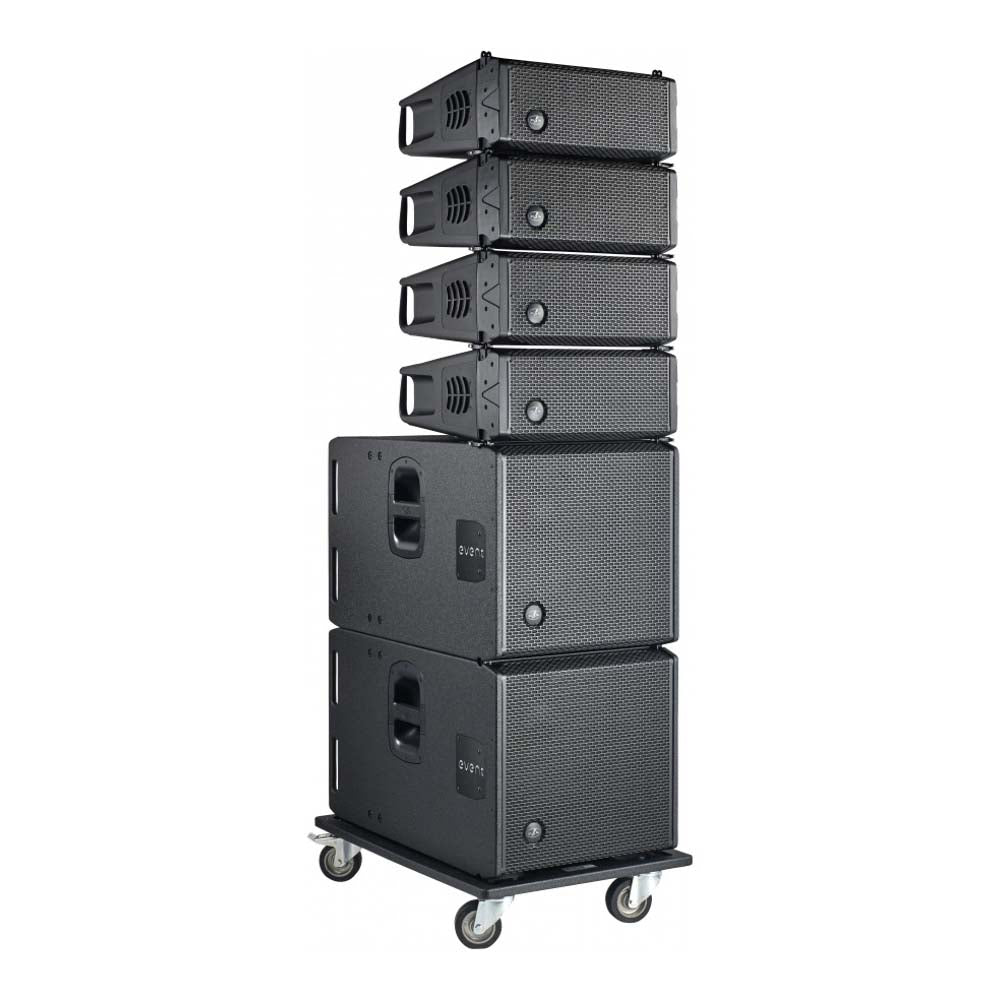

Low frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Performance

  • Frequency Range (-10 dB) 76 Hz – 19 kHz
  • Horizontal Coverage (-6 dB) 100º
  • Vertical Coverage Splay Dependent
  • Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors

  • Nominal Amplifier Power (continuous) 400 W
  • Nominal Amplifier Power (peak) 800 W
  • Input Type Balanced
  • Input Impeadance 20 kohms
  • Input Sensitivity 2 V (+18 dBu)
  • Audio Signal Input Connector 1 x Female XLR
  • Audio Signal Loop Thru Connector 1 x Male XLR
  • AC Input Connector powerCON NAC3MPA
  • AC Output Connector powerCON NAC3MPB
  • Operating Range 90-127/180-250 VAC
  • Current Draw 115 V 6 A
  • Current Draw 230 V 8 A

Enclosure

  • Enclosure Construction Polypropylene
  • Enclosure Geometry Trapezoidal
  • Rigging Captive Rigging System
  • Color Black
  • IP Rating IP43
  • Dimensions ( H x W x D ) 225 x 480 x 485 mm
  • 8,9 x 18,9 x 19,1 in
  • Net Weight 16,5 kg ( 36,4 lb )

Components

  • LF Driver 6MI
  • HF Driver M-60

Shipping

  • Carton Dimensions ( H x W x D ) 565 x 565 x 290 mm
  • 22.2 x 22.2 x 11.4 in
