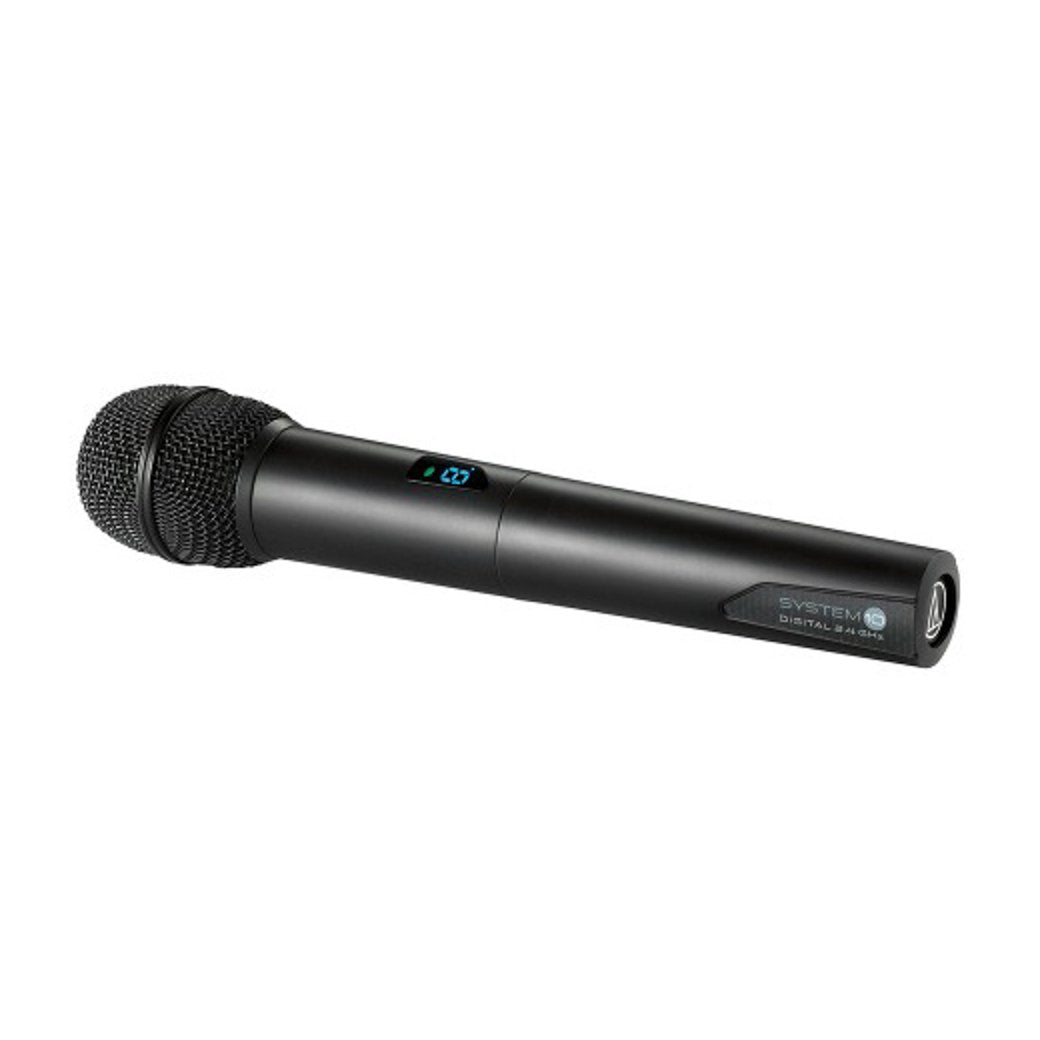

Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1002 handheld dynamic cardioid microphone. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• 2.4 GHz range – completely free from TV/ 3G interference
• Three levels of diversity assurance: frequency, time, & space
• Automatic frequency selection for seamless, interference-free operation
• Automatic Frequency Selection. Plug & Play. Ease of use and reliability
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced 1/4” output jacks with level control

The System 10 continuously monitors the activity in the 2.4GHz band and automatically adjusts the best signal in case of interference with WLAN routers, Bluetooth devices or other HF microphones. The 2.4 GHz frequency band keeps you away from licensing or frequency coordination issues, or frequencies used by DTV and 4G.

The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly "monitor" the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene.

Overall System

• Operating Frequencies: 2.4 GHz ISM band
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type
• Operating Range: 30 m (100') Open range env. with no interfering signals
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Audio Sampling: 24 bit / 48 kHz
• Latency: 3.8 ms

Receiver

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
• Dimensions: 190 mm W x 46.2 mm Hx 128.5 mm D
• Weight: 290g
• Accessories Included: Power supply

Handheld Transmitter

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Battery Type: Two 1.5V AA (not included)
• Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
• Net Weight: 280g
• Accessories Included: AT8456a Quiet-Flex™ stand clamp
