Audio-Technica 3000 Bodypack Wireless Microphone System

DESCRIPTION
FEATURES
CHARACTERISTICS

DESCRIPTION

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

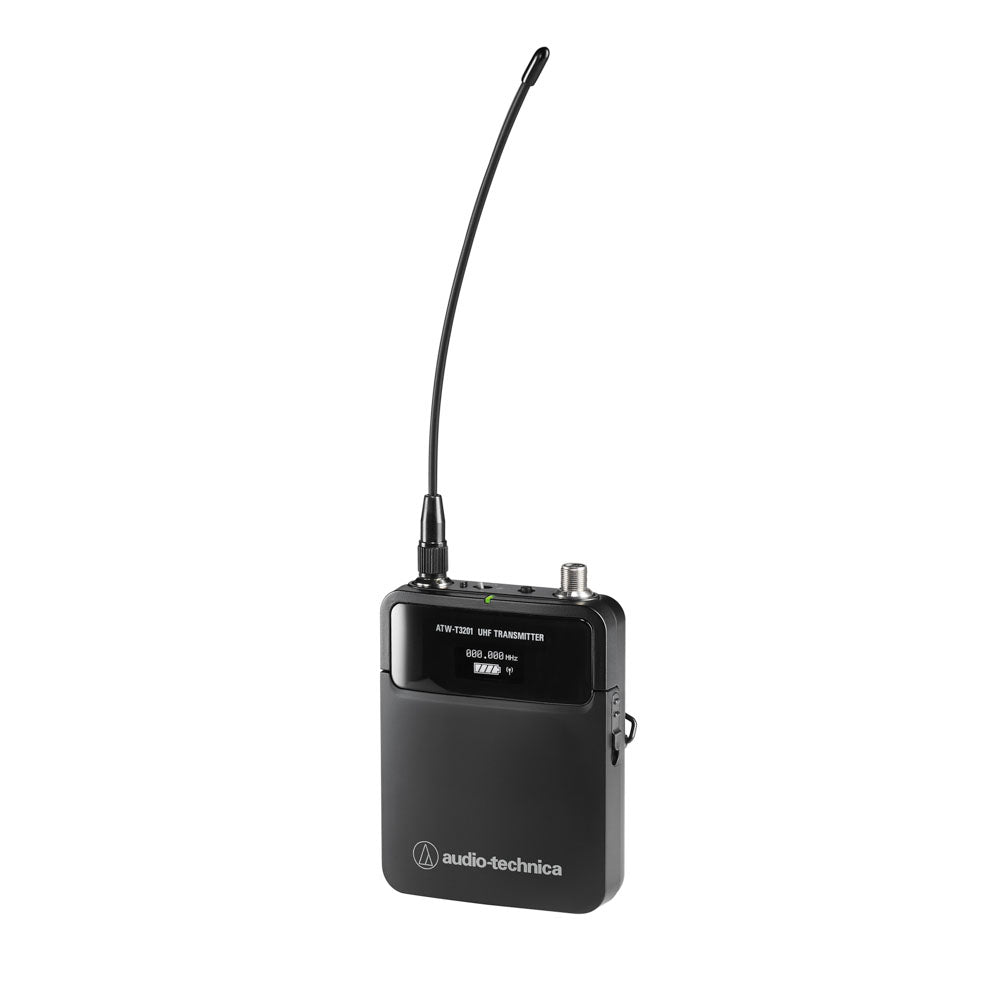

Available system configurations feature an ATW-R3210 receiver or an ATW-R3210N network-enabled receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.

FEATURES

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)

Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software

True Diversity operation reduces dropouts

Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference

Frequency scan and IR sync functionality for ease of setup

Dual-mode receiver display can switch between standard view or a performance view that highlights key metering

Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules

New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector

Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible

Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries

Antenna power available for powered antennas and other in-line RF devices

Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks

CHARACTERISTICS

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies	Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step	25 kHz
Modulation Mode	FM
Maximum Deviation	ATW-T3201: ±38 kHz (THD:10%) ATW-T3202: ±36 kHz (THD:10%)
Dynamic Range	ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion	<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Range	100 m (328') Open range environment with no interfering signals.
Operating Temperature Range	-5° C to +45° C (23° F to 113° F)
Frequency Response	ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
Maximum Simultaneous Use (Recommended)	40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. Region and band dependent*

RECEIVER SPECIFICATIONS
Receiving System	True Diversity
Image Rejection	60 dB nominal
RF Sensitivity	20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Antenna Power	12 V DC, 160 mA (combined)
Maximum Output Level	XLR, balanced: +14 dBV 6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input	BNC-type, 50 ohms
Power Supply	100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions	210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)
Net Weight	1100 g (38.8 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters; AT8631 joining plate (ATW-R3210N only)

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following Federal and National Regulations
Input Connections	cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
High-pass (low-freq. roll-off)	125Hz, 12dB/octave
Batteries	Two 1.5V AA, not included
Battery Life	High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Dimensions	64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H)
Net Weight	102 g (3.6 oz), without batteries
