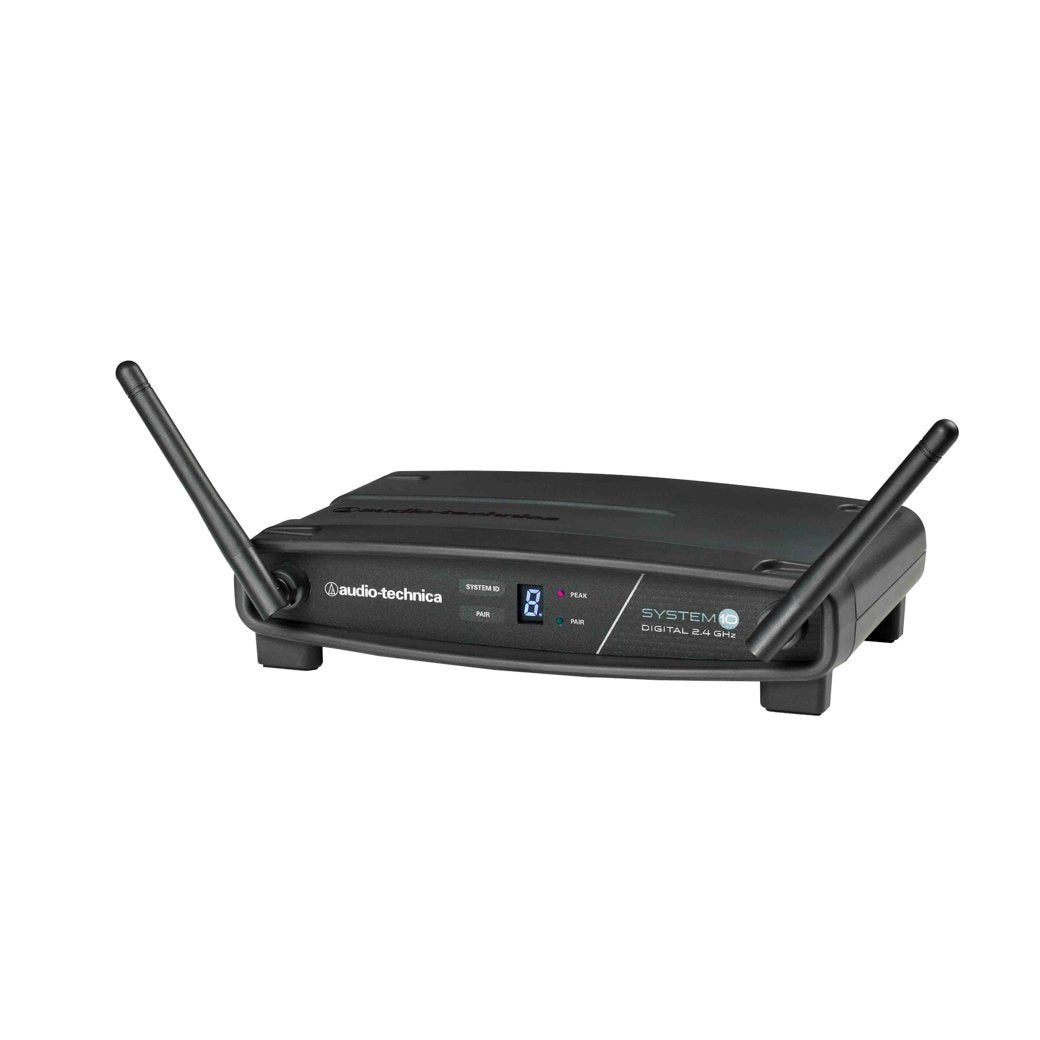

Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1001 body-pack transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly "monitor" the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV/ 3G interference
  • Three levels of diversity assurance: frequency, time, & space
  • Automatic frequency selection for seamless, interference-free operation
  • Automatic Frequency Selection. Plug & Play. Ease of use and reliability
  • Extremely easy operation with instantaneous channel selection, sync, and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

Overall System

  • Operating Frequencies: 2.4 GHz ISM band
  • Frequency Response: 20 Hz to 20 kHz Depending on microphone type
  • Operating Range: 30 m (100') Open range env. with no interfering signals
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
  • Audio Sampling: 24 bit / 48 kHz
  • Latency: 3.8 ms

Receiver

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
  • Dimensions: 190 mm W x 46.2 mm Hx 128.5 mm D
  • Weight: 290g
  • Accessories Included: Power supply

Belt Pack

  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connections: Four-pin Locking Connector, Pin 1: GND / Pin 2: INST INPUT / Pin 3: MIC INPUT / Pin 4: DC BIAS +9V
  • Battery Type: Two 1.5V AA
  • Battery Life: >7 hours (alkaline) Depending on batt. type & use pattern
  • Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight: 100g
