- SPECIFICATIONS
SPECIFICATIONS
- Model: TMZ 54ZBT
- Power Supply: 110-120V~ 60Hz or 220-240V~50/60Hz Selectable
- Inputs Sensitivity:
- CH1- 4:Mic/Phantom:-50dBV; Line: -10dBV balance
- CH5: -10dBV unbalance
- Telephone paging: -10dBV
- Frequency response: 60-17000Hz(-3dB)
- Tone control:
- Treble: 10dB at 10KHz
- Bass: 10dB at 100Hz
- T.H.D.: <1%
- S/N ratio:
- Mic. >65dB
- Line >75dB
- Tel. >65dB
- Priority for Mic-1: mute CH2-CH5
- Outputs impedance: 4 ohms , 8 ohms
- Output constant voltage: 25V,70V,100V
- Power output: RMS120W X 4 (at 4 ohms )
- Monitor output: 1W RMS
- Phone output: 1V ( 47ohm)
- Line out: 2.0V(BAL)
- Monitor Line out: 1V( 600 ohms)
- Controls:
- 5 Gain controls for Ch1-5
- 8 Volume controls for Ch1-5, tel. paging, monitor, phone
- 4 Master volume control
- 5 Trebel controls
- 5 Bass controls
- 4 Zone select switch for each channel
- 4 Zone monitor select switch
- 5 mute controls
- 1 AC select switch
- 1 Bluetooth PAIR Switch
- Indicate LED:
- 5VU meters (LED type)
- 1 Power indicator
- 5 Mute indicators
- 1 Bluetooth PAIR indicators
- Dimensions:(WxHxD) 483mm(W) x 133mm(H) x 395mm(D)

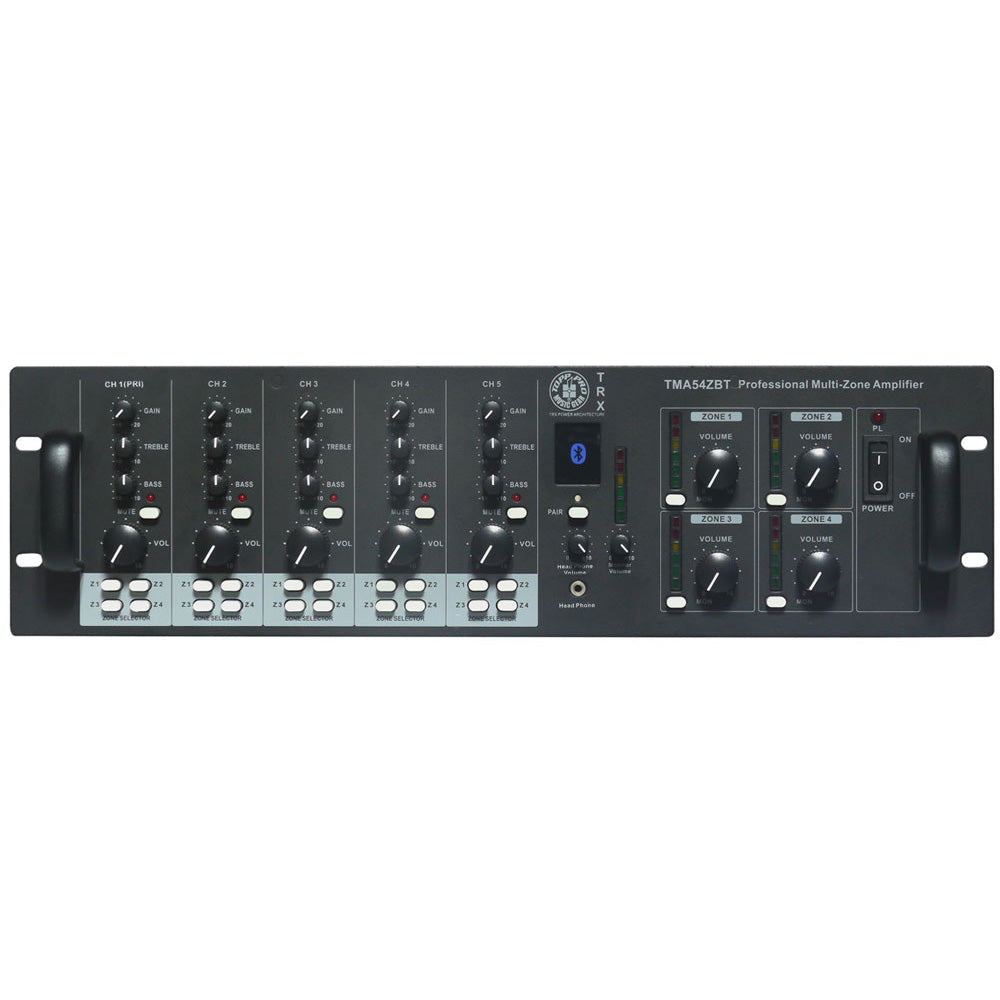

Topp Pro TMA-54ZBT 4-Channel Install Powered Mixer
Regular price
$649.00
FINANCE WITH SYNCHRONY:
$649.00
Adding product to your cart
SPECIFICATIONS:
-
SKU:
TMA-54ZBT
- Vendor:
-
Product type:
--
- SPECIFICATIONS
SPECIFICATIONS
- Model: TMZ 54ZBT
- Power Supply: 110-120V~ 60Hz or 220-240V~50/60Hz Selectable
- Inputs Sensitivity:
- CH1- 4:Mic/Phantom:-50dBV; Line: -10dBV balance
- CH5: -10dBV unbalance
- Telephone paging: -10dBV
- Frequency response: 60-17000Hz(-3dB)
- Tone control:
- Treble: 10dB at 10KHz
- Bass: 10dB at 100Hz
- T.H.D.: <1%
- S/N ratio:
- Mic. >65dB
- Line >75dB
- Tel. >65dB
- Priority for Mic-1: mute CH2-CH5
- Outputs impedance: 4 ohms , 8 ohms
- Output constant voltage: 25V,70V,100V
- Power output: RMS120W X 4 (at 4 ohms )
- Monitor output: 1W RMS
- Phone output: 1V ( 47ohm)
- Line out: 2.0V(BAL)
- Monitor Line out: 1V( 600 ohms)
- Controls:
- 5 Gain controls for Ch1-5
- 8 Volume controls for Ch1-5, tel. paging, monitor, phone
- 4 Master volume control
- 5 Trebel controls
- 5 Bass controls
- 4 Zone select switch for each channel
- 4 Zone monitor select switch
- 5 mute controls
- 1 AC select switch
- 1 Bluetooth PAIR Switch
- Indicate LED:
- 5VU meters (LED type)
- 1 Power indicator
- 5 Mute indicators
- 1 Bluetooth PAIR indicators
- Dimensions:(WxHxD) 483mm(W) x 133mm(H) x 395mm(D)
Topp Pro TMA-54ZBT 4-Channel Install Powered Mixer
Regular price
$649.00
