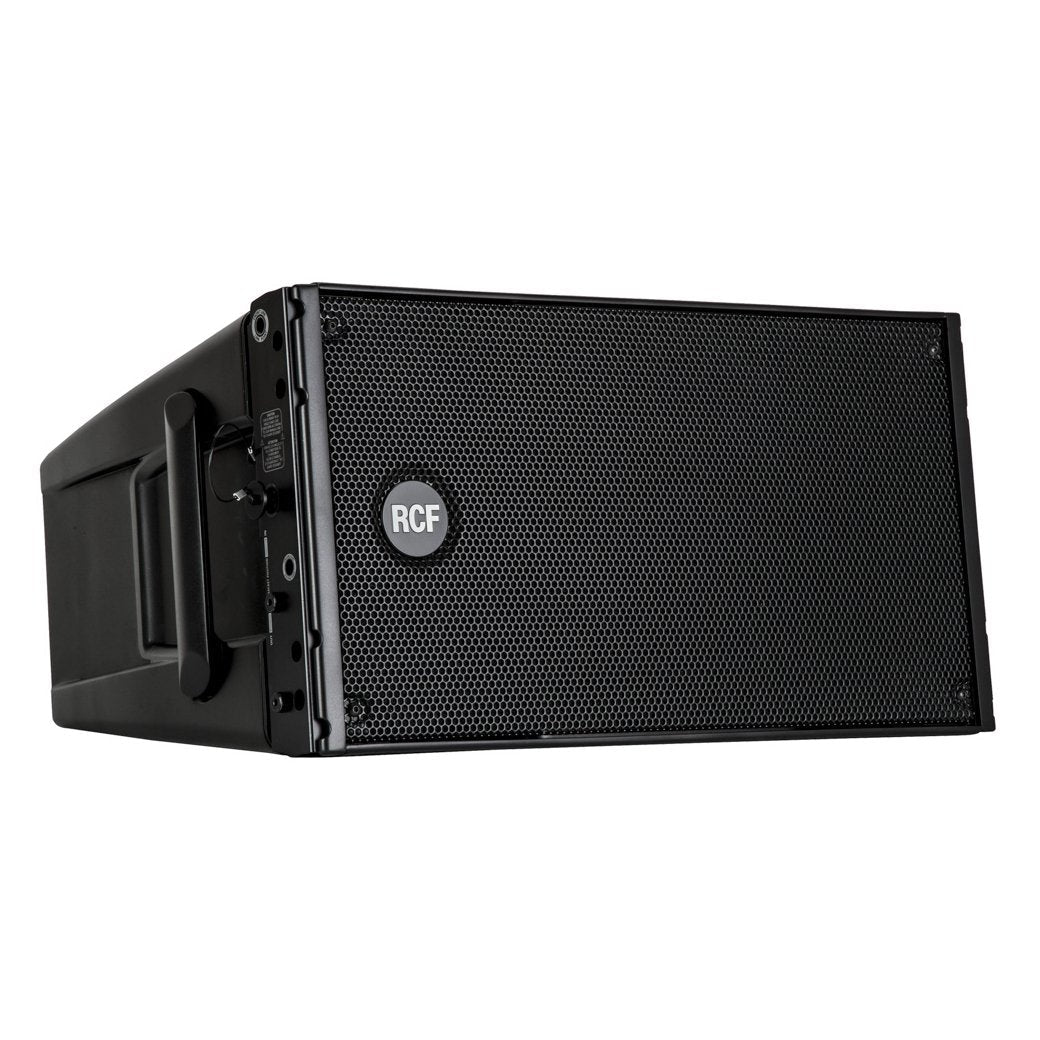

RCF HDL 10-A Active Line Array

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

• 1400 Watt Peak power - 700 Watt RMS
• 133 dB max SPL
• 65 Hz 20 kHz frequency response
• 2 x 8" Woofers
• 1 x 2" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforced

• CHARACTERISTICS

• FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz
• MAX SPL At 1 M: 133 dB
• HORIZONTAL COVERAGE ANGLE: 100°
• VERTICAL COVERAGE ANGLE: 15 °

• Transducers:

  • COMPRESSION ENGINE:0``, 2.5 '' v.c
  • LOW SPEAKER: 2 x 8``, 2.0 '' v.c

• Entry section / Exit section:

  • INPUT SIGNAL: bal / unbal
  • INPUT CONNECTORS: XLR
  • OUTPUT CONNECTORS: XLR
  • INPUT SENSITIVITY: -2 dBu / + 4 dBu

• Process Section:

  • CROSSING FREQUENCIES: 800 Hz
  • PROTECTIONS: Thermal, RMS
  • LIMITER: Soft Limiter
  • CONTROLS: Cluster, HF, High curving, Indoor

• Power section

  • TOTAL POWER: 1400 W Peak, 700 W RMS
  • ACUTES: 400 W Peak, 200 W RMS
  • LOW FREQUENCIES: 1000 W Peak, 500 W RMS
  • REFRIGERATION: Convection
  • UNIT CONNECTIONS: Powercon IN / OUT; Standard compliance
  • CE BRAND: Yes

• Physical specifications

  • CASE MATERIAL: PP Composite
  • PHYSICAL EQUIPMENT: Rigging flyware
  • HANDLES: 2 side
  • GRILLE: Steel
  • COLOR: Black

• Size

  • HEIGHT: 294 mm / 11.57 inches
  • TOTAL WIDTH: 569 mm / 22.4 inches
  • PACKAGE DEPTH: 434 mm / 17.09 inches
  • PACKAGE WEIGHT:4 kg / 44.97 lbs

• Shipping Information

  • PACKAGE HEIGHT: 375 mm / 14.76 inches
  • PACKAGE WIDTH: 650 mm / 25.59 inches
  • PACKAGE DEPTH: 500 mm / 19.69 inches
  • PACKAGE WEIGHT: 23 kg / 50.71 lbs
