- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 1.75" Compression Driver
- 12" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management

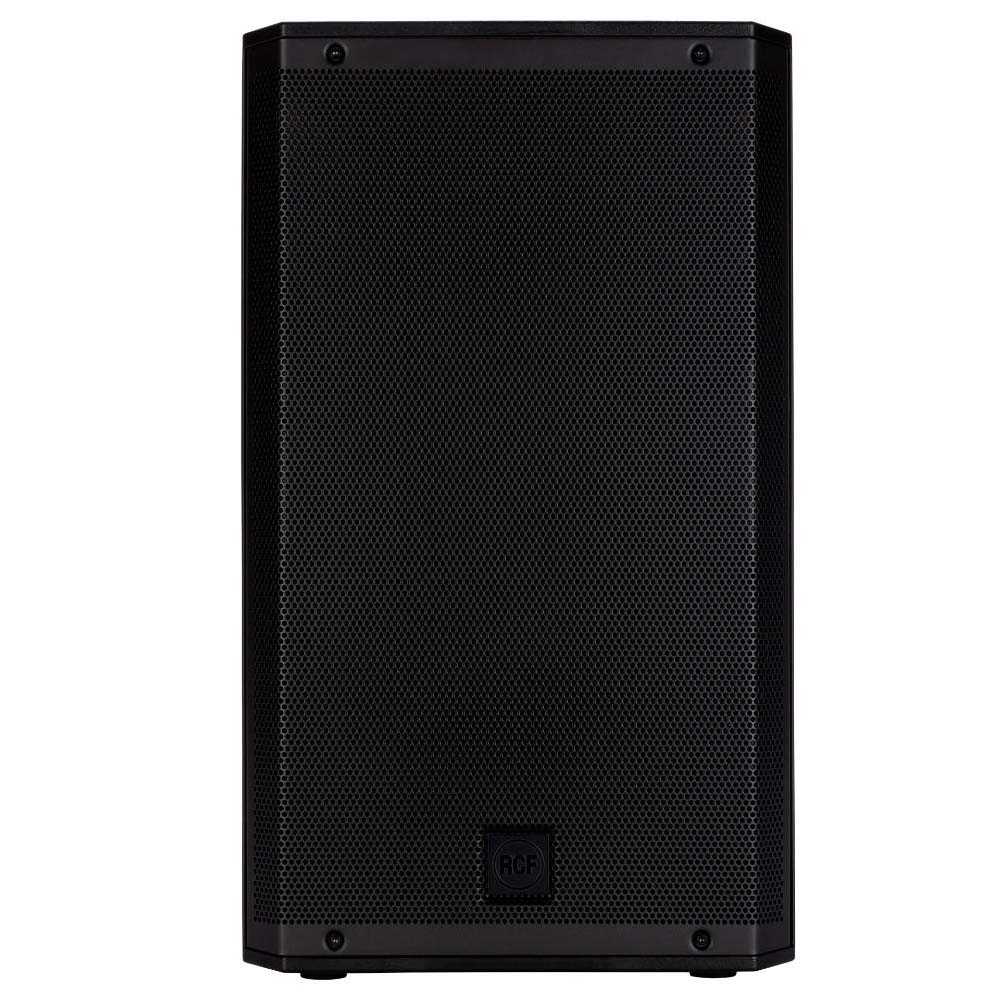

ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
ACOUSTICAL SPECIFICATIONS
requency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
TRANSDUCERS
Compression Driver:1 x 1.0'', 1.75'' v.c
Woofer:12'', 2.5'' v.c

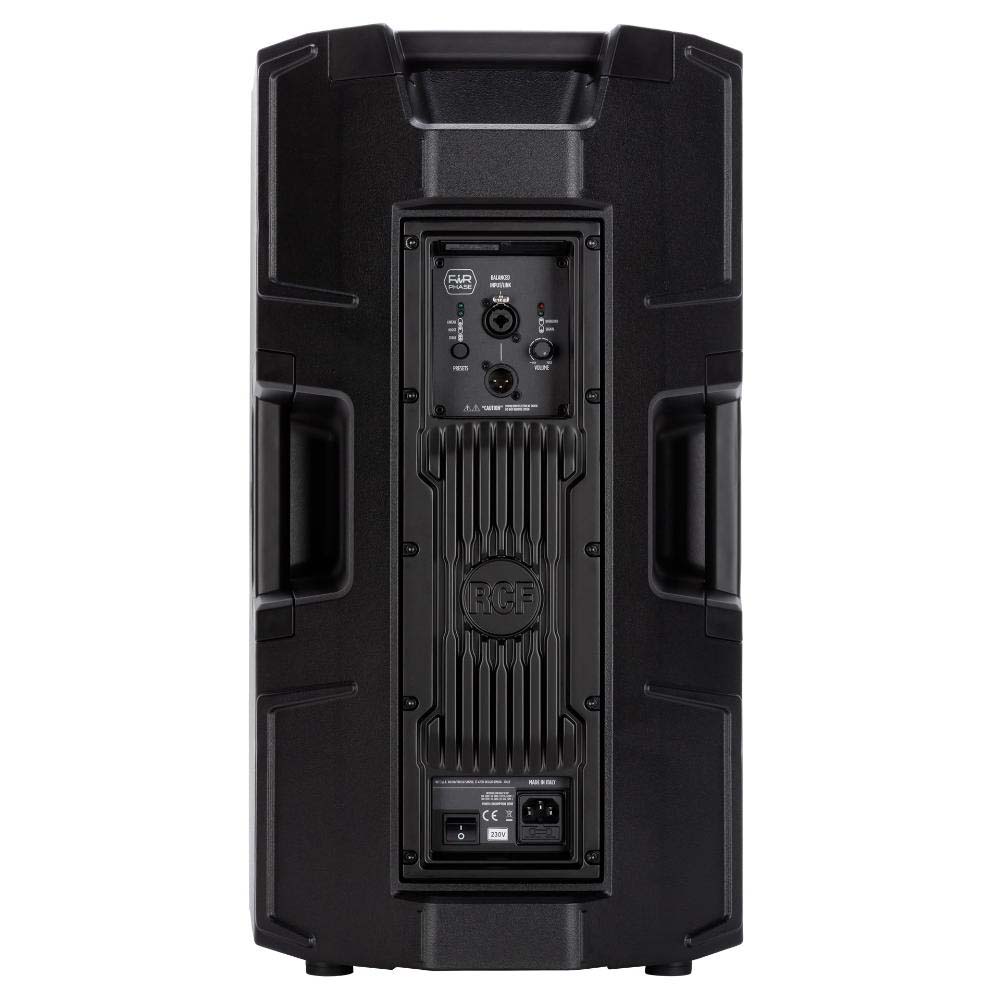

INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:1800 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Linear, Boost, Stage, Volume
POWER SECTION
Total Power:2100 W Peak
High frequencies:700 W Peak
Low frequencies:1400 W Peak
Cooling:Convection
Connections:VDE
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 Top, 1 x M10 each side
Handles: 1 Top , 1 each side
Pole mount/Cap: Yes
Grille: Steel
Color: Black
SIZE
Height: 642 mm / 25.28 inches
Width: 370 mm / 14.57 inches
Depth: 363 mm / 14.29 inches
Weight: 19 kg / 41.89 lbs
