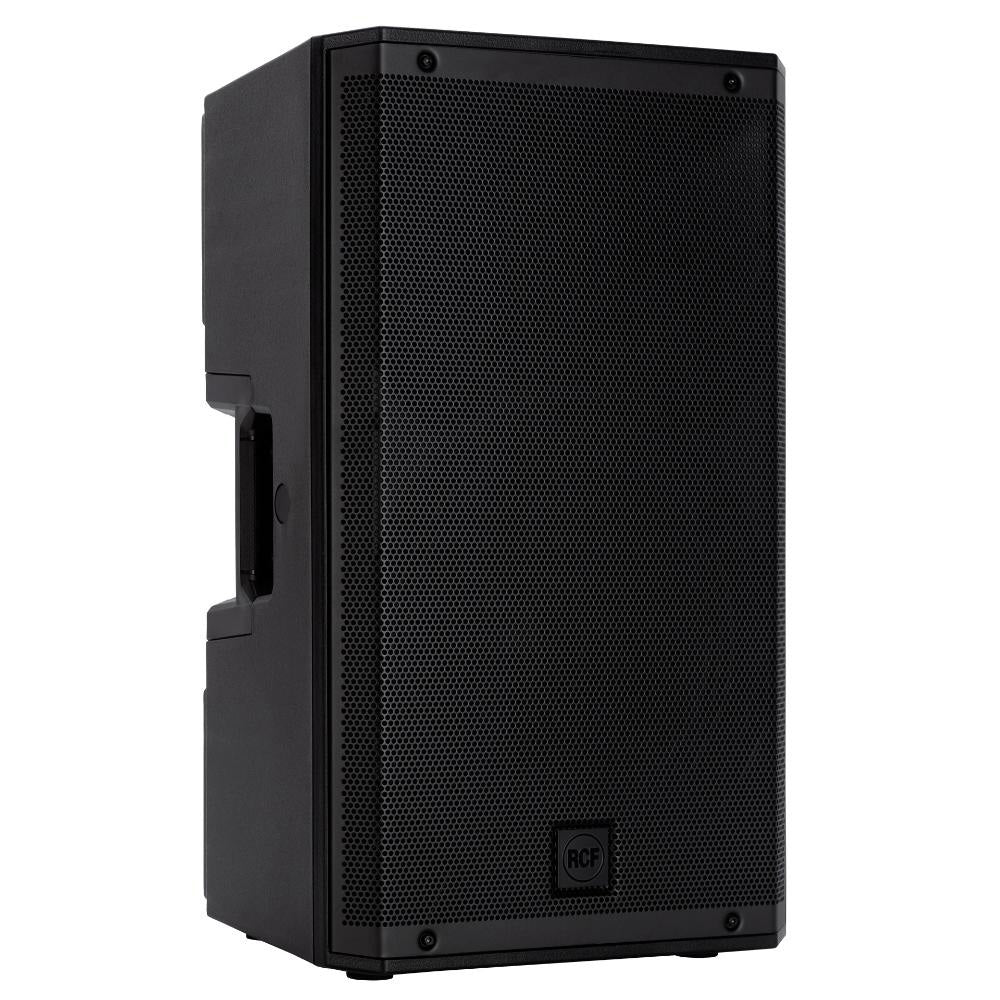

ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

• Built-in 6-channel Digital Mixer

• Advanced User Interface w/ touch panel and remote control

• 1.75" Compression Driver and 10" Woofer

• Up to 130 dB Sound Pressure Level

• 2100W Class-D Bi-Amplification

• Dual combo preamp with 48V Power and Mini-jack stereo line input

• Bluetooth® stereo audio input, with dual speaker pairing option

• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

Acoustical Specifications

• Frequency Response: 50 Hz ÷ 20000 Hz

• Max SPL @ 1m: 130 dB

• Horizontal coverage angle: 100°

• Vertical coverage angle: 60°

Transducers

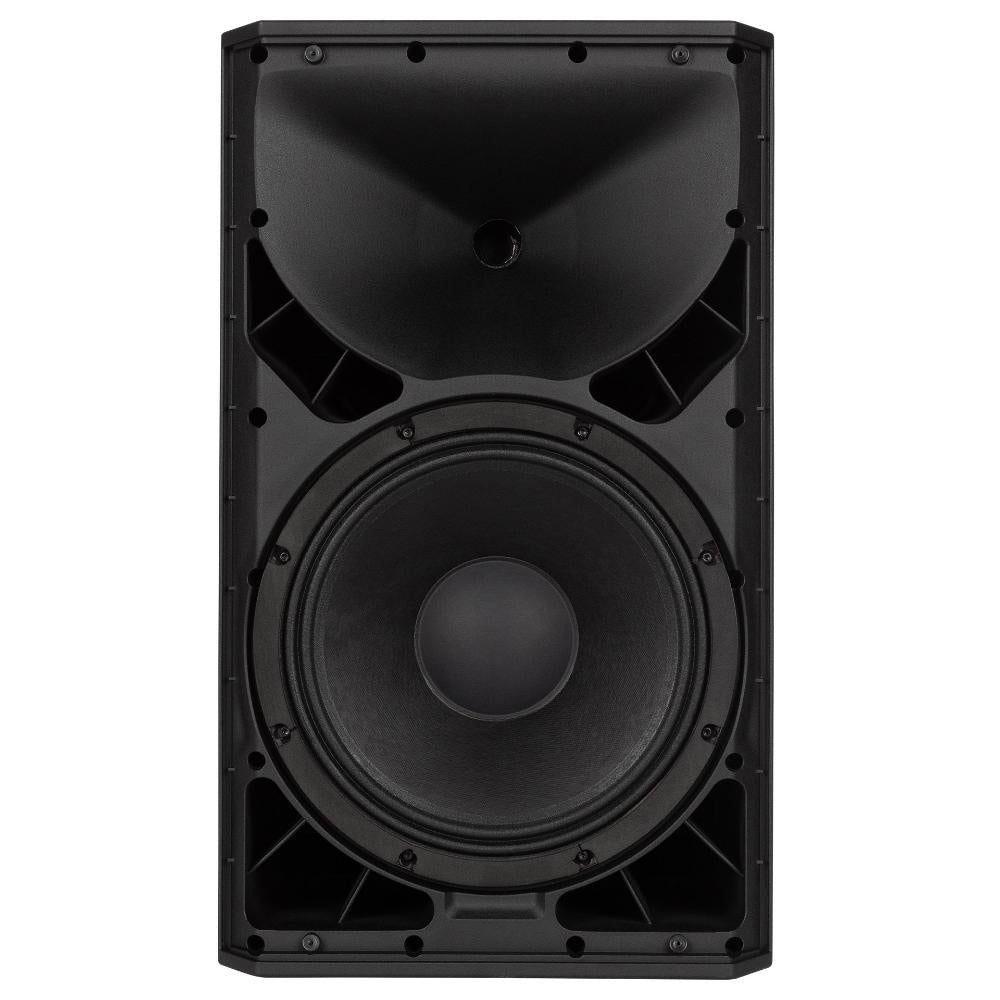

• Compression Driver: 1 x 1.0'', 1.75'' v.c
  Woofer: 12'', 2.5'' v.c

Input/Output section

• Input signal: bal/unbal

• Input connectors: Combo XLR/Jack

• Output connectors: XLR


Processor section

• Crossover Frequencies: 1600Hz
• Protections: Thermal, RMS

• Limiter: Soft Limiter

• Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

Power section

• Total Power: 2100 W Peak

• High frequencies: 700 W Peak

• Low frequencies: 1400 W Peak

• Cooling: Convection

• Connections: VDE

Electronic Specifications

• Frequency Response: 20 Hz ÷ 20 Hz

• THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted

Processing

• Processing Channels: 6

• Signal Processing: 24 Bit

• A/D-D/A conversion: 32 Bit @ 48.0 kHz

• Dynamic range: 110

Inputs

• Mic: 2

• Remote Controlled Storable Gain: Yes

• Gain Range: 0 dB ÷ 42 dB

• Input Noise Level: -114 dBu A-Weighted

• Mic Inputs Impedance: 6 kohm

• Low Cut: 20 Hz ÷ 400 Hz

• Phantom Power +48V: Yes

• Mono Line: 2

• Gain Selection: 0 dB ÷ 22 dB

• Line Input Impedance: 21 kohm

• A/D Dynamic range: 114 dB

• Stereo Line: 1

• Gain Selection: 0 dB ÷ 10 dB

• Stereo Line Input Impedance (kOhm): 13 kohm

Outputs
