The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainers, AV production and clubs/venues applications.
On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.
- Very high output with impressive low frequency performance
- 3600 Watt Class D amplifier module
- 18 inch (460 mm) long excursion direct radiating driver
- Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
- Selectable DEEP™ mode for extremely low frequency extension
- Adjustable crossover and delay
- Scenes for commonly-used applications that can be saved/recalled
- Refined, professional and elegant appearance in any application
- Rugged painted wood enclosure for lasting durability
- Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)
- Four low-noise, heavy-duty casters
- Optional transport cover, KS-LOC security cover and 35 mm loudspeaker pole accessories available
- 6-Year Warranty with product registration
- Configuration
- Direct Radiating
- LF Transducer
- 460 mm (18 in), Cone
- Frequency Response (-6 dB)
- 41 Hz - 98 Hz
- Frequency Range (-10 dB)
- 35 Hz - 111 Hz
- Nominal Coverage Angle
- Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
- Maximum Rated SPL1
- 136 dB @ 1 m (peak)
- Amplifier
- Class D
- 3600W (peak)
- Cooling
- Low-noise, variable speed fan
- Controls
- Power On/Off
- Gain Control
- Rotary encoder
- 2 × selection buttons
- Indicators
- 2 × Power LED (front and rear)
- Input Signal LED
- Limiter active LED

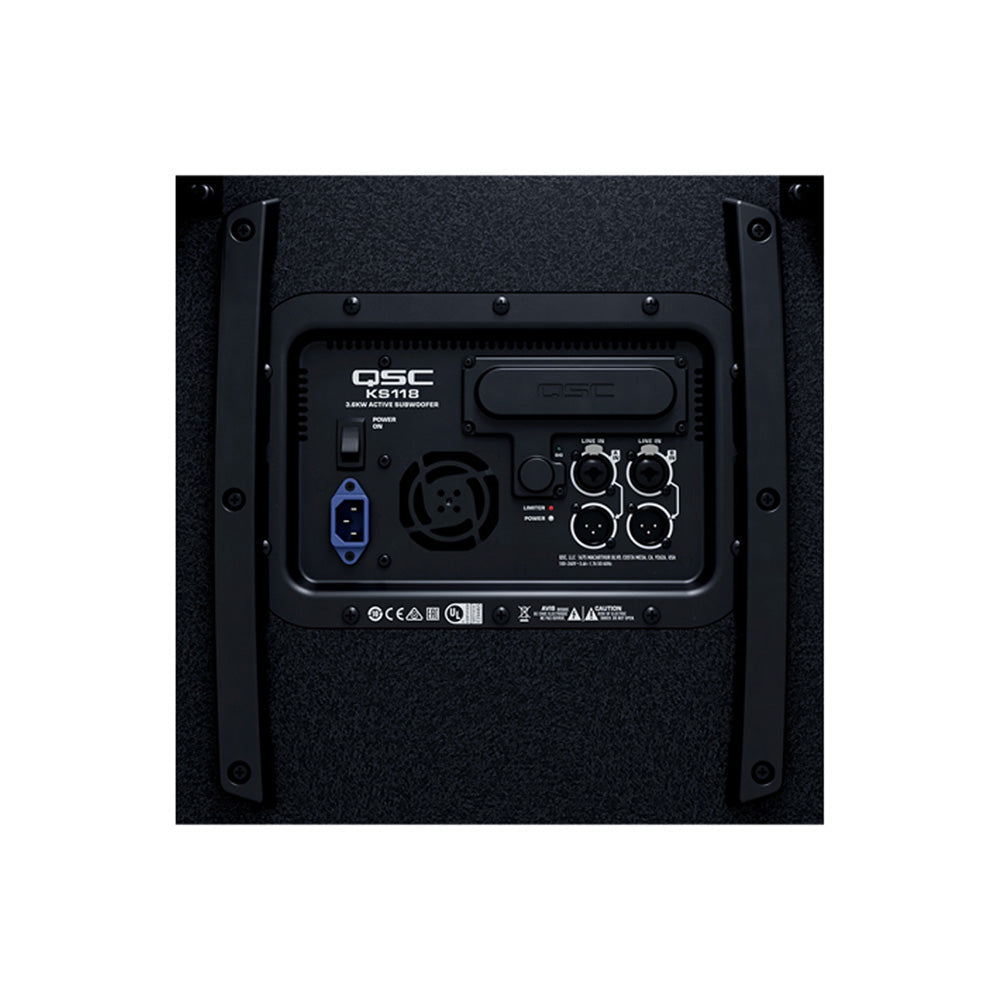

- Connectors
- 2 × locking XLR/F ¼ inch combo
- 2 × XLR/M (Loop-thru Output)
- 1 × locking IEC power connector
- AC Power Input
- Universal power supply 100 – 240 VAC, 50 – 60 Hz
- AC Power Consumption (⅛ power)
- 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A
Enclosure Details
- Enclosure
- 15 mm birch plywood
- Color
- Black (RAL 9011)
- Grille
- 16-gauge Black Powder Coated Steel
- Speaker Dimensions (H×W×D)
- 640 × 520 × 785 mm
- 2 × 20.5 × 30.9 in
- Carton Dimensions (H×W×D)
- 572 × 743 × 896 mm
- 5 × 29.3 × 35.3 in
- Net Weight
- 47 kg / 104 lb (including casters)
- Shipping Weight
- 5 kg / 124.6 lb
- Regulatory
- CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
- Included Accessories
- 4 × Low-Noise, Heavy Duty Casters
