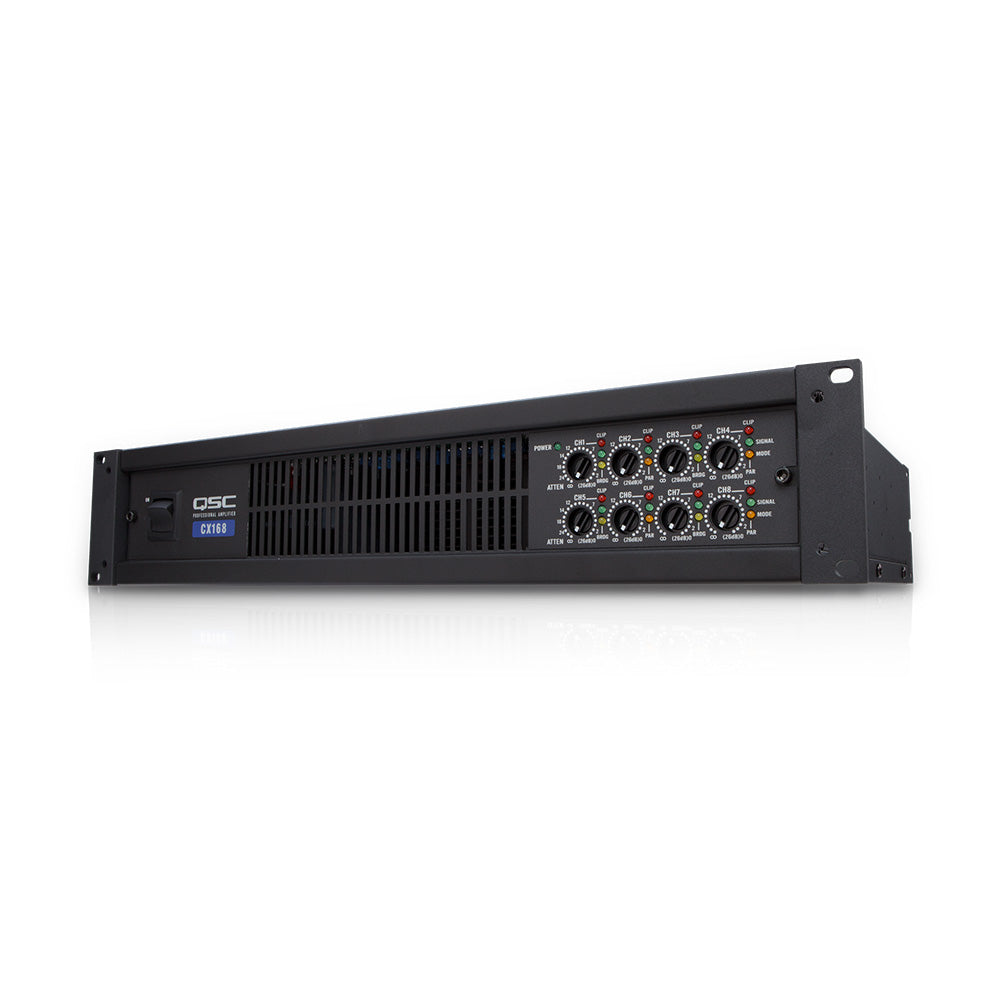

The CX168 provides a high level of channel density in a small,
lightweight form factor ideal for multi-zone audio systems.
Representing the culmination of QSC’s extensive experience
in power amplifier development, the CX168 is a highly
versatile, reliable, and user-friendly tool that will likely remain
a central component of your system for years to come.

• 90W per channel @ 8 Ω, 130W @ 4 Ω

• Channel pairs bridgeable for maximum flexibility

• PowerWave technology delivers tighter bass and cleaner highs

• Four HD-15 DataPort connectors (one per channel pair) for Q-SYS
• control/monitoring

• Power Ratings:

• 8 Ω, 0.05% THD: 90W

• 4 Ω, 0.1% THD: 130W

• Midband Rating, 8 Ω, 0.1% THD 1 kHz: 100W all channels, 120W single channel

• Midband Rating, 4 Ω, 0.1% THD 1 kHz: 140W all channels, 180W single channel

• 16 Ω 0.1% THD 20 Hz - 20 kHz: 180W

• 8 Ω 0.1% THD 20 Hz - 20 kHz: 260W

• Input Impedance: 6 kΩ unbalanced, 12 kΩ balanced

• Input Connectors: 3-pin Euro-style detachable terminal blocks (one per channel)

• Data Port Connector: HD-15 Connector (Ch 1+2, 3+4, 5+6, 7+8)

• Output Connector: Two 8-pin Euro-style detachable terminal blocks

• Front Controls: AC switch, Ch 1, 2, 3, 4, 5, 6, 7 and 8 gain knobs

• Rear Controls: DIP switches for Ch. 1 - Ch. 8, clip limiter on/off, LF filter on/off, LF
• filter freq select 33 or 70 Hz, inputs parallel or stereo; bridge mode

• Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF
• protection; Stable into reactive or mismatched loads

• Load Protection: On/off muting; individual channel DC fault blocking

• Dimensions (W x H x D): 19" x 3.5" x 14" (2 U)

• Weight: 21 lbs. net, 27 lbs. shipping
