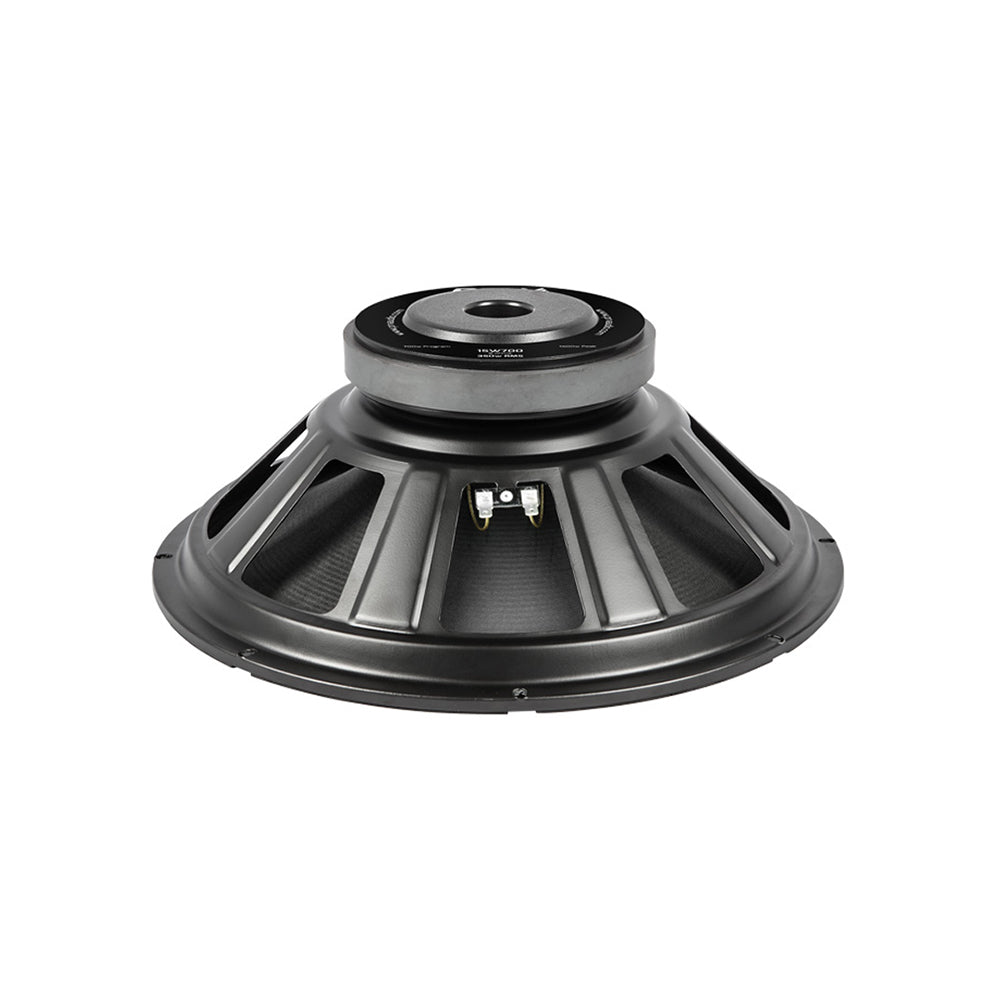

PRV Speakers 15W700 15" Pro Audio Woofer

The 15W700 15″ PRV Audio pro audio Woofer is a perfect drop in replacement for many full range loudspeaker applications and offers a smooth response from as low as 38hz and packs some punch in the mid bass range through 3,000 hz.

The voice 3” voice coil and suspension, ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling. If you are looking for an affordable drop-in replacement for your full range pro sound cabinets, try the 15W700. It’s the best-selling woofer at PRV Audio for a reason!

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 350 Watts
• Program Power: 700 Watts
• Sensitivity (1W/1m): 95 dB
• Voice Coil Diameter: 3″

• Nominal Diameter
  • 15″ (381 mm)
• Nominal impedance
  • 8 Ohms
• Rated AES Power Handling (RMS)
  • 350 Watts
• Program Power
  • 700 Watts
• Sensitivity 2.83V at 1m
  • 95 dB
• Recommended Hi Pass Crossover**
• **For Full Power Handling
  • 80 Hz**
  • **12db Per Octave Crossover
• Frequency Response at -10dB
  • 35 – 3,500 Hz
• Voice Coil Diameter
  • 3″ (76 mm)
• Voice Coil Wire
  • Copper
• Voice Coil Winding Depth
  • 5 mm
• Former Material
  • Kapton
• Magnetic Gap Depth
  • 5 mm
• Frame Material
• Stamped Steel
• Equivalent Volume
  • Vas 1 l
• Excursion (mathematical)***
  • Xmax 87 mm
• Free Air Resonance
  • Fs 69 Hz
• Mechanical Factor
  • Qms 27
• Electrical Factor
  • Qes 65
• Total Factor
  • Qts 62
• Cone Area
  • Sd 935 cm²
• Mechanical Mass
  • Mms 87 g
• Bl Factor
  • Bl 97 Tm
• Dc Resistance
  • Re 4 Ohms
• Inductance
  • Le 33 mH at 1 kHz
• Mechanical Mass Without Air
  • Mmd 70 g
• Mechanical Compliance
  • Cms 252 mm/N
