With their smooth, accurate frequency response; powerful amplification with tons of headroom; and acoustic tuning functions that ensure you always get the best sound... it's no wonder that the original Eris®-series studio monitors have been a runaway hit since their introduction. The Eris E7 XT builds on the Eris XT-series adding big, controlled bass in a compact form that will fit into a studio of nearly any size. Deep lows and a wide, more controlled sweet spot (thanks to its EBM waveguide design) mean that our best-selling studio monitors just got even better.

STUDIO SPEAKERS WITH A WIDE SWEET SPOT

We outfitted the Eris XT studio monitors with a new EBM (Elliptical Boundary Modeled) waveguide designed by none other than Hugh Sarvis of WorxAudio, the mind behind our award-winning CDL loudspeakers and lauded R-Series monitors. The result? A superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. It’s ideal for group listening and collaboration—while narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.

BASS THAT'S JUST RIGHT

The familiar woven composite low-frequency driver still offers Eris' signature tight, clear bass; plenty of punch and no flub. Eris E7 XT studio monitors sport a ported enclosure that is designed to maximize bass in a compact cabinet, allowing them to reach down to an astonishing 42 Hz—with no subwoofer required!

SET UP YOUR STUDIO MONITORS FOR YOUR ROOM

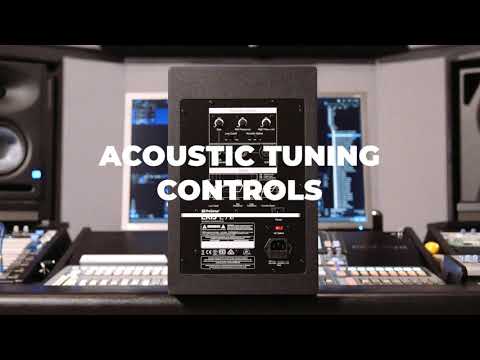

We know modern recording studios can be anywhere from a spare bedroom to a multi-million dollar facility; that's why every studio monitor we make is equipped with controls that ensure the flattest response in your mix environment. Acoustic tuning controls allow you to configure the Eris E7 XT perfectly for your room—you get Low-cut, Mid, and High controls, as well as 3-way acoustic space tuning that allows you to easily compensate for the sonic consequences of speaker placement against a wall or in a corner.

Inputs

• Balanced XLR
• Balanced ¼” TRS
• Unbalanced RCA

Performance

• Frequency Response: 42 Hz - 20 kHz
• Crossover Frequency: 2.5 kHz
• LF Amplifier Power: 75W
• HF Amplifier Power: 65W
• Peak SPL (@ 1 meter): 104 dB
• LF Driver: 6.5” reinforced woofer
• HF Driver: 1.25” silk dome tweeter
• Input Impedance: 10 kΩ
• Dispersion: 100 degrees horizontal by 60 degrees vertical

User Controls

• Volume Range A-type taper
• MF Control -6, 0, +6 dB
• HF Control -6, 0, +6 dB
• Low Cut Flat, 80 Hz, 100 Hz
• Acoustic Space Flat, -2 dB, -4 dB

Protection

• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• External mains fuse

Power

• 100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet

• Vinyl-laminated, medium-density fiberboard

Physical

• Width: 9.4” (240 mm)
• Depth: 9.5” (242 mm)
• Height: 14.4” (365 mm)
• Weight: 18.5 lbs (8.4 kg)
