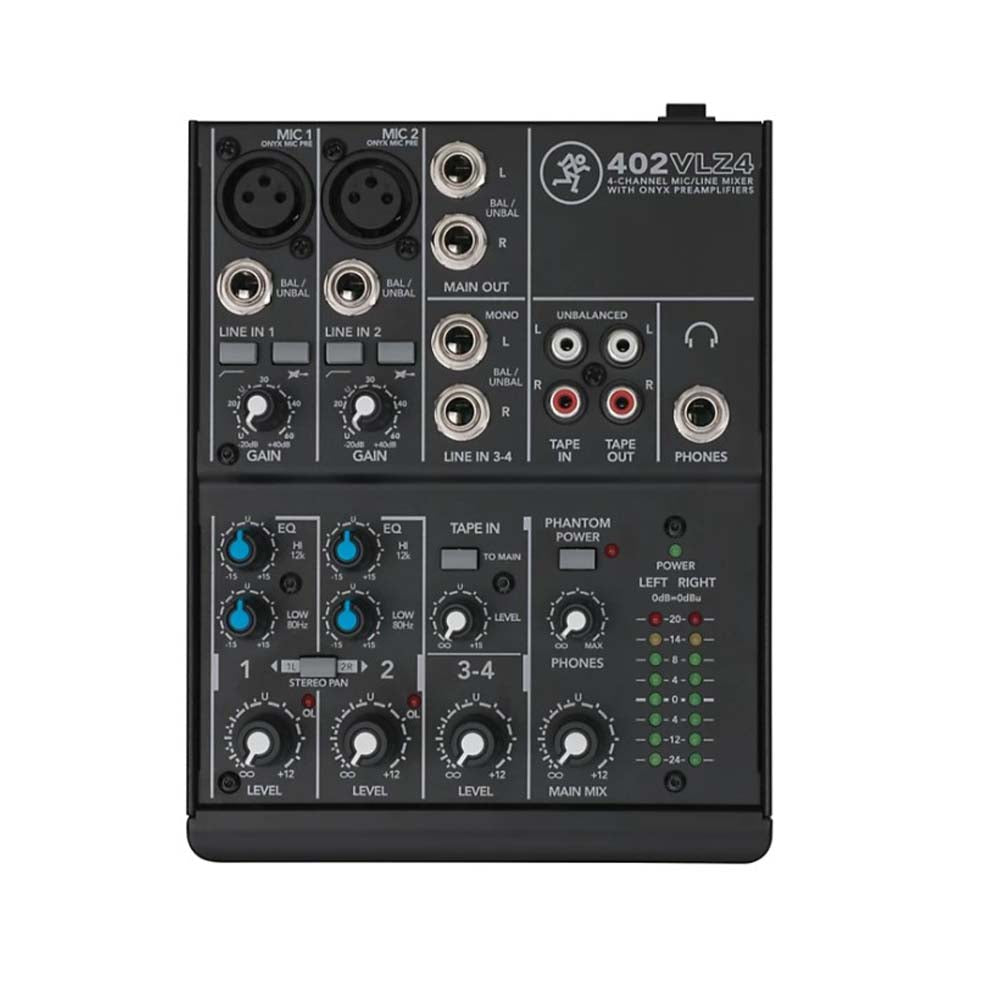

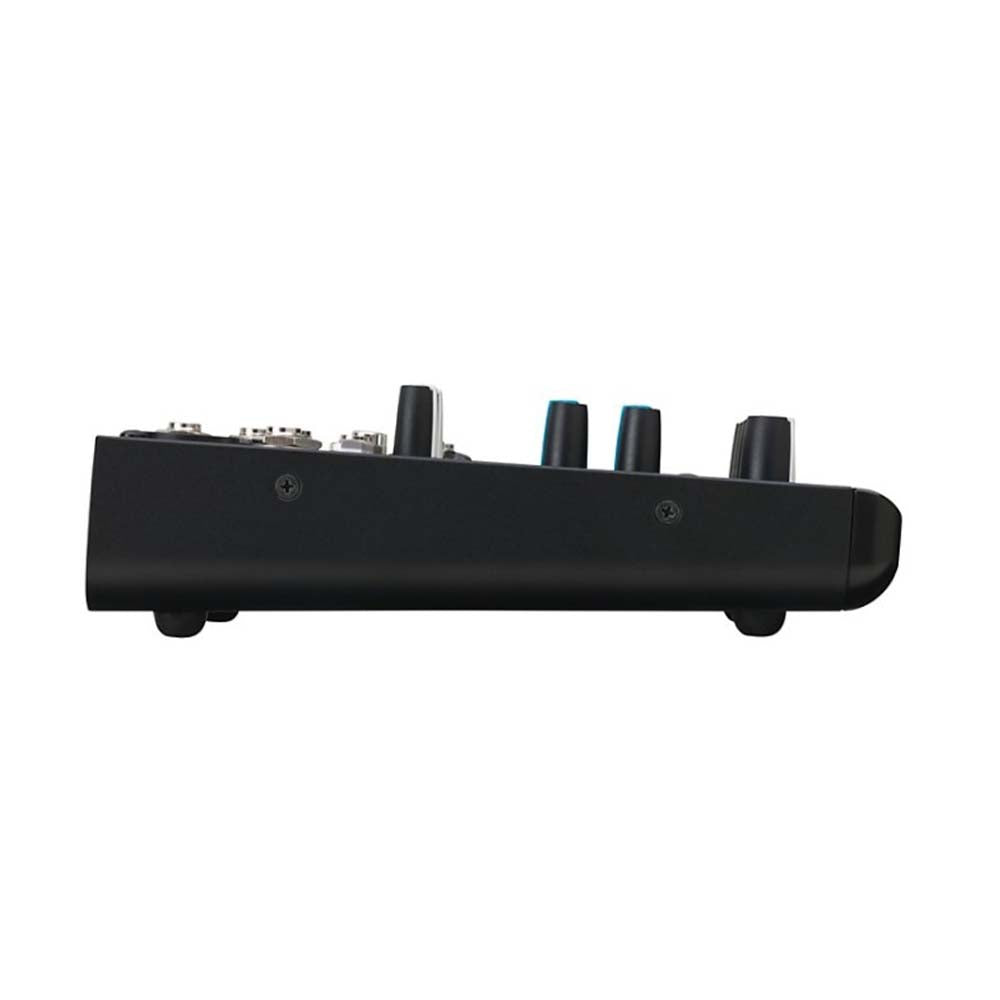

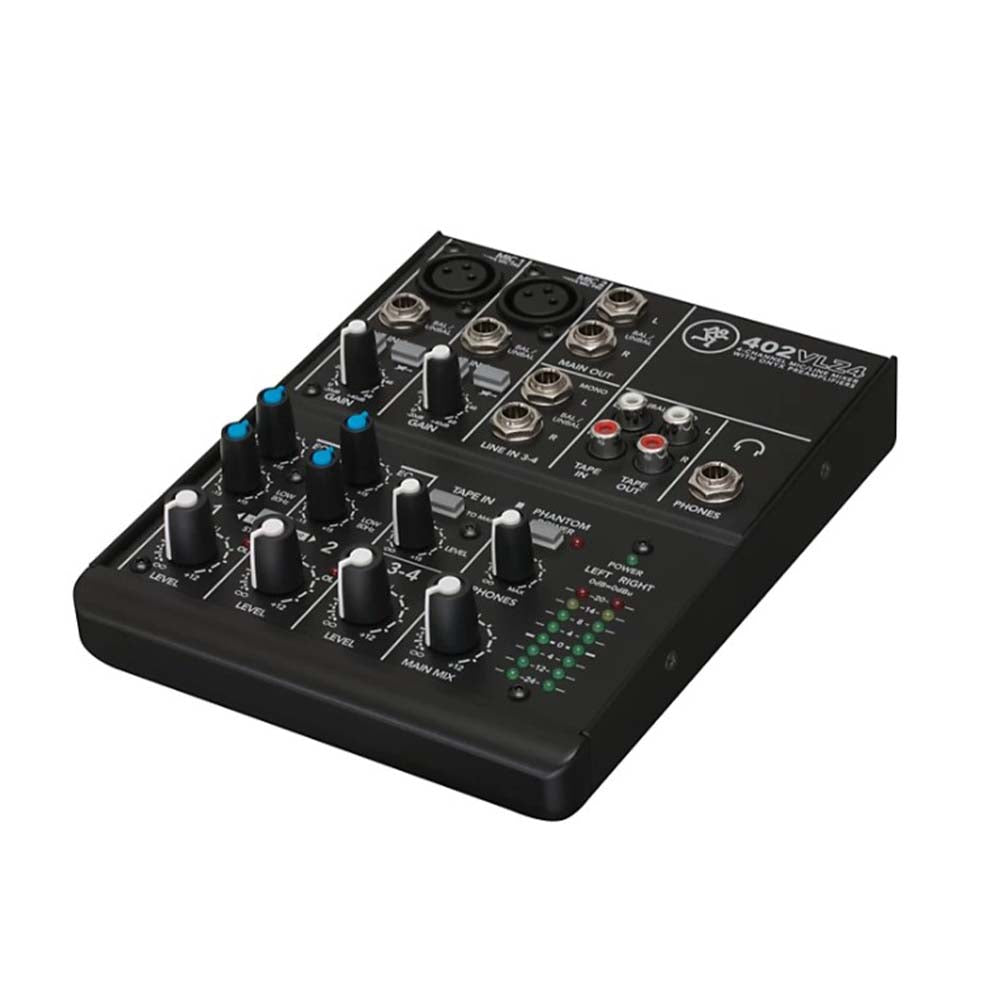

Mackie VLZ4 Series 402VLZ4 4-Channel Ultra Compact Mixer

Save 20%
MackieSKU: 402VLZ4

Price:
Sale price$103.99 Regular price$129.99

Description

Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie 1402VLZ delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

VLZ
Each generation of VLZ mixers benefits from a reinvestment in performance, all without raising prices. By continuing to ignore the "race to the bottom," VLZ4 benefits from generations of performance improvements like transparent EQ, class-leading negative summing bus architecture and custom-designed op-amps to ensure signal integrity from every input to every output. The result is a mixer that is at the peak of performance and is the obvious go-to compact analog mixer for engineers who demand professional results.

Features

  • Boutique-quality Onyx mic preamps
  • High-headroom, low-noise
  • Rugged steel chassis
  • Phantom power for condenser mics
  • High-resolution 8-segment stereo meters
  • Sealed rotary controls resist dust and grime
Main Mix Noise
  • (20 Hz-20 kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3-8 centered.)
  • Main mix knob down, channel level knobs down: XLR: -95 dBu TRS: -101 dBu
  • Main mix knob @ unity, channel level knobs down: XLR -90 dBu, TRS -96 dBu
  • Main mix knob @ unity, channel level knobs @ unity: XLR dBu-84, TRS dBu -90
THD
  • (1 kHz @ 30 dB gain, 20 Hz-20 kHz bandwidth) Mic pre @ insert: <0.001%
EQ
  • High Shelving
  • Low Shelving
Attenuation/Crosstalk
  • (1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
  • Main mix knob down: -75 dBu
  • Channel Alt / Mute switch engaged: -100 dBu
  • Channel level knob down: -100 dBu
  • Frequency Response
  • Mic input to main output (gain @ unity)
  • +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz
  • Equivalent Input Noise (EIN)
  • (Mic input to insert send out, max gain)
  • 150 termination: -128.5 dBu, 20 Hz-20 kHz
Common Mode Rejection Ratio (CMRR)
  • 1 kHz: better than -70 dB
Maximum Levels
  • Mic in: +21 dBu
  • Tape in: +24 dBu
  • All other inputs: +22 dBu
  • All outputs: +22 dBu
Impedances
  • Mic in: 2.55
  • Channel insert return: 5K
  • All other inputs: 17K or greater
  • Tape out: 1.0K
  • Phones out: 60
  • All other outputs: 120
Physical Properties
  • Height: 7.3"
  • Depth: 1.6"
  • Width: 5.8"
  • Weight (with power supply): 3.0lb
  • Weight (without power supply): 2.5lb
