The next-generation JBL 305P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and, sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Patented Image Control Waveguide

They reveal an impressive detail, atmosphere, and depth in your mixes thanks to JBL's revolutionary Image Control Waveguide. Originally developed for the JBL M2 Master Reference Monitor, this patented innovation ensures a smooth acoustic transition between low and high frequency transducers and offers an immersive soundstage with precise imaging. Offering a wide optimum point and neutral frequency response, the JBL 305P MkII offers a representation of your mix - revealing subtle details, even when they hear outside the axis.

Great Sound Out of the Box

The JBL 305P MkII is ready for the most demanding production styles directly outside the house. Dual Class D integrated active amplifiers, personally designed by JBL for each transducer, gives you a generous and dynamic range for any project. From music production and podcasting to cinematic audio design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume - even at peak SPLs. Simply connect, turn on, and start creating.

Custom Made Sound For Your Studio

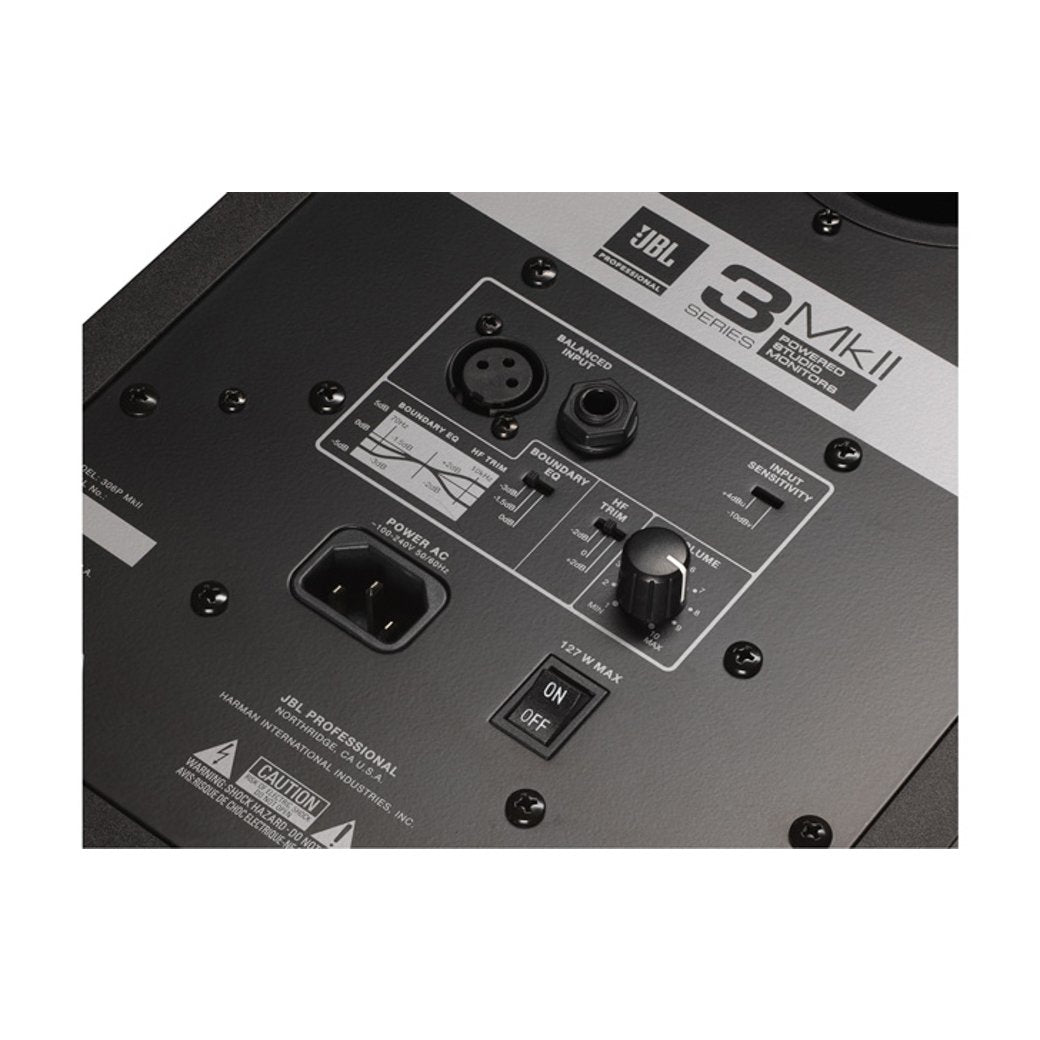

The dimensions and acoustics of a room can have a great effect on sonic accuracy, and that is why the JBL 305P MkII allows you to adjust the response to fit your studio. The new Boundary EQ attenuates the lower limit impulse that can occur when you put monitors directly on the desk or walls that are nearby. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 305P MkII to suit the acoustics of the room or personal preference.

JBL Professional Reliability

General Specifications

• LF Driver Size: 127 mm (5")
• HF Driver Size: 25 mm (1")
• HF Driver Type: Soft dome
• Crossover: 1725Hz 4th order acoustic Linkwitz-Riley
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 41 W Class D
• LF Driver Power Amp: 41 W Class D
• Frequency Response: 49Hz – 20kHz (±3dB)
• Frequency Range: 43Hz – 20kHz (-10dB)
• Low Frequency Extension: 43Hz (-10dB)
• Maximum Continuous: SPL94dB
• Maximum Peak: SPL108dB
• Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Pattern: 120° x 90° (horizontal x vertical)
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz

Dimensions

• Height: 298 mm (11.7")
• Width: 185 mm (7.3")
• Depth: 231 mm (9.1")
• Net Weight: 4.73 kg (10.43 lbs)

Design

• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS

Audio Input

• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• Input Sensitivity: 92dB / 1m (-10dBV Input)
