The PSE system is a UHF diversity receiver with 16 selectable channels. The multi channel microphone receiver features a volume control, channel display, Diversity Antennas and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with a handheld, body pack with headset, lav, or instrument cable.
The PSER can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2 AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.

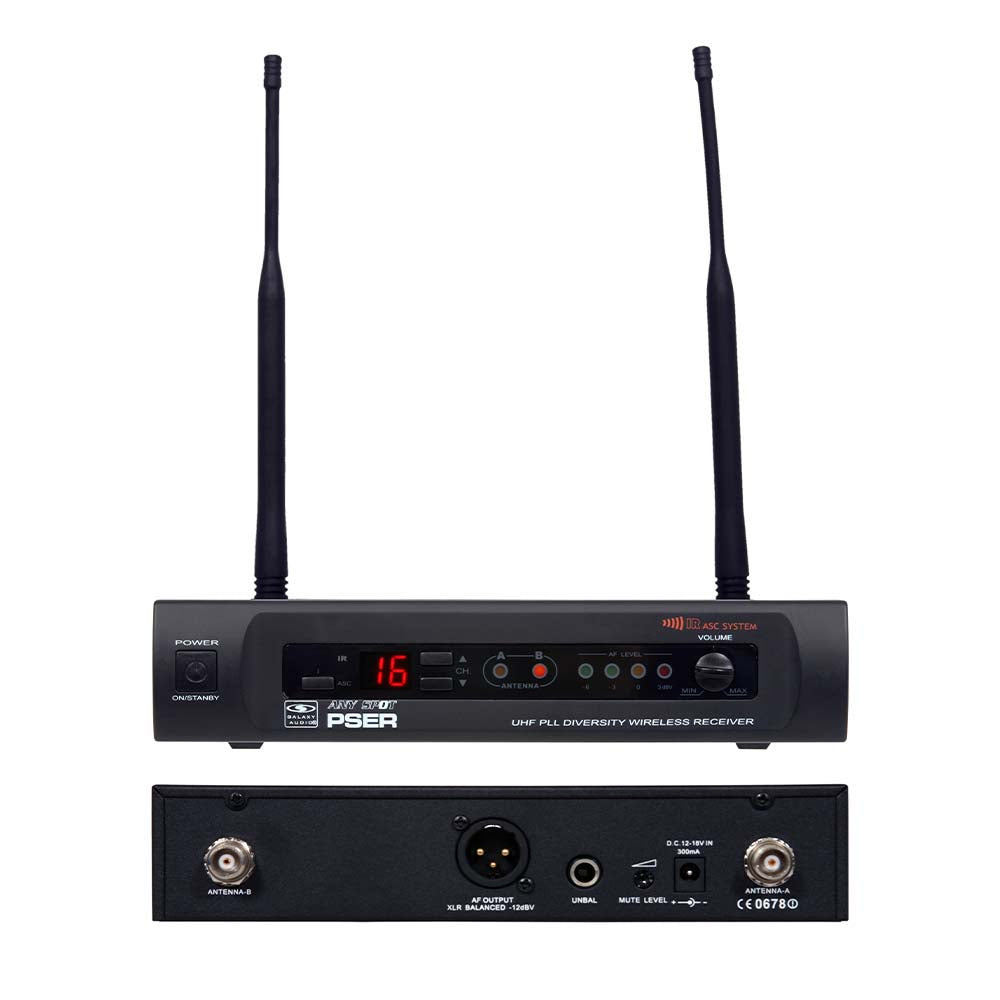

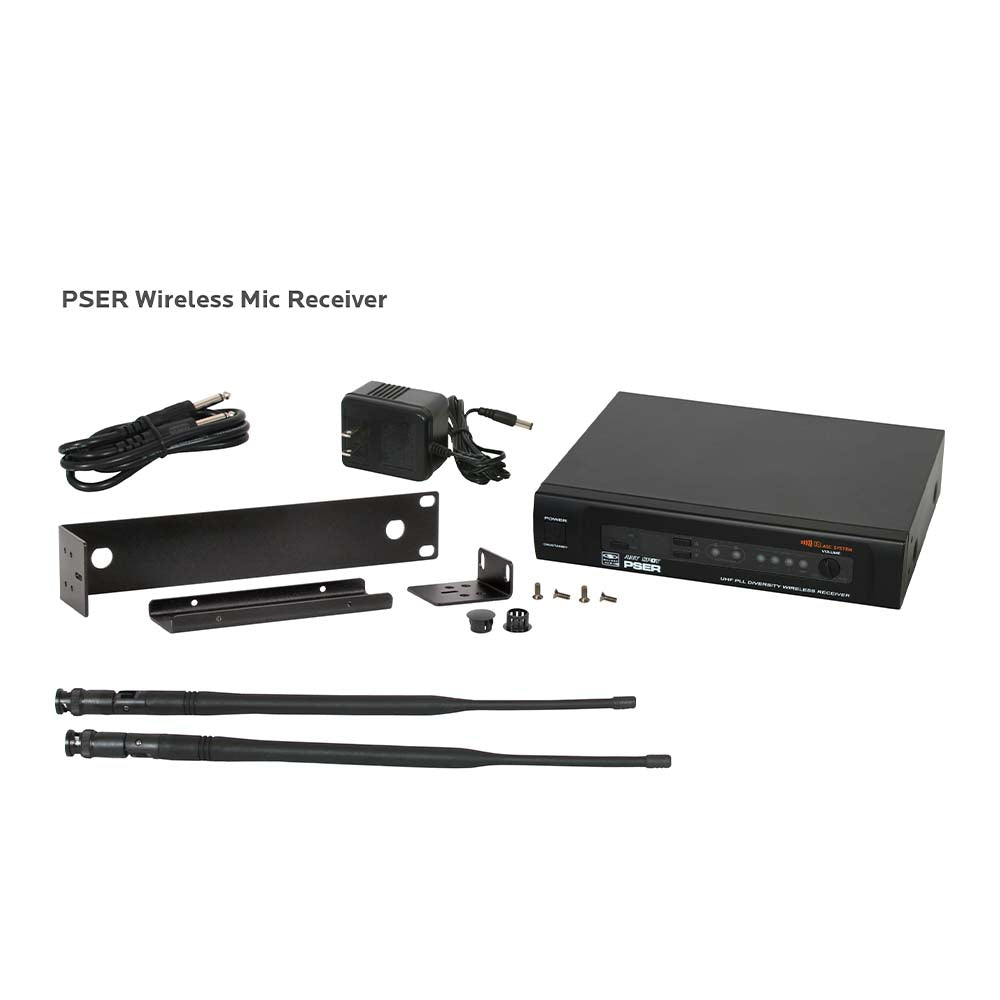

PSER Receiver
- Output Volume Control
- IR Sync Receiver to Transmitter
- AF Level Indicator
- Active Antenna Indicator
- Squelch Adjustment
- XLR / 1/4" Outputs
- Detachable BNC Antennas
- Metal Chassis

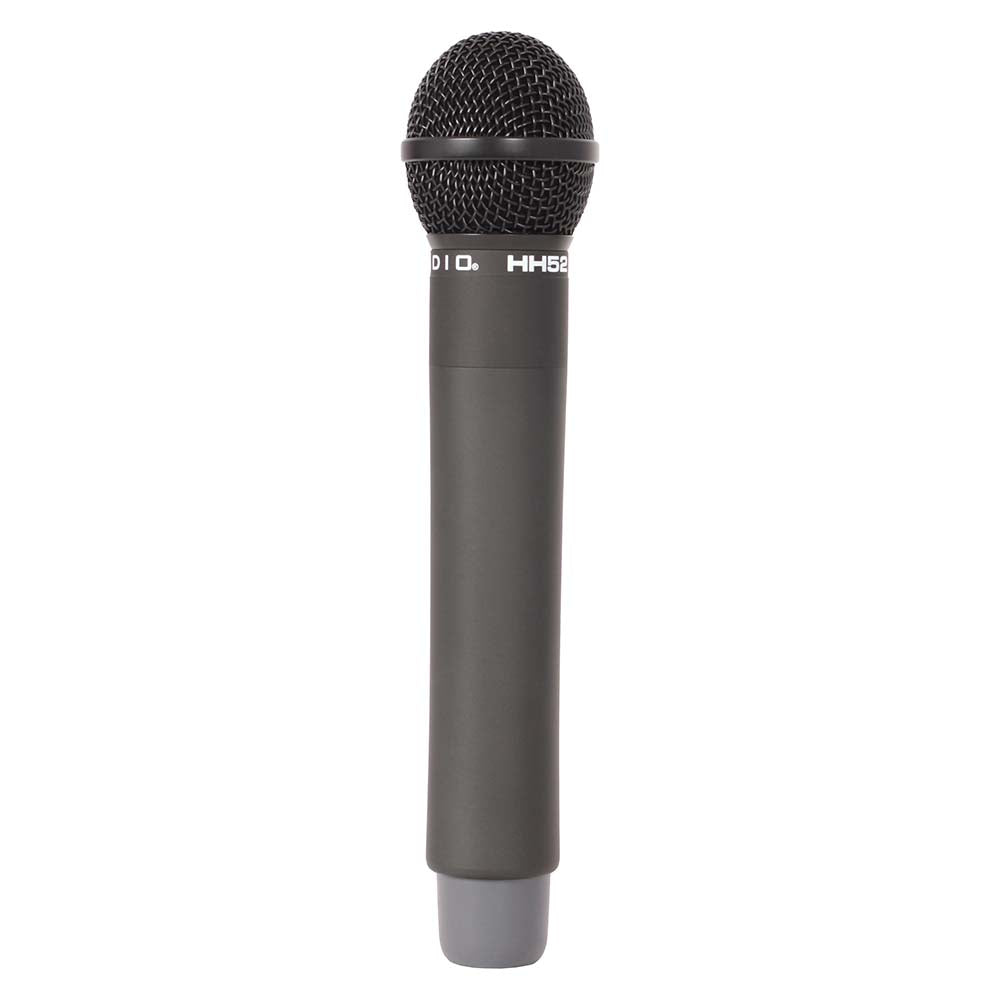

HH52 Transmitter
- Dynamic Microphone Element
- On/Off Switch
- IR Sync Transmitter to Receiver
- High/Low RF Switch
- 10 mW / 5 mW
- Metal Chassis
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
- Weight: 9.5 oz. (270 g)

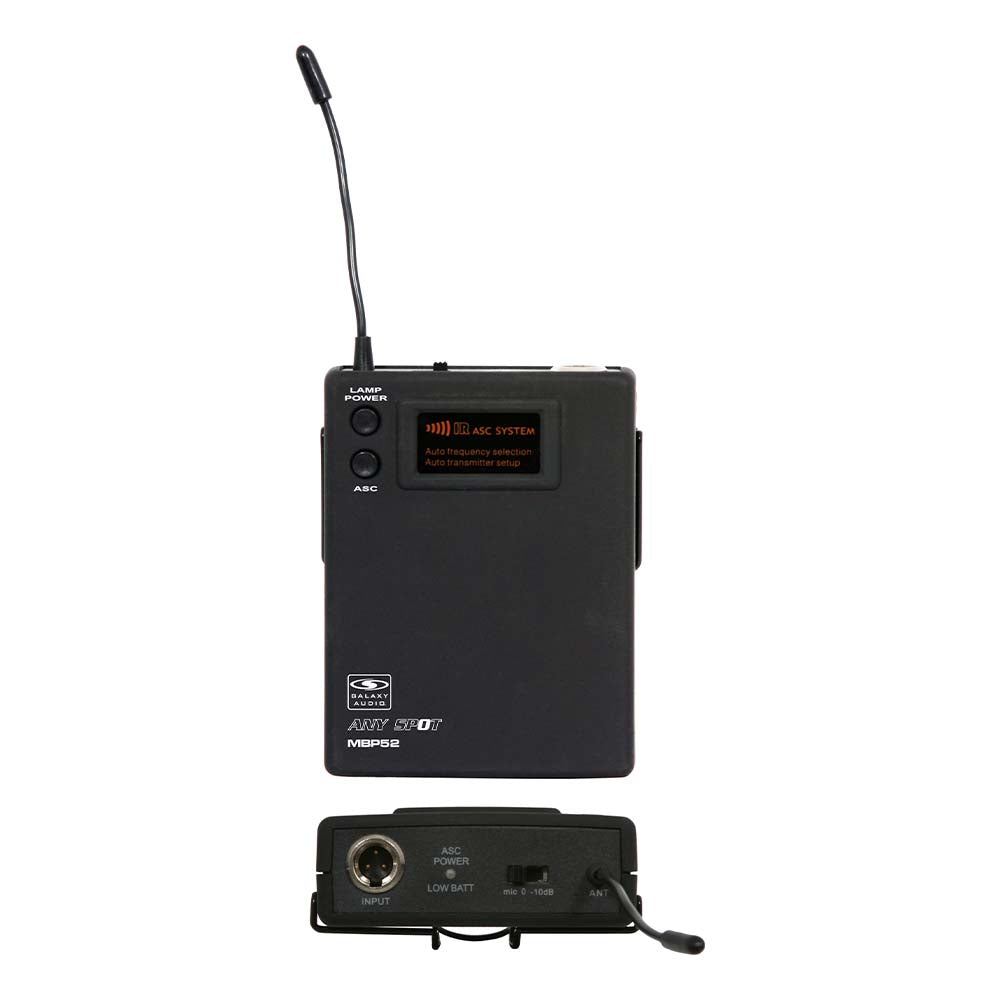

MBP52 Transmitter
- Low Battery Indicator
- 3 Position Switch
- IR Sync Transmitter to Receiver
- Mic/0/-10dB
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
- Weight: 2.8 oz (80 g)
