Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

iTrack Solo isn’t just for recording. Connect your speakers, crank up the volume and totally immerse yourself in the sound of your music, apps, video games, movies – or anything else.

Fewer cables means less clutter. You only need to plug iTrack Solo into the mains if you’re using it with iPad. Otherwise, your USB connection will power it.

IDEAL FOR iPAD

Certified by Apple and compatible with any Lightning™ iPad: iPad Pro, iPad mini, iPad mini with Retina Display, iPad (4th gen and up) and iPad Air.

YOU ALREADY KNOW HOW

You don't need to learn anything new. Record your songs directly into Garageband, Cubasis, Auria and many other apps.

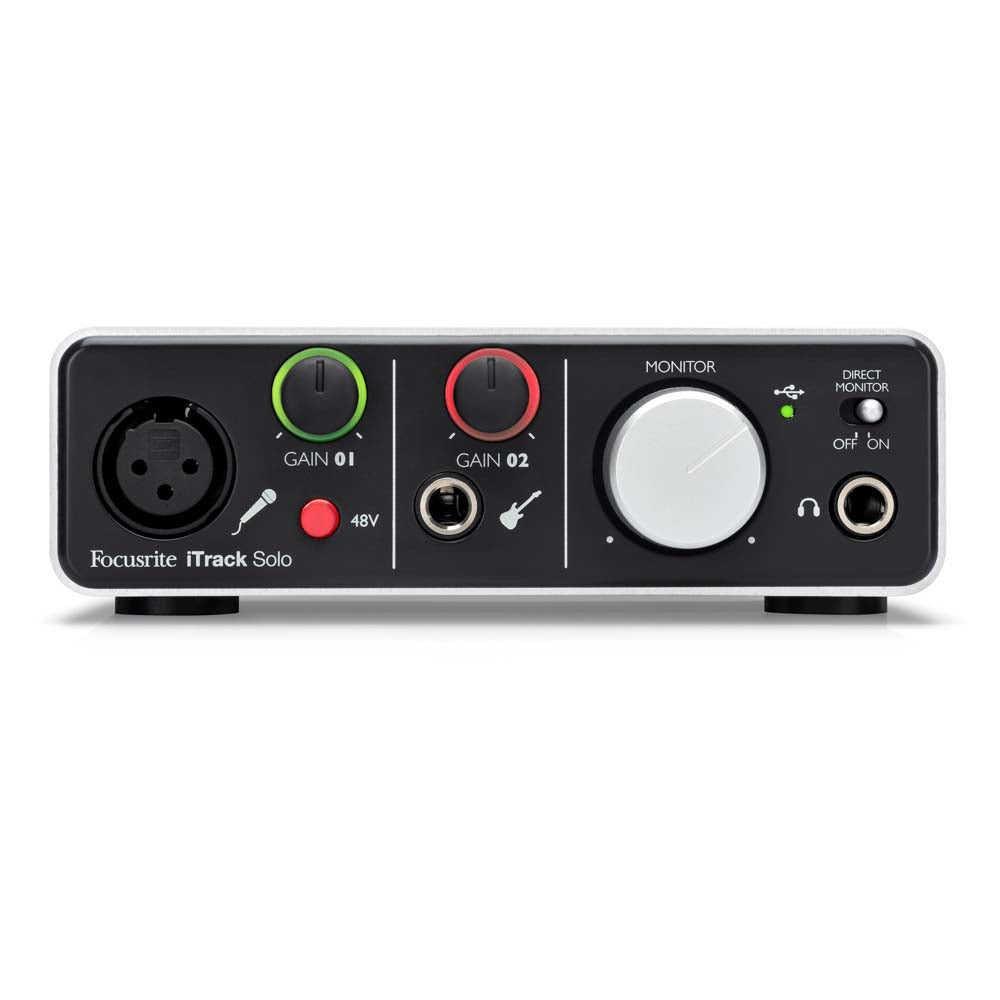

FRONT PANEL

• 1 microphone input - XLR
• 1 Instrument input ¼’ unbalanced
• 2 Gain knobs
• 2 Gain halo signal indicators
• 48V Phantom power switch
• Direct monitor switch
• Large monitor level dial (controls headphone and line level outputs)
• USB Connection LED indicator
• Headphone output ¼’ TRS Jack

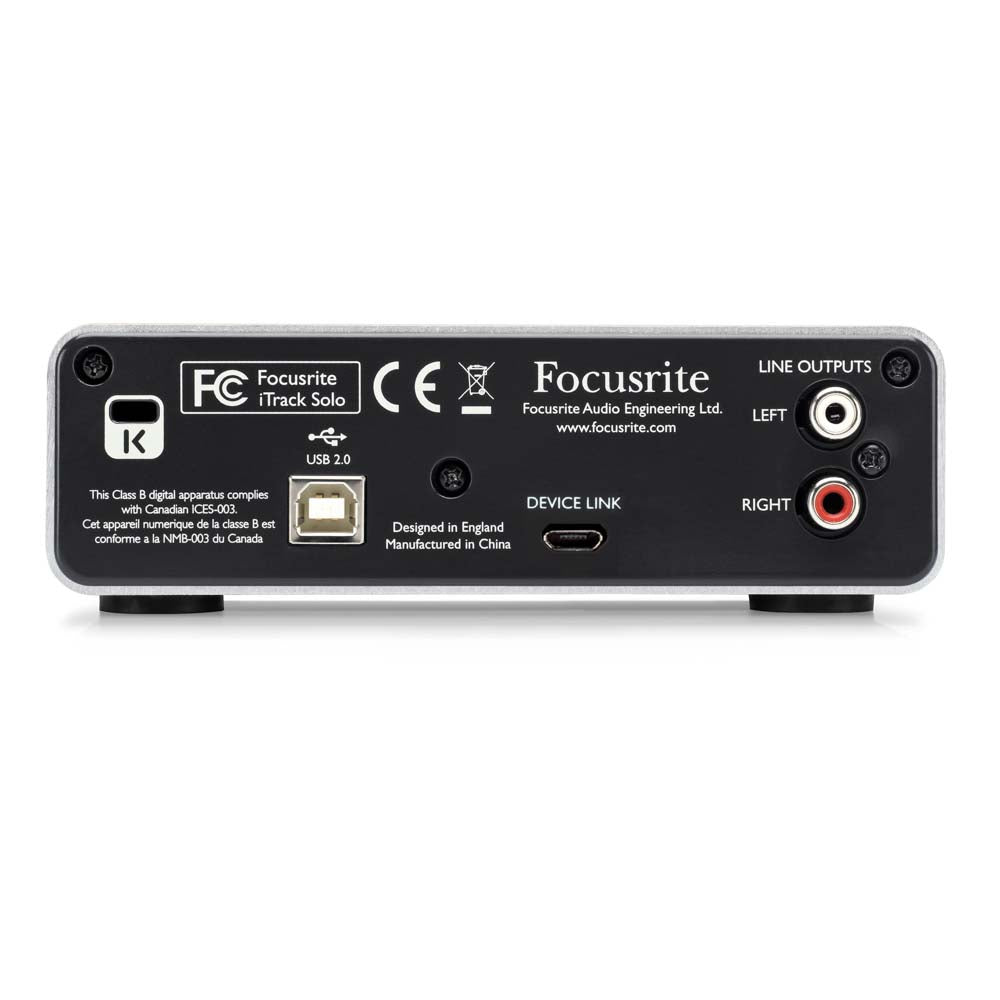

REAR PANEL

• 2 unbalanced monitor outputs - RCA Phono
• DEVICE LINK port (to connect iTrack Solo to iPad)
• USB 2.0 Port
• Kensington Lock slot

INCLUDED SOFTWARE

• Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.
• Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).

MIC ANALOGUE INPUT PERFORMANCE

• Frequency Response: 20Hz - 20kHz +/- 0.2 dB
• THD+N: < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
• Equivalent Input Noise (EIN): < -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter)
• Gain Range: +10dB to +55dB
• Max Input Level: +4dBu

INSTRUMENT

• Frequency Response: 20Hz - 20kHz +/- 0.2dB
• THD+N: 0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter)
• Noise: -87dBu (22Hz/22kHz bandpass filter)
• Gain Range: -10dB to +55dB
• Max Input Level: +2dBu

ANALOGUE OUTPUT PERFORMANCE

• Nominal Output Level: 0dBFS = 10dBu, unbalanced
• Frequency Response: 20Hz - 20kHz +/- 0.2dB
• THD+N:< 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)

DIGITAL PERFORMANCE

• Clock sources: Internal clock only
• A-D Dynamic Range: 105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
• D-A Dynamic Range: 105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
• Supported sample rates: 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC 44.1 KHz, 48 KHz - iPad

CROSSTALK

• Input to Input: Better than 90dB
• Output to Output: Better than 90dB
• Input to Output: Better than 85dB

INPUT METERING

• Ring LED lit Green Signal present (-24 dBFS)
• Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second

WEIGHT AND DIMENSIONS

• Height 45 mm / 1.77'
• Width 150 mm / 6'
• Depth 100 mm / 4'
• Weight 500 g / 1 lb

IN THE BOX

• iTrack Solo
• 2m USB cable
• 2m "DEVICE LINK" cable (to connect to a Lightning iPad)
• Getting started guide
• Registration card
• Download card for Ableton Live Lite / Scarlett Plug-in Suite
• USB power supply (US only)
