DAS Event-26A (2) Line Array with Event-115A (1) Subwoofer Bundle

Save 12%
DAS AudioSKU: EVENT26A-EVENT115A-Bundle
Model: EVENT
No reviews
Price:
$4,599.00 $5,231.55

Payment & Security

Amazon Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

This bundle includes:

    • EVENT-26A Compact Line Array (2)
    • EVENT-115A Powered Subwoofer (1)
    • SS7745 (1)

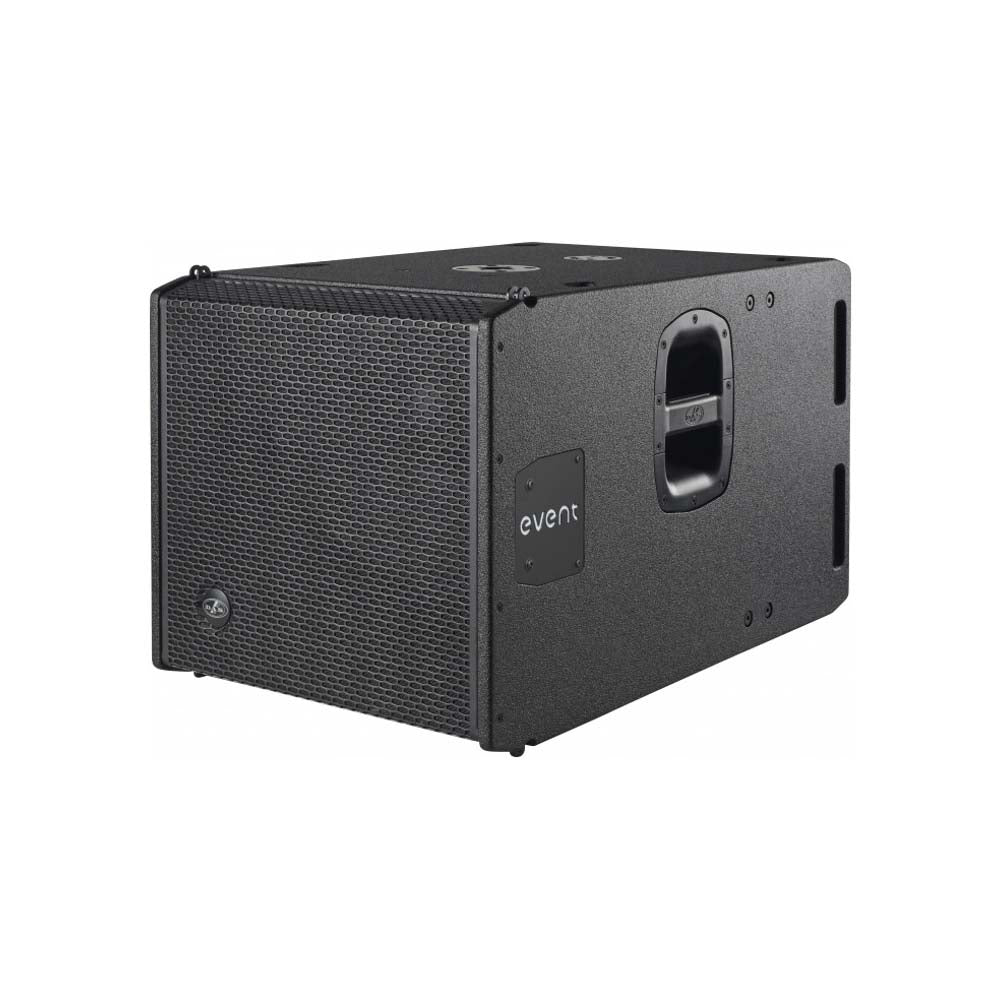

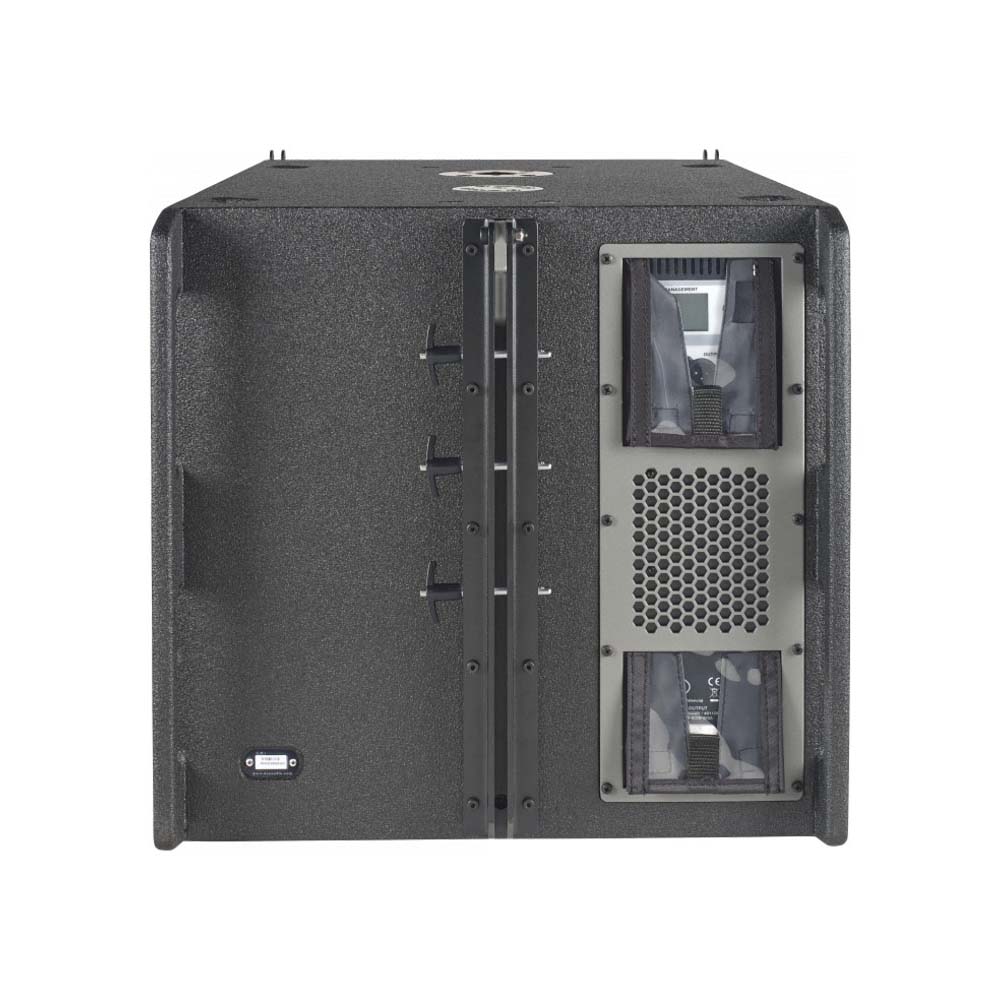

The EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.


The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.



SPECIFICATIONS

Performance

  • Frequency Range (-10 dB) 40 Hz – 125 Hz
  • Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors

  • Nominal Amplifier Power (continuous) 600 W
  • Nominal Amplifier Power (peak) 1200 W
  • Input Type Balanced
  • Input Impedance 20 kohms
  • Input Sensitivity 95 V (+8 dBu)
  • Audio Signal Input Connector 2 x Female XLR
  • Audio Signal Loop Thru Connector 2 x Male XLR
  • Control DAScontrol™
  • AC Input Connector powerCON NAC3MPA
  • AC Output Connector powerCON NAC3MPB
  • Operating Range 90-250 VAC
  • Current Draw 115 V 8 A
  • Current Draw 230 V 4 A

Enclosure

  • Enclosure Construction Birch Plywood
  • Enclosure Geometry Rectangular
  • Rigging Captive Rigging System
  • Finish ISO-flex Paint
  • Color Black
  • IP Rating IP43
  • Dimensions ( H x W x D ) 481 x 485 x 770 mm
  • 18,9 x 19,1 x 30,3 in
  • Net Weight 37,0 kg ( 81,5 lb )

Components

  • LF Driver 15FW4

Shipping

  • Carton Dimensions ( H x W x D ) 530 x 550 x 860 mm
  • 9 x 21.7 x 33.9 in
  • Shipping Weight 5 kg ( 89.1 lb )

DESCRIPTION

The EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.


The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
SPECIFICATIONS

Performance

  • Frequency Range (-10 dB) 40 Hz – 125 Hz
  • Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors

  • Nominal Amplifier Power (continuous) 600 W
  • Nominal Amplifier Power (peak) 1200 W
  • Input Type Balanced
  • Input Impeadance 20 kohms
  • Input Sensitivity 95 V (+8 dBu)
  • Audio Signal Input Connector 2 x Female XLR
  • Audio Signal Loop Thru Connector 2 x Male XLR
  • Control DAScontrol™
  • AC Input Connector powerCON NAC3MPA
  • AC Output Connector powerCON NAC3MPB
  • Operating Range 90-250 VAC
  • Current Draw 115 V 8 A
  • Current Draw 230 V 4 A

Enclosure

  • Enclosure Construction Birch Plywood
  • Enclosure Geometry Rectangular
  • Rigging Captive Rigging System
  • Finish ISO-flex Paint
  • Color Black
  • IP Rating IP43
  • Dimensions ( H x W x D ) 481 x 485 x 770 mm
  • 18,9 x 19,1 x 30,3 in
  • Net Weight 37,0 kg ( 81,5 lb )

Components

  • LF Driver 15FW4

Shipping

  • Carton Dimensions ( H x W x D ) 530 x 550 x 860 mm
  • 9 x 21.7 x 33.9 in
  • Shipping Weight 5 kg ( 89.1 lb )
