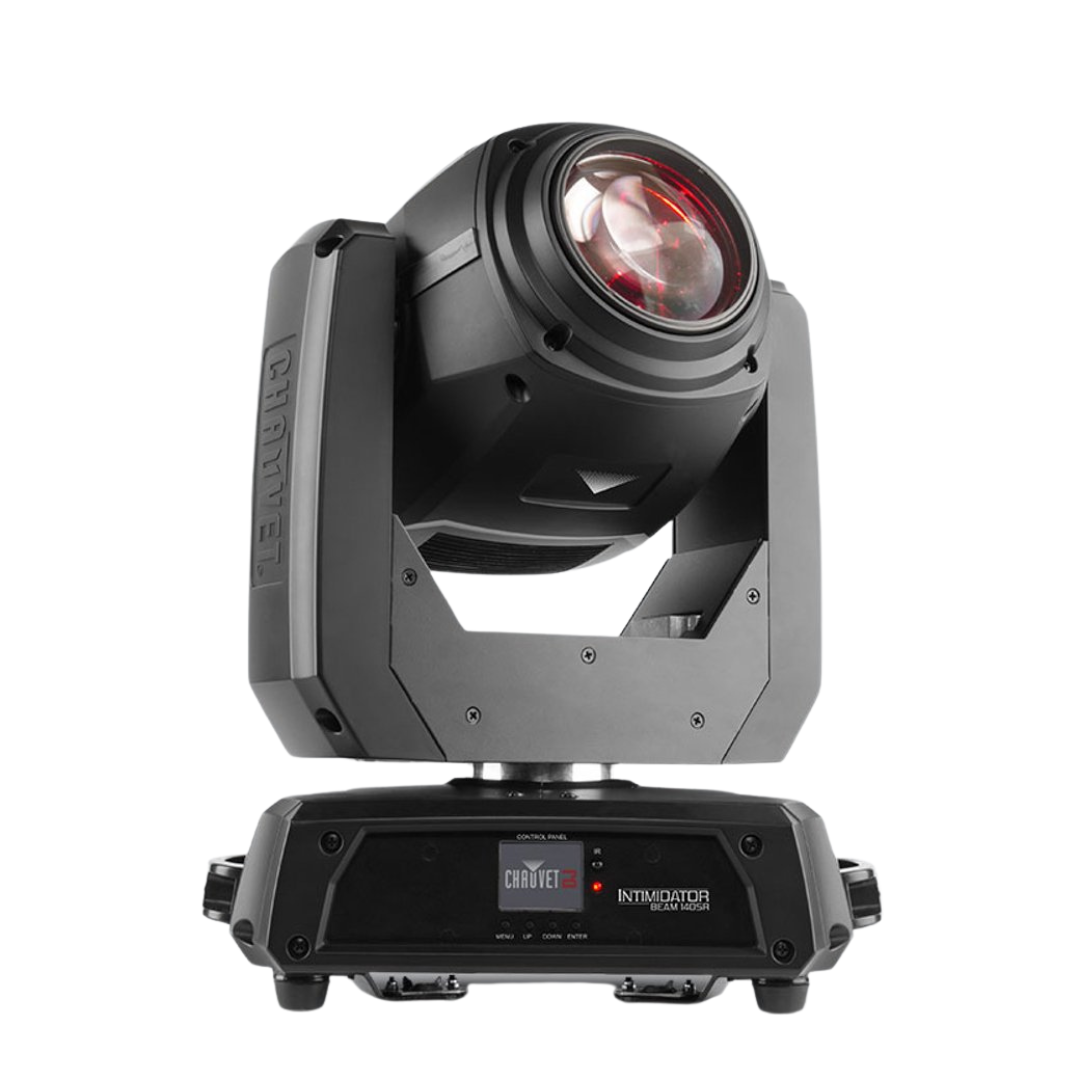

Intimidator Beam 140SR is a cutting-edge moving head beam fitted with a bright 140 W discharge light engine. Its motorized frost filter converts the tight beam to a wide wash for different applications and an impressive 16-facet prism splits the beam and intensifies the display. The built-in totem mode keeps the light on and over the dance floor. Non-DMX control is available with the optional IRC-6 wireless remote. On-board power linking saves time running extension cords. A unique ¼-turn hanging bracket allows for single or dual clamp mounting options. Fits best in the CHS-50 VIP gear bag.

• Cutting-edge moving head beam fitted with an intense 140 W discharge light engine
• Impressive 16-facet prism splits the beam and intensifies the excitement
• Motorized frost filter converts the tight beam to a wide wash for different applications
• Built-in totem mode keeps the light on and over the dance floor
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Non-DMX control with the optional IRC-6 wireless remote
• On-board power linking saves time running extension cords
• Motorized Focus
• Fits best in the CHS-50 VIP gear bag

• DMX Channels: 8 or 14

• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 17 + open (all aluminum), fixed, continuous scroll at variable speeds
• Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
• (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
• Strobe Rate: 0 to 20 Hz
• Beam Angle: (beam): 3°
• (frost): 21°
• Illuminance: (5 m): 381,500 lux
• (15 m): 37,900 lux
• Power Linking: 3 units @ 120 V; 6 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 228 W, 2 A @ 120 V, 60 Hz
• 224 W, 1.2 A @ 230 V, 50 Hz
• Weight: 25.8 lb (11.7 kg)
• Size: 12.7 x 8.6 x 16.5 in (322 x 220 x 420 mm)
• Approvals: CE, MET
• Optional Controllers: IRC-6
• Prism: 16-facet round, bidirectional rotation at variable speeds

• Power cord
• Hanging bracket
• Warranty card
• Quick Reference Guide
