Allen & Heath SQ-5 48-channel Digital Mixer

Allen & HeathSKU: AH-SQ-5

Price:
Sale price$3,999.99

Description

Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ-5 is built for professionals in the most demanding live sound applications. Delivering class-leading high resolution audio with an ultra-low <0.7ms latency, the SQ-5 gives you unrivalled power and audio fidelity. The mixer has 16 onboard preamps and 8 stereo FX engines with dedicated return channels and access to the acclaimed RackExtra FX library. 12 stereo mixes (configurable as groups or auxes) make SQ the perfect companion for in-ear monitoring setups, whilst Automatic Mic Mixing takes the strain in multi-mic environments. SQ-5 gives you all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.

SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

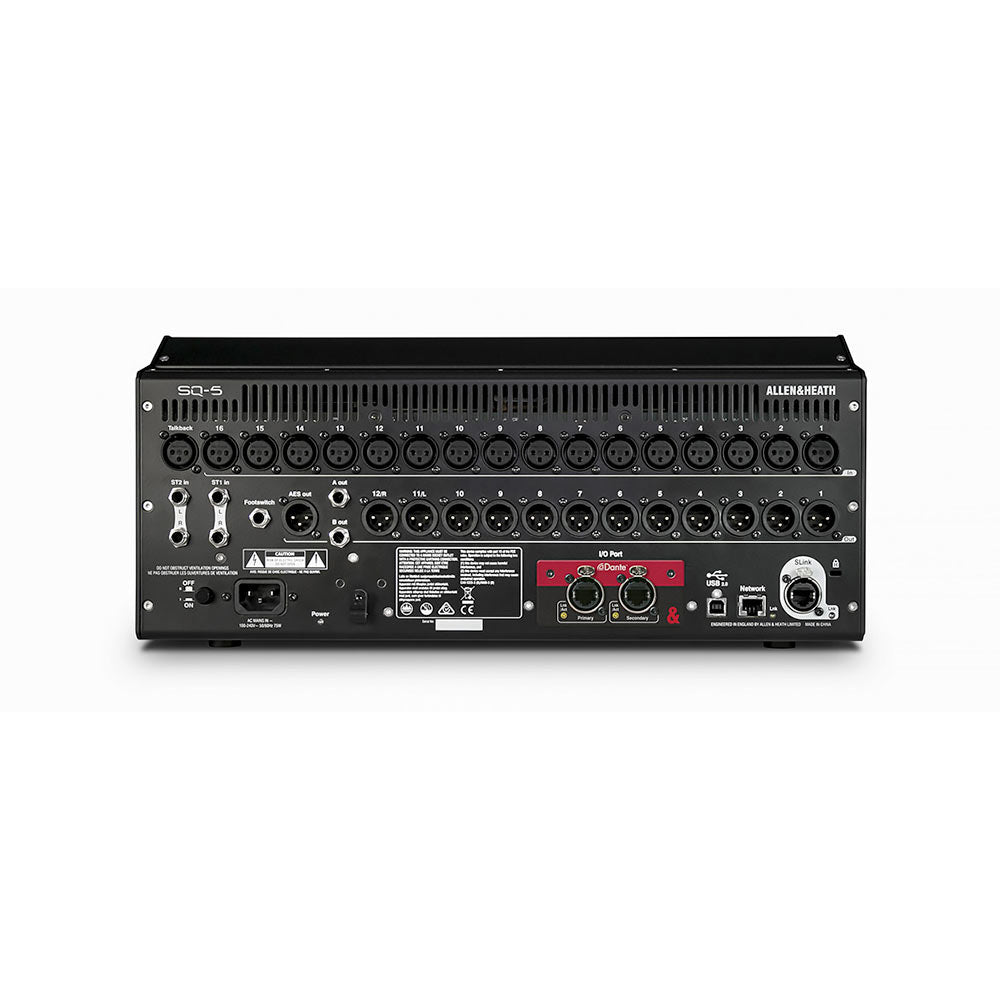

SQ-5 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 17 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated returns
  • 7” capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32×32 USB audio interface

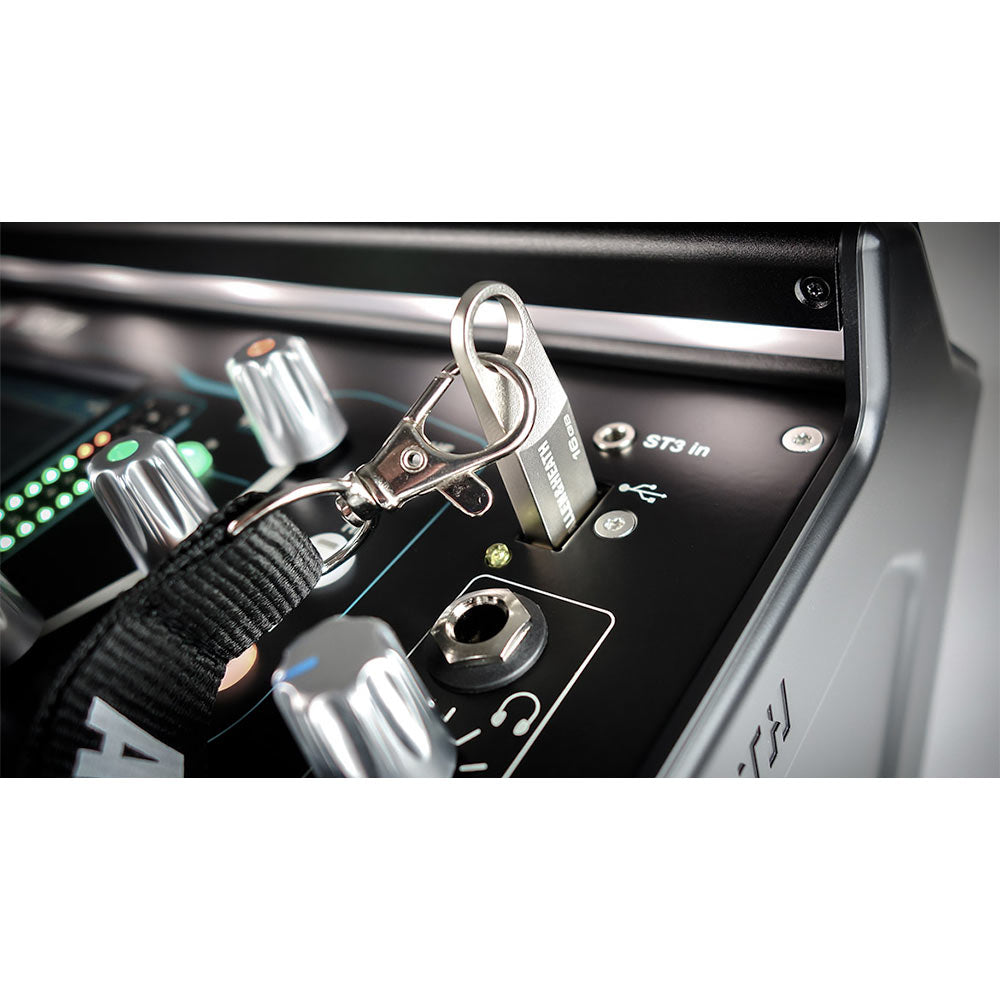

  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 8 Assignable SoftKeys
  • Channel LCD displays
  • 19” rack mountable
