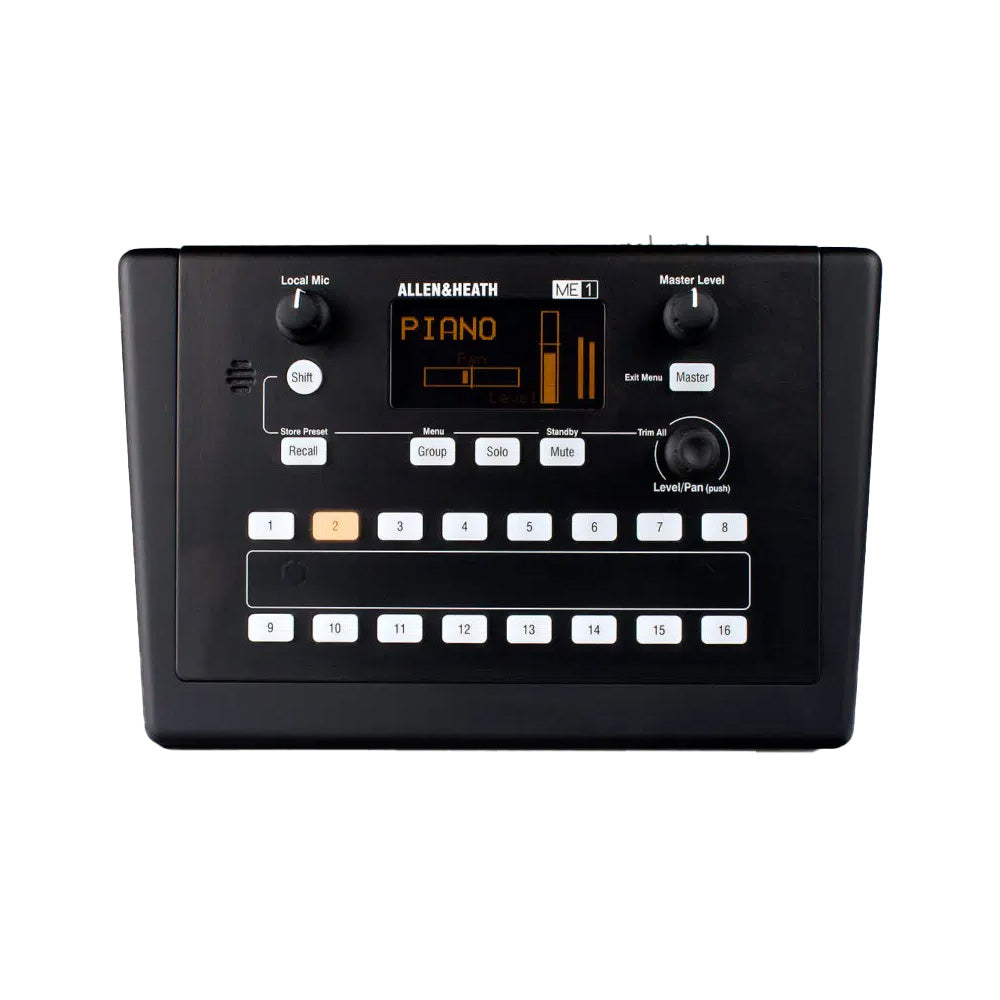

The uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1. Sound Design
The included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.
Audio First Designed for Performers
The top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.
An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
DESCRIPTION
ME-1 is probably the most sophisticated personal monitor mixer on the market, giving precision control over up to 40 channels to satisfy the most demanding ears.
Musician Friendly Powerful Yet Easy To UseThe uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1. Sound Design
- Powerful, Clear Sound
The ME-1 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears. - Protect Your Ears
The integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.
The included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.
Audio First Designed for Performers
The top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.
An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.
FEATURES
- 40 Inputs With Level and Pan Control
- Dimmable OLED Screen
- 16 Assignable Keys
- 3.5mm and 1/4” Headphone Outputs
- Master 3-Band EQ and Limiter
- Solo and Mute Keys
- Aux Input for MP3 Players, Click Tracks etc
- Built-in Signal Generator
- Mains or PoE Powered
- Daisy Chain or Use Standard PoE Ethernet Hubs
- Mic Stand Bracket and Headphone Hanger Included

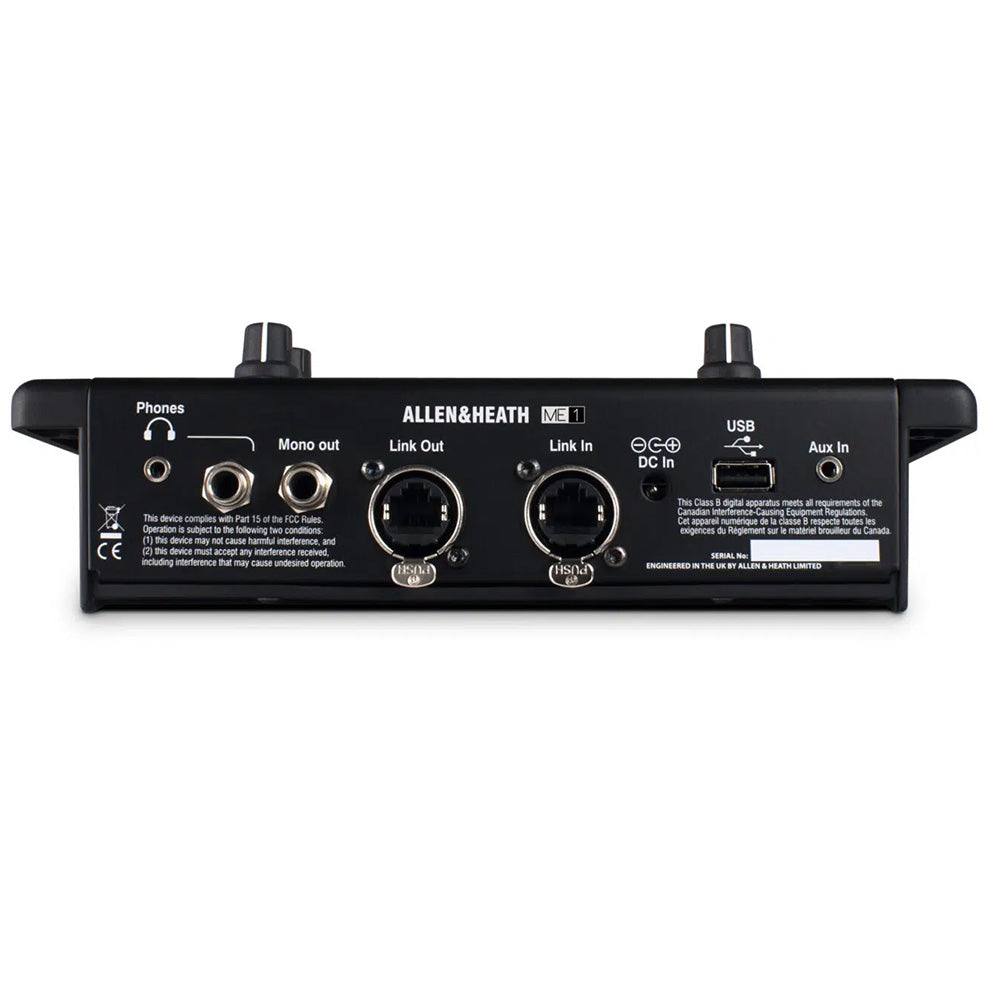

SPECIFICATIONS
- Type: Personal Mixer
- Compatibility: Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub)
- Number of Ports: 1 x Link In, 1 x Link Out
- Connection Type: EtherCon
- Input Channels: 40
- Analog Inputs: 1 x 1/8" (aux in)
- Analog Outputs: 1 x 1/4" TRS (mono)
- Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
- Data I/O: 1 x USB Type A
- Form Factor: Desktop
- Power Source: 12V DC power supply / PoE support
- Height: 2.2"
- Width: 9"
- Depth: 6.3"
- Weight: 2.4 lbs.
- Manufacturer Part Number: AH-ME-1
Allen & Heath ME-1 Personal Monitor Mixer
Regular price
$799.99
FINANCE WITH SYNCHRONY:
$799.99
Adding product to your cart
SPECIFICATIONS:
-
SKU:
AH-ME-1
- Vendor:
- Product type:
- DESCRIPTION
- FEATURES
- SPECIFICATIONS
DESCRIPTION
ME-1 is probably the most sophisticated personal monitor mixer on the market, giving precision control over up to 40 channels to satisfy the most demanding ears.
Musician Friendly Powerful Yet Easy To UseThe uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1. Sound Design
- Powerful, Clear Sound
The ME-1 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears. - Protect Your Ears
The integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.
The included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.
Audio First Designed for Performers
The top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.
An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.
FEATURES
- 40 Inputs With Level and Pan Control
- Dimmable OLED Screen
- 16 Assignable Keys
- 3.5mm and 1/4” Headphone Outputs
- Master 3-Band EQ and Limiter
- Solo and Mute Keys
- Aux Input for MP3 Players, Click Tracks etc
- Built-in Signal Generator
- Mains or PoE Powered
- Daisy Chain or Use Standard PoE Ethernet Hubs
- Mic Stand Bracket and Headphone Hanger Included
SPECIFICATIONS
- Type: Personal Mixer
- Compatibility: Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub)
- Number of Ports: 1 x Link In, 1 x Link Out
- Connection Type: EtherCon
- Input Channels: 40
- Analog Inputs: 1 x 1/8" (aux in)
- Analog Outputs: 1 x 1/4" TRS (mono)
- Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
- Data I/O: 1 x USB Type A
- Form Factor: Desktop
- Power Source: 12V DC power supply / PoE support
- Height: 2.2"
- Width: 9"
- Depth: 6.3"
- Weight: 2.4 lbs.
- Manufacturer Part Number: AH-ME-1
