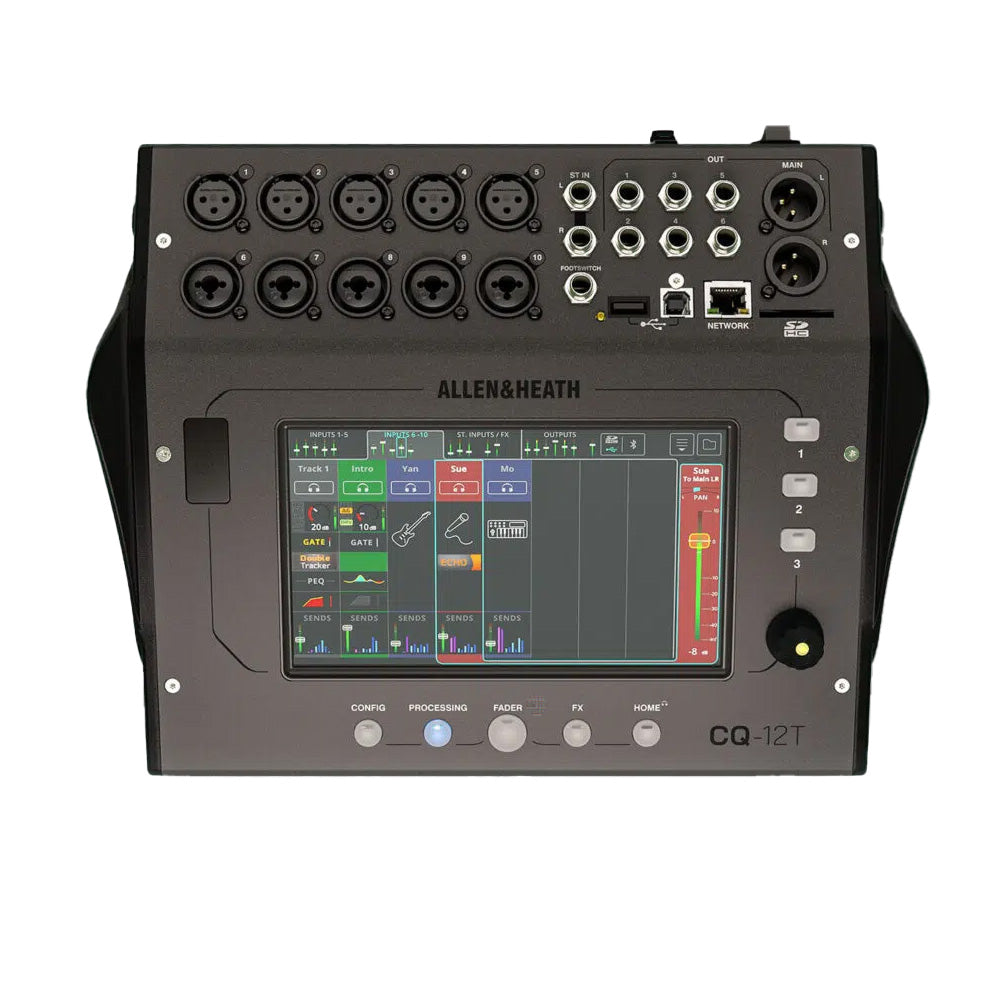

• 10 Mic/Line In, Two 1/4" Balanced TRS In

• Two XLR Main Out, Six 1/4" Mix Out

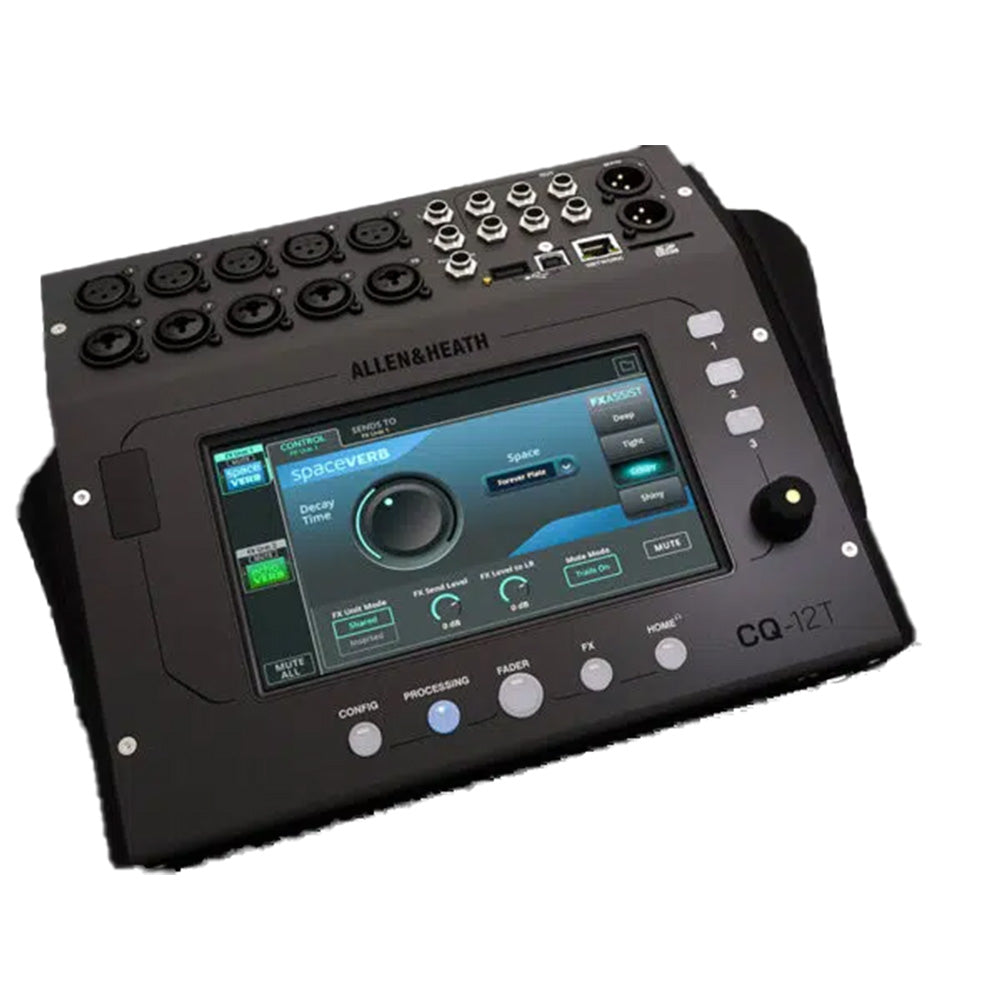

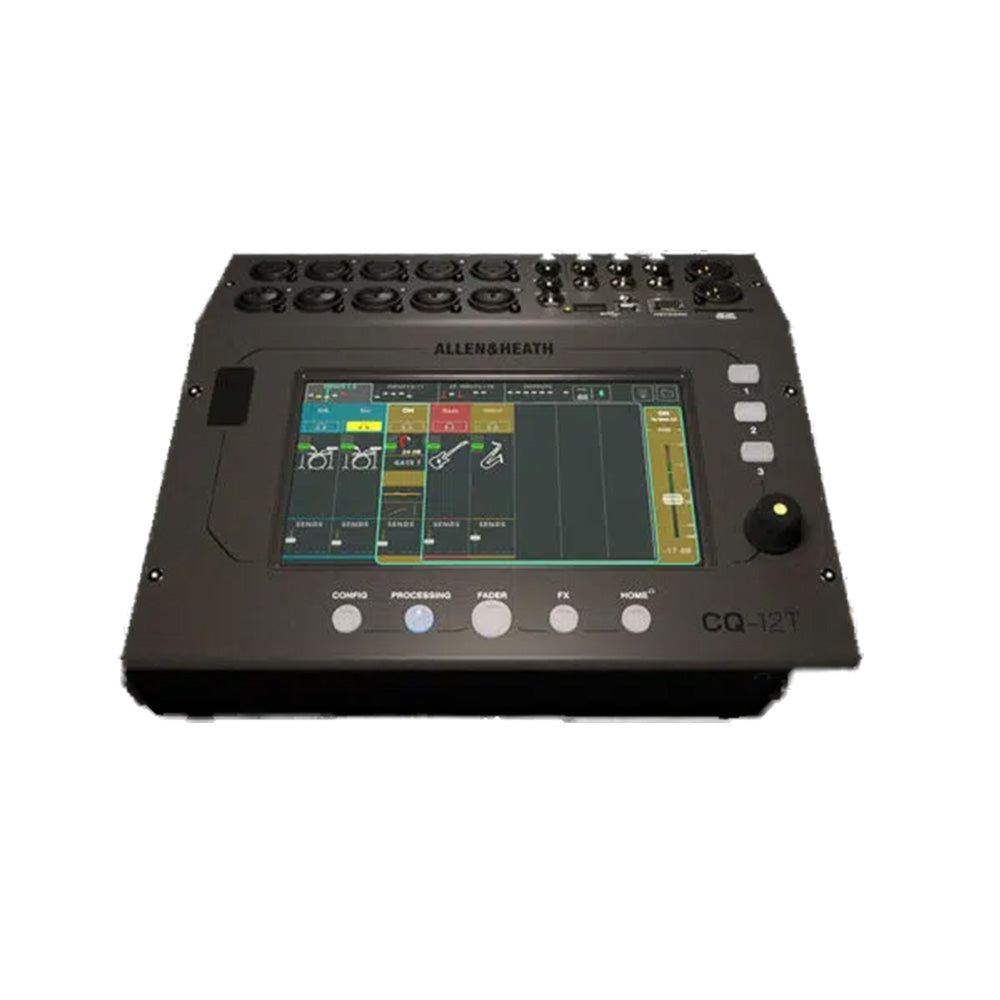

• 7" Capacitive Touchscreen Interface

• 16x18 USB-B Audio Interface

• 16x18 Multitrack Rec/Playback via SD

• Stereo USB Rec/Playback

• CQ-MixPad Control App

• 96 kHz FPGA Processor with Built-In FX
• AMM, Feedback, FX Assist Engines

• 10 Mic/Line preamps, (5 x XLR and 5 x XLR/TRS Combo)
• Balanced stereo line input, (2 x 1/4" TRS)
• Main LR, (2 x XLR)
• Six monitor mixes, (6 x 1/4" TRS)
• Assignable headphone output, (1/4" TRS)
• 16x18 USB-B interface
• 16x18 SD record/playback
• Stereo USB record/playback with dedicated input channel
• Stereo Bluetooth playback with dedicated input channel
• Two FX Assist engines
• Three custom Softkeys
• Dual footswitch connection
• 7" capacitive touchscreen with associated rotary control

96 kHz Processing Engine

• Under the hood is a powerhouse of processing with Allen & Heath’s renowned 96 kHz FPGA technology, including brand-new smart tools and FX to get you a better mix, faster.

Quick and Complete Channels

• Quick Channels offer instrument and application specific processing. Dial in a full channel of processing with a single knob. Switch to a Complete Channel for advanced tweaking.

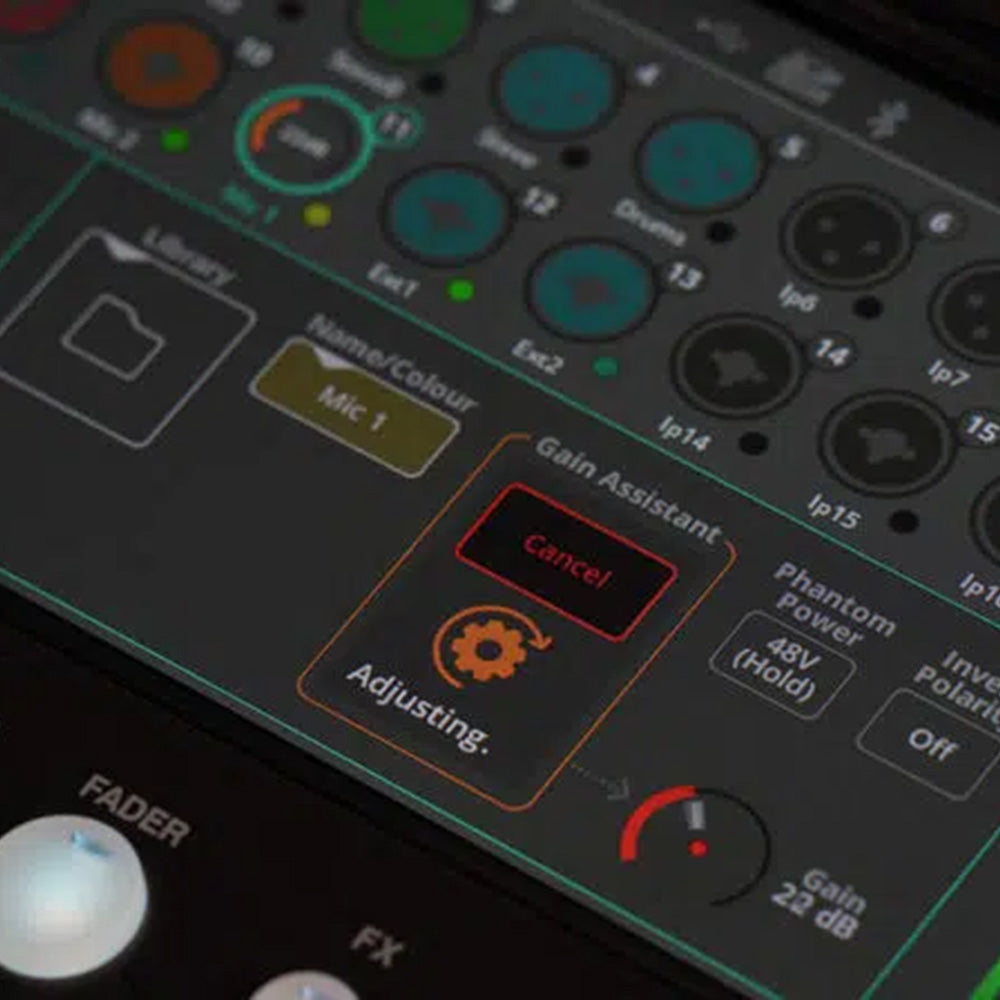

Gain Assistant

• CQ’s gain assistant saves you time by automatically and accurately setting preamp gain for you. It can then keep an eye on your preamp levels to prevent nasty peaks.

Feedback Assistant

• Find and remove feedback frequencies at setup using Fixed mode, and then watch out for feedback throughout the show across all outputs with Live mode.

FX Assist engines

• Including brand-new signal-conscious reverb and delay units, which dynamically respond to signal to always sit correctly in the mix.

AMM

• Improve clarity and reduce background noise for speech applications without needing to lift a finger. Available on every input.

Remote Apps

• Control the mixer from (almost) anywhere with a free app for Windows, Mac, Android, and iOS. CQ-MixPad gives the engineer complete control from anywhere in the room, and CQ4You allows a performer to adjust only their mix and hear exactly what they need to hear.

• Max I/O Capacity: 12x Input / 6x Output
• Number of Analog Input Channels: 12
• Number of Mic Preamps: No
• Number of Analog Output Channels: 8
• Faders & Level Adjustment: No
• Built-In Effects: 2x Stereo Effect (Type Unspecified)

• 5x XLR 3-Pin Balanced Mic/Line Input
• 5x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
• 2x 1/4" TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair)

• 2x XLR 3-Pin Stereo Main Output (1 Stereo Pair)
• 6x 1/4" TRS Balanced/Unbalanced Mix Output
• 1x 1/4" TRS Unbalanced Stereo Headphone Output

• 1x USB-A (Audio Playback, Audio Streaming, External Memory, Service)
• 1x USB-B 2.0 (Host Connection)

• Bluetooth
• *Built-In

• Max I/O Capacity: 12x Input / 6x Output
• Number of Analog Input Channels: 12
• Number of Mic Preamps: No
• Number of Analog Output Channels: 8

• 1x Stereo Main LRC
• 6x Mono Bus

• Groups: No
• Presets: No
• Display: 7" Touchscreen (Backlit)
• Faders & Level Adjustment: No

• Input Polarity : Normal/Reverse
• Dynamic Processing: Compressor, Gate
• Solo/Mute: Solo, Mute per Input Channel, Bus, Master
• Built-In Effects: 2x Stereo Effect (Type Unspecified)
• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz

• 5x XLR 3-Pin Balanced Mic/Line Input
• 5x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
• 2x 1/4" TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair)

• 2x XLR 3-Pin Stereo Main Output (1 Stereo Pair)
• 6x 1/4" TRS Balanced/Unbalanced Mix Output
• 1x 1/4" TRS Unbalanced Stereo Headphone Output

• Phantom Power: +48 V
• Digital I/O: 1x RJ45 (Network)
• MIDI I/O: No

• 1x USB-A (Audio Playback, Audio Streaming, External Memory, Service)
• 1x USB-B 2.0 (Host Connection)

• Bluetooth
• *Built-In

• Yes: Android & iOS
• App Name: CQ-MixPad
• Functionality: Access Stored Files, Adjust Settings, Remote Control

• Max Multitrack Recording: 16 Tracks
• Media Support: SD

• 12 VDC at 4 A
• 100 to 240 VAC, 50 / 60 Hz

• Rack Mountable: Yes
• Rackmount Size: 6 RU (with Non-Included Hardware)
• Dimensions: 11.4 x 9.5 x 3.5" / 29 x 24.2 x 8.8 cm
• Weight: 5.3 lb / 2.4 kg

• Package Weight: 9.025 lb
• Box Dimensions (LxWxH): 14.5 x 12 x 7.7"
