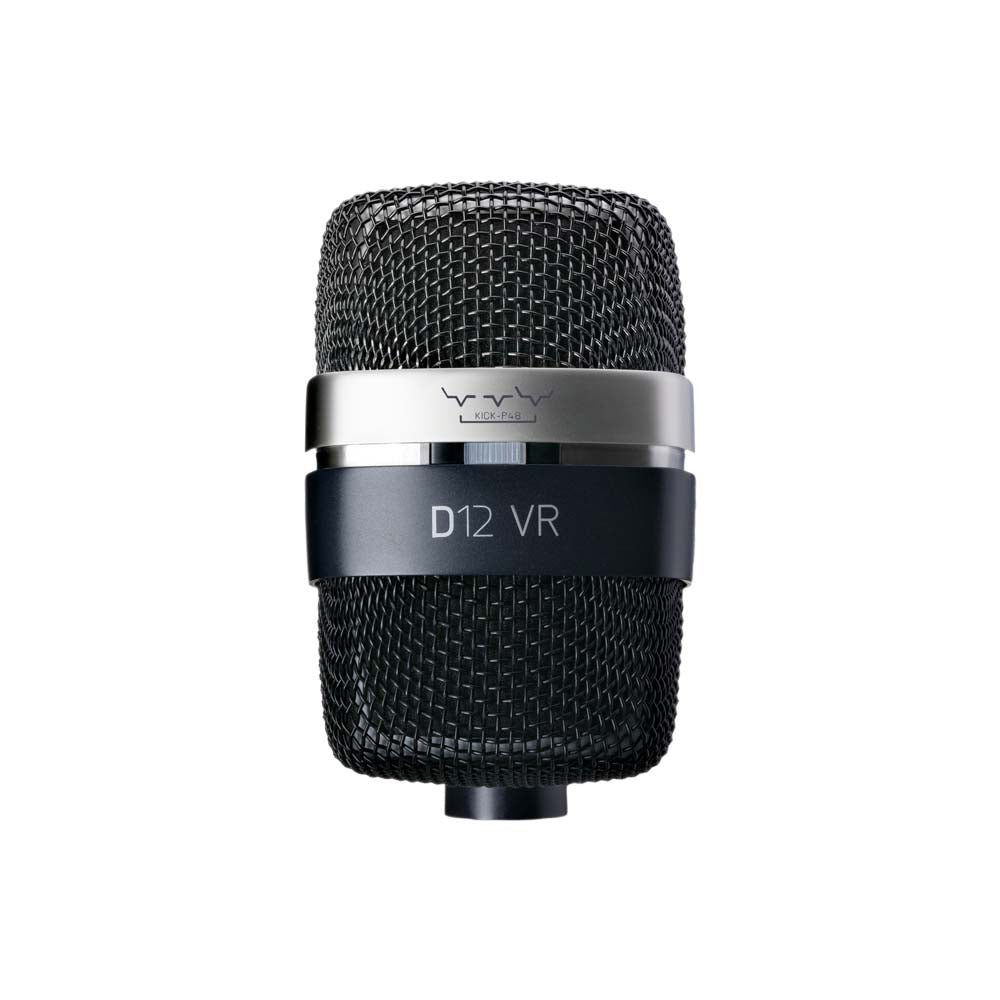

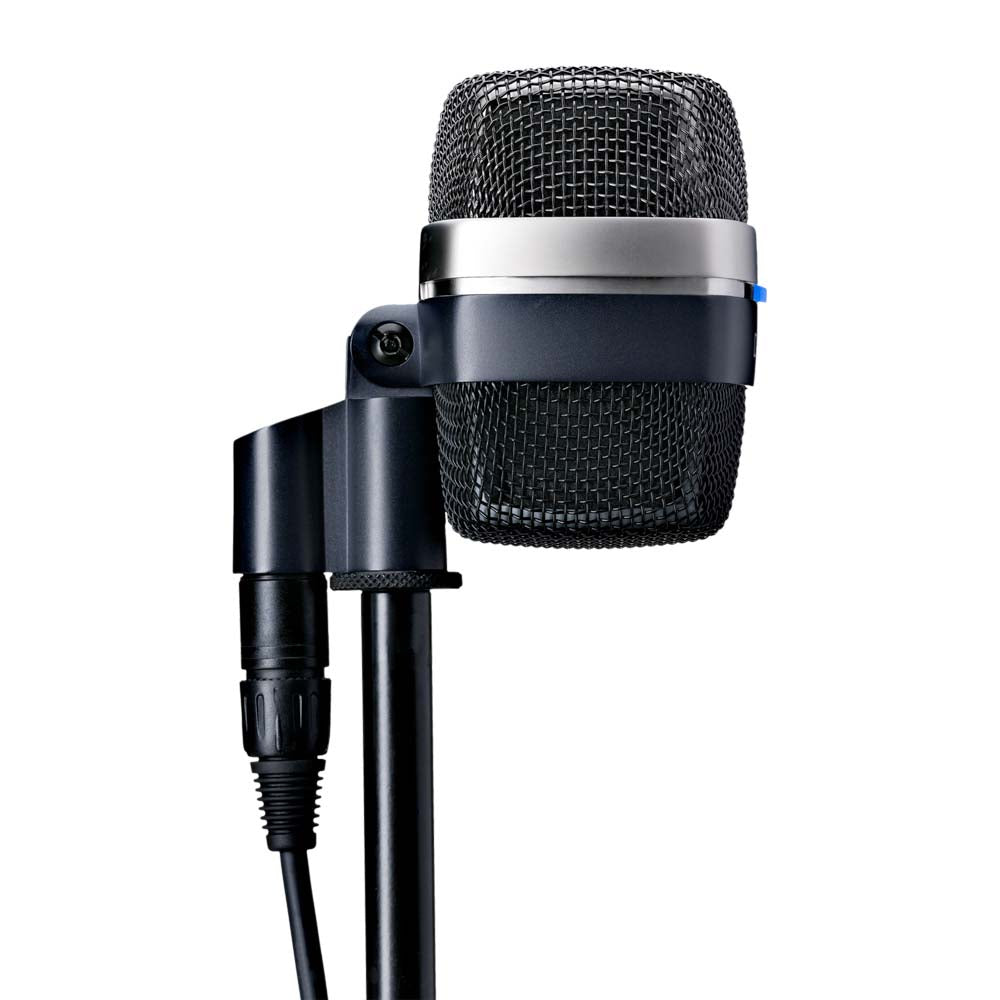

The D12 VR is a reference large-diaphragm dynamic microphone with cardioid polar pattern. Designed specifically for kick-drum recording applications, the microphone has a thin diaphragm to enhance the low frequency performance. Its warm sound is realized by the original C414 transformer, especially impressive at high signal levels. The D12 VR features three active filter presets to match its sound shape with the kick drums character. When activated, the output level is automatically reduced by 10 dB. The filter settings can be controlled using a switch on the microphone body. Without phantom power, the microphone operates in passive mode and delivers the instruments pure sound.

General Specifications

• Polar: PatternCardioid
• Audio frequency bandwidth: 17 - 17000 Hz
• Sensitivity: 1.2 mV/Pa
• Electrical impedance: 200 Ohms
• Recommended load impedance: 1000 Ohms
• Maximum SPL for 0.5% THD: 164dB SPL

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Dimensions

• Length: 101 mm
• Width: 66 mm
• Height: 125 mm
• Diameter: 66 mm
• Net Weight: 500 g

Design

• Body: Metal
• Finish: Galvanized nickel matte/black

Application

• Pro Studio: Yes
• Live Instrument: Yes

Instrument

• Drums / Percussion: Yes
