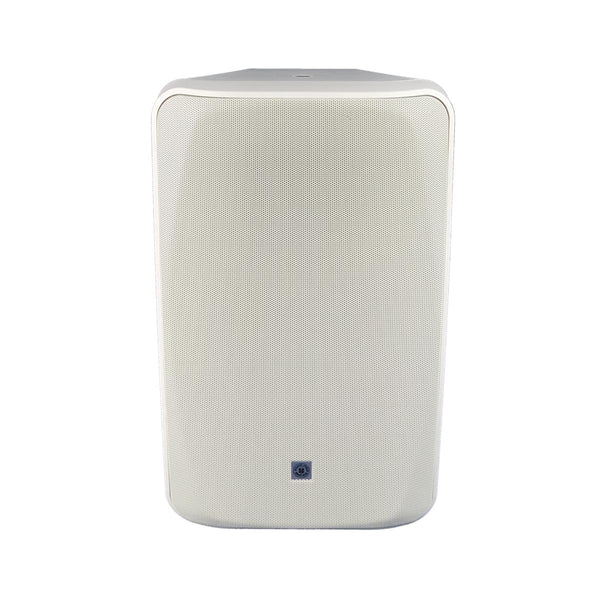

Name: Topp Pro INSTALL WRS-8W 2-Way Passive Speaker Cabinet
Brand: Topp Pro
SKU: WRS-8W
Price: 159.0 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

SPECIFICATIONS

Model WRS-8 / WRS-8W
System Type 2-Way Passive Speaker Cabinet
Standard Loudspeaker for voice alarm systems for fire detection and fire alarm system
Environment Type Type B (Outdoor applications)
Transducer Low 8" ferrite woofer, 1,2" voice coil
Transducer Driver 1" Neodymium Tweeter
Rated Noise Power 80W (100V and 70V line)
Rated Impedance 100V line: 125Ω (80W) / 250Ω (40W) / 500Ω (20W) / 1.0kΩ (10W) 70V Line: 62Ω (80W) / 125Ω (40W) / 250Ω (20W) / 500Ω (10W) Bypass: 8 Ohms
Sensitivity 500Hz-5kHz pink noise: 87dB (1W, 1m) 100Hz-10kHz pink noise, according to EN54-24: 75dB (1W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 87dB (1W, 1m)
Max SPL 100Hz-10kHz pink noise, according to EN54-24: 92dB (80W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 105dB (80W, 1m)
Coverage Angle (H x V) 500Hz: 162° x 140° / 1kHz:114° x 123° / 2kHz: 171° x 52° / 4kHz: 131° x 97°
Protection Rate IP55
Cable Connection Steatite terminal x 2 speaker cable (Ø 6.6mm)
Finish Enclosure : ABS + PC / Mesh speaker grill : surface-treated steel plate Speaker Wall bracket: surface-treated steel plate, painted joint bracket, screw and stainless steel cable
Dimensions (HxWxD) 406 x 250 x 251 mm / 16” x 9.8” x 10”
Net Weight 6.4 kg (14.1 lbs)
