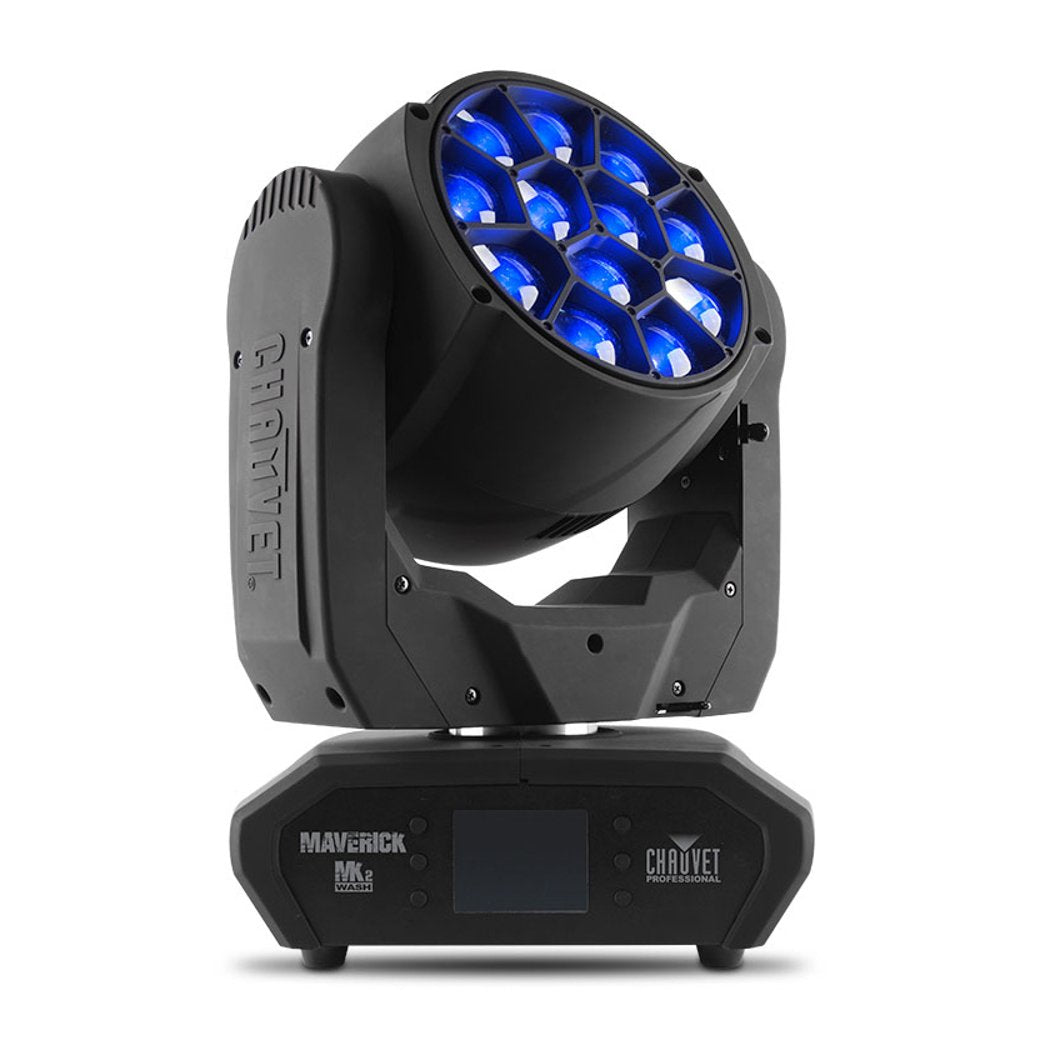

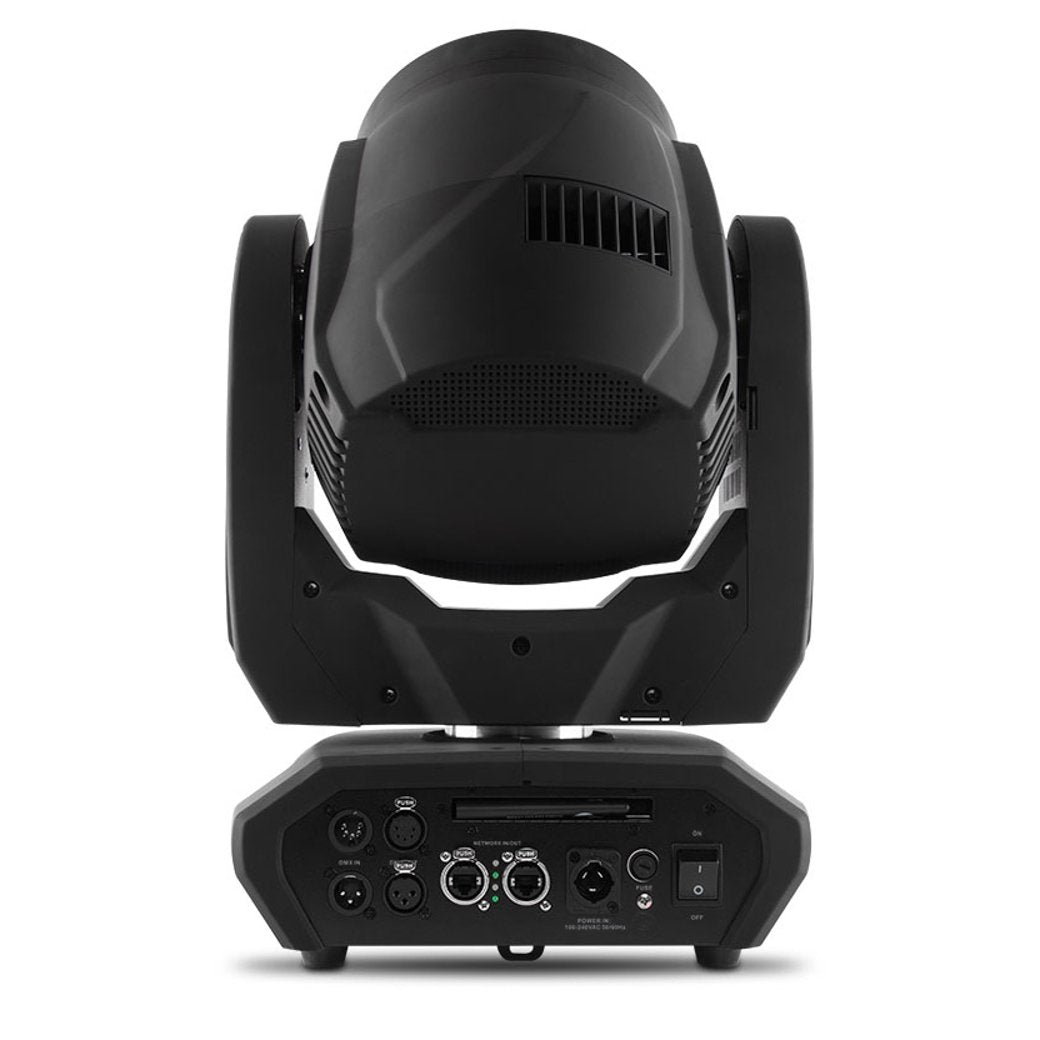

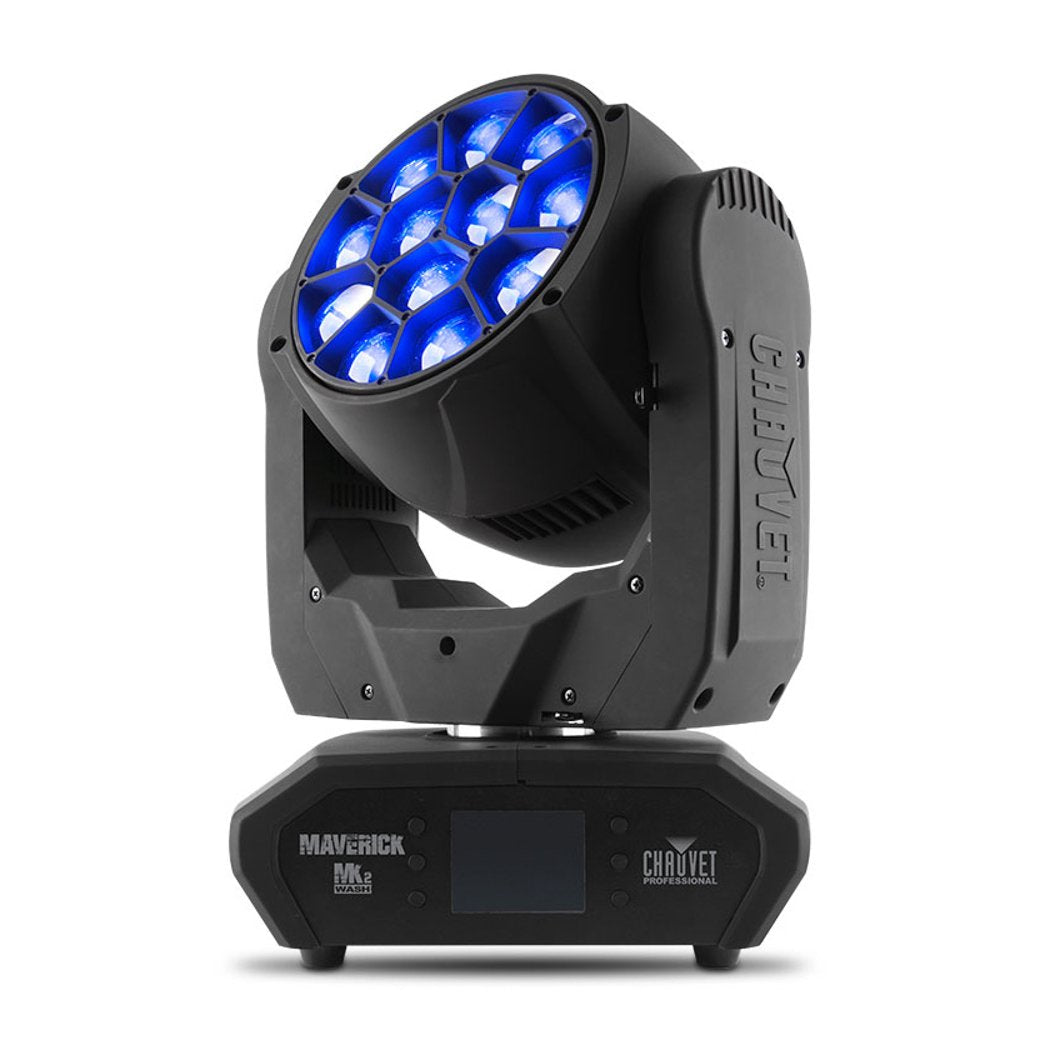

Name: Chauvet Maverick MK2 Wash LED Moving Head
Brand: Chauvet
SKU: MAVERICK MK2 WASH
Price: 3112.5 USD
Availability: InStock

Chauvet Maverick MK2 Wash LED Moving Head-lighting-Chauvet- Hermes Music

Roll over image to zoom in Click on image to zoom

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DESCRIPTION
CHARACTERISTICS

DESCRIPTION

Maverick MK2 Wash rewrites the rules on wash fixtures with its flawlessly even output, custom designed optics, full pixel mapping, virtual gobo wheel with background colors, pre-programmed colors and 7° – 49° zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease. Take control with DMX, sACN, Art-Net, Kling-Net or W-DMX.

Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Virtual Color wheel with instantaneous access to 21 colors
Built in colors for quick design possibilities
Built in virtual gobo wheel with background colors for impressive atmospheric effects fast movement of pan, tilt, and zoom
Quiet operation for a wide range of installation situations
DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
7° - 49° Zoom angle for variable beam sizes
True 1 compatible power input
Battery backup display with auto rotate depending on fixture orientation

CHARACTERISTICS

OPTICAL

Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 5° to 36°
Field Angle: 7° to 49°
Zoom Angle: 7° to 49°
Lumens – Source: 8,800
Lumens – Output: 5,900
Illuminance (7°): 19,000 lux @ 5 m
Illuminance (49°): 800 lux @ 5 m
PWM Frequency: 600 Hz, 1,200 Hz, 2,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL

Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
Weight: 32.8 lb (14.8 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
DMX Channels Single Mode: 20, 69, 115
DMX Channels Dual Mode – Function: 8, 20, 26
DMX Channels Dual Mode – Pixel: 36, 48, 60
Art-Net Channels Single Mode: 20, 69, 115
Art-Net Channels Dual Mode – Function: 8, 20, 26
Art-Net Channels Dual Mode – Pixel: 36, 48, 60

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Power and Current: 651 W, 5.51 A @ 120 V, 60 Hz
Power and Current: 629 W, 3.03 A @ 208 V, 60 Hz
Power and Current: 609 W, 2.53 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET
IP Rating: IP20, dry location

WHAT'S INCLUDED

MK2 Wash
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP rated Seetronic Powerkon extensions
DMX cables
