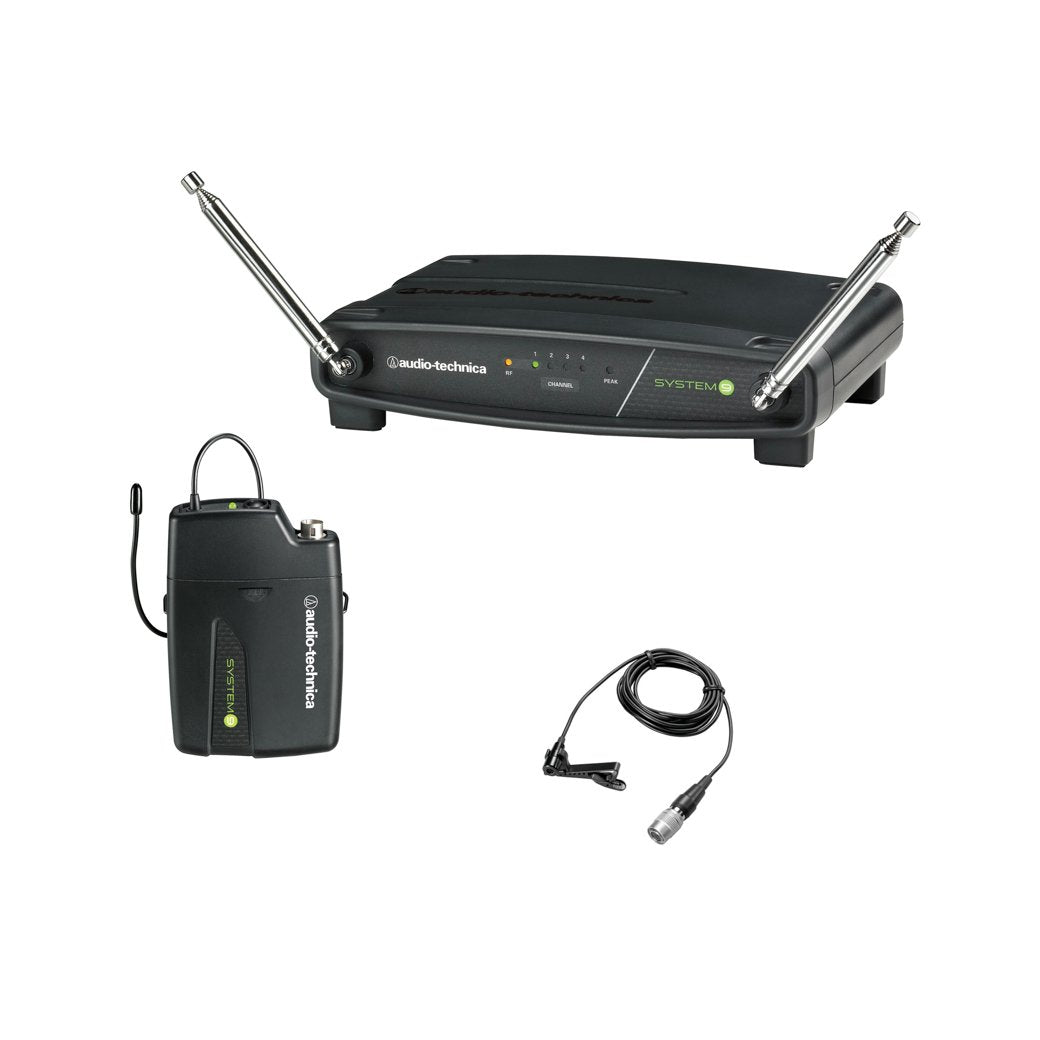

ATW-R900a receiver and ATW-T901a body-pack transmitter with omnidirectional Lavalier microphone.
Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 is available in handheld, head-worn, guitar, lavalier, and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).
Each System 9 configuration includes the ATW-R900a receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900a is a non-diversity, single-channel receiver with an advanced dipole antenna design for an extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF, and Power indicator lights.
- Easy operation and clear, natural sound quality
- 4 selectable frequency-coordinated VHF channels
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
CHARACTERISTICS
OVERALL SYSTEM SPECIFICATIONS
-
Operating Frequencies: VHF high-band, 169 MHz to 172 MHz
-
Modulation Mode: FM
-
Maximum Deviation: +/-10 kHz
-
Dynamic Range: >/=90 dB (A-weighted), typical
-
Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
-
Operating Range: 200' (60 m) typical Open range environment with no interfering signals
-
Operating Temperature Range: 40° F (4° C) to 110° F (43° C) Battery performance may be reduced at very low temperatures
-
Frequency Response: 80 Hz to 13 kHz
-
Maximum Simultaneous Use (Recommended): 200' minimum
RECEIVER SPECIFICATIONS
-
Receiving System: Non-diversity, single-channel, dual antenna system
-
Image Rejection: 50 dB minimum
-
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
-
Audio Output: Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
-
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
-
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
-
Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
-
Net Weight: 12.0 oz (337 grams)
-
Accessory Included: Power supply

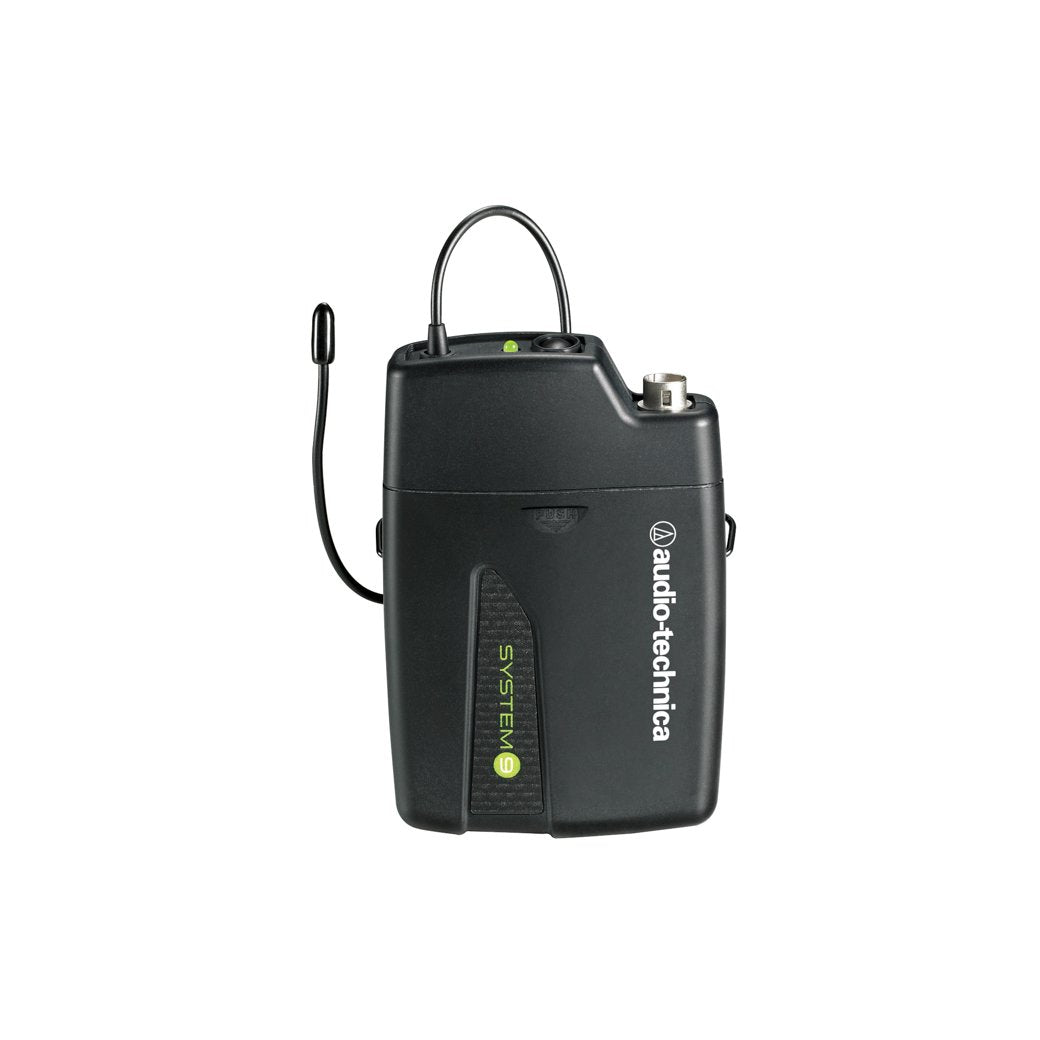

BODY-PACK TRANSMITTER SPECIFICATIONS
-
RF Power Output: 10 mW
-
Spurious Emissions: Following federal and national regulations
-
Input Connections : Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
-
Batteries : Two 1.5V AA not included
-
Battery Life: 8 hours (alkaline) Depending on battery type and use pattern
-
Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
-
Net Weight: 2.8 oz (80.0 grams) without batteries
